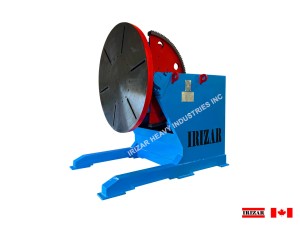

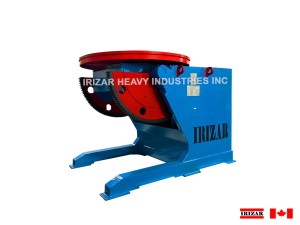

Irizar Heavy Industries Inc. is a Canadian company based in Edmonton. We take pride in manufacturing and stocking Welding Positioners, also known as Weld Positioners. These devices move the workpiece under the welding process equipment, whereas Welding Manipulators move the equipment over the workpiece. The Positioner offers powered 360° variable-speed rotation and table tilt, ranging from horizontal to 120°.
Frequently Asked Questions (FAQ), Knowledge Base (KB), Quality Assurance (QA)
Load Capacity:
10.0 MT @ 400 mm GC
8.00 MT @ 500 mm GC
6.60 MT @ 600 mm GC
5.70 MT @ 700 mm GC
5.00 MT @ 800 mm GC
4.40 MT @ 900 mm GC
4.00 MT @ 1000 mm GC
3.30 MT @ 1200 mm GC
2.80 MT @ 1400 mm GC
2.50 MT @ 1600 mm GC
2.20 MT @ 1800 mm GC
Specifications:
Eccentricity: 200 mm
Rotation speed: From 0.05 to 0.50 RPM
Tilt speed: From 0.024 to 0.24 RPM
Table diameter: 2,000 mm
Table with “T” shaped channels @ 45 degrees
Remote Control Box
Control Box: Forward/Stop/Reverse/Wireless Speed Adjustment with digital display
Foot control: Included
Max work piece diameter @ 90 degrees tilt: 3,200 mm
Tilt Angle: 0 to 120 degrees
Power Rotation: 3.00 kW
Power Tilt: 5.50 kW
Estimated Weight: 5.80 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time:

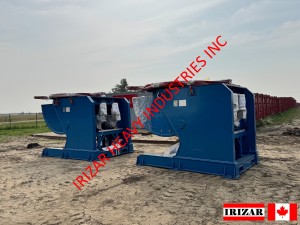

Two units Under Construction
Ready for shipping: September 15, 2025
Dual Power: 380/480 V, 50/60 Hz, 3P
Booking: 30% Down Payment, not refundable
