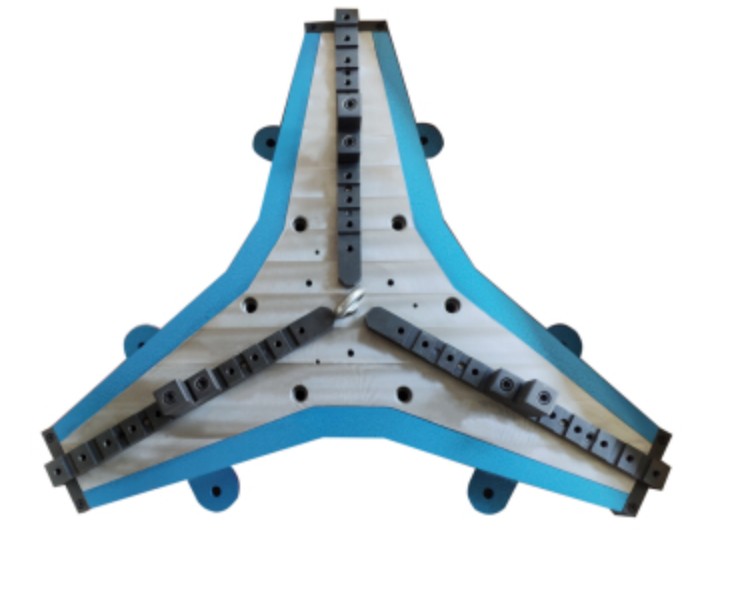

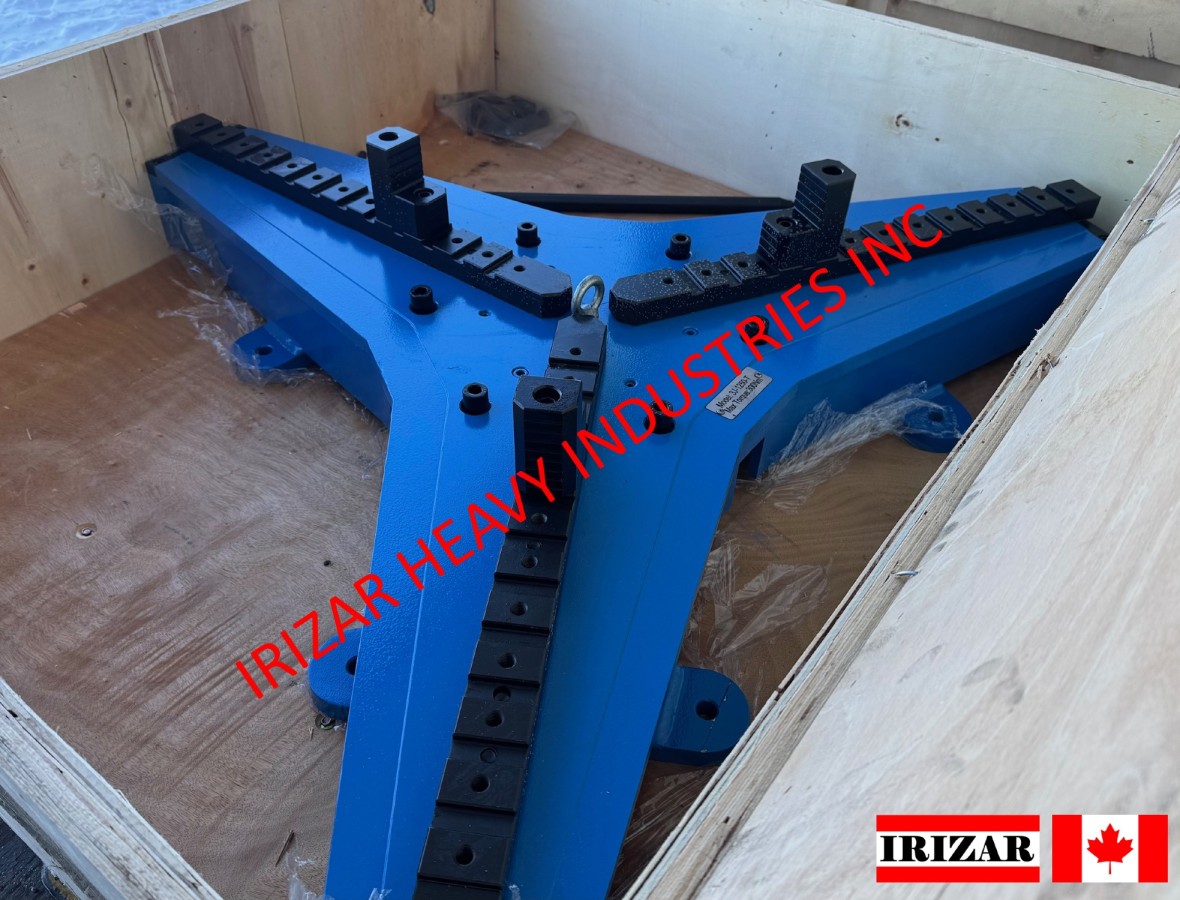

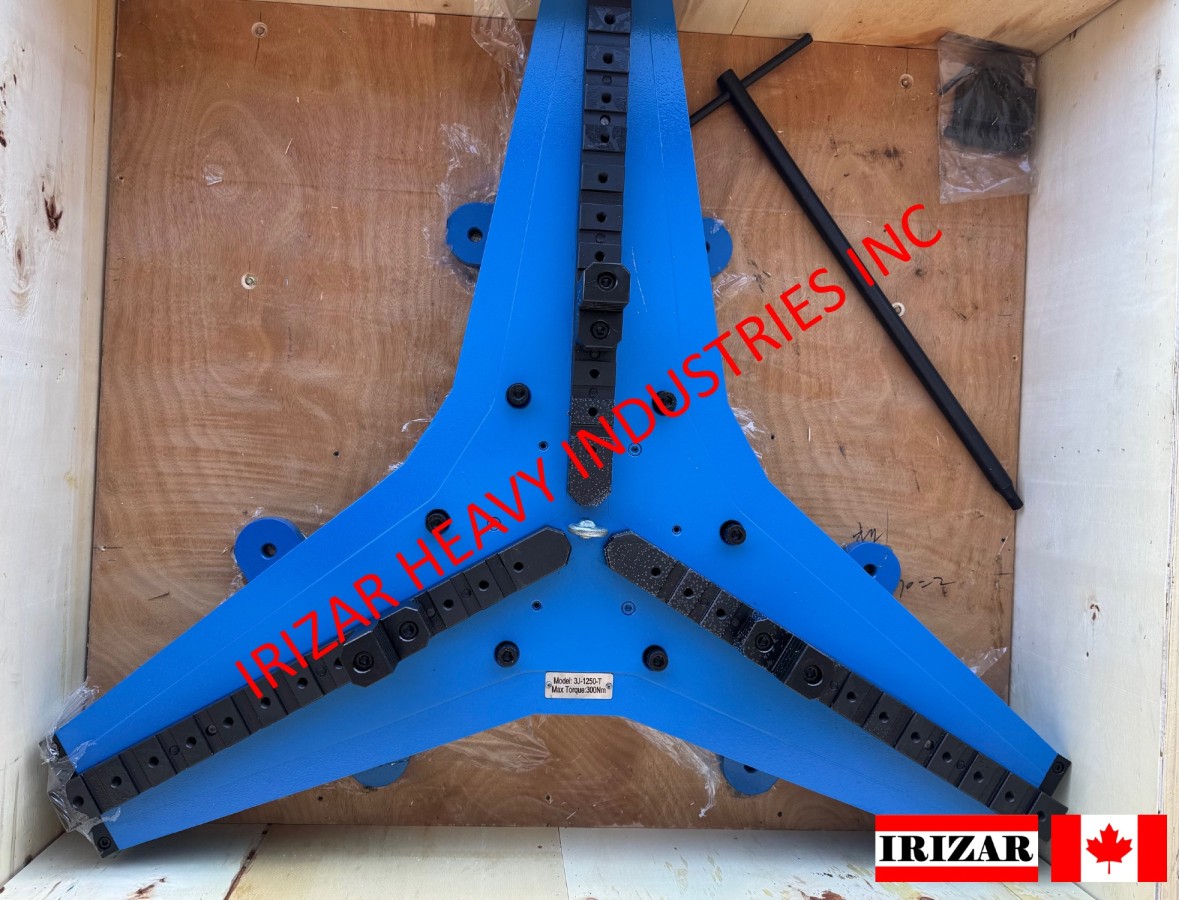

Three-Jaw Self-Centering Welding Gripper Chuck
Model 3J-1250-2T
Specifications:
Inner Jaw Clamping Range OD: 200 – 1010 mm
Outer Jaw Clamping Range OD: 340 - 1250 mm
Max load capacity: 2 MT @ 5” from table surface
Max In Torque (N-m): 300
Max Clamp Force (kN): 45
Mounting holes (mm): M16*150 @ Nos 6
Swing diameter: 1500 mm
Weight: 240 kg
Three-Jaw Self-Centring
Welding Gripper Chucks Models
Model 3J-615-1 MT: 85 to 615 mm Ø
Model 3J-1080-1 MT: 85 to 1,080 mm Ø
Model 3J-1250-2 MT: 200 to 1,250 mm Ø
Model 3J-1500-3 MT: 200 to 1,500 mm Ø
Notes:
1. Maximum torque allowed: Check the chuck's engraved information
2. Irizar Chucks are designed for welding at low speed, not for use on a lathe at high speed.
