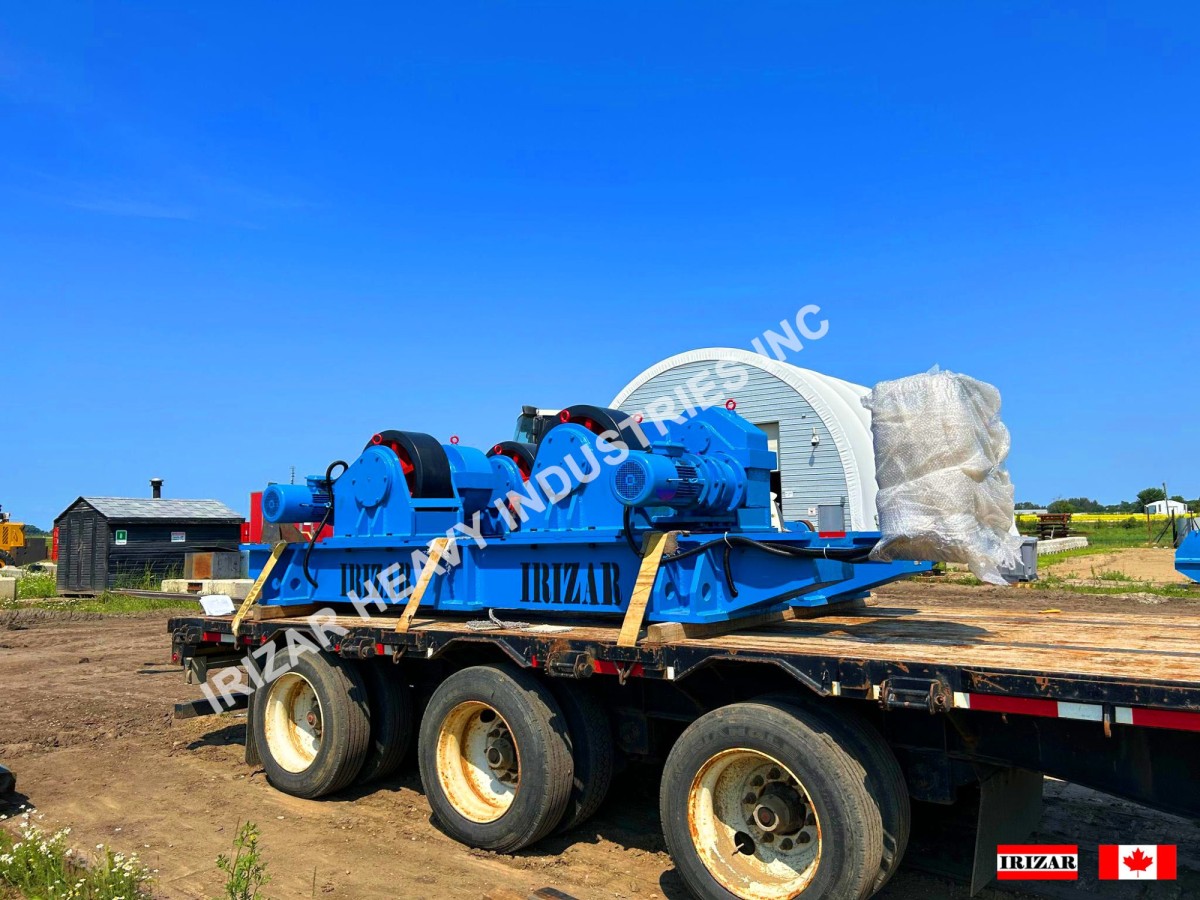

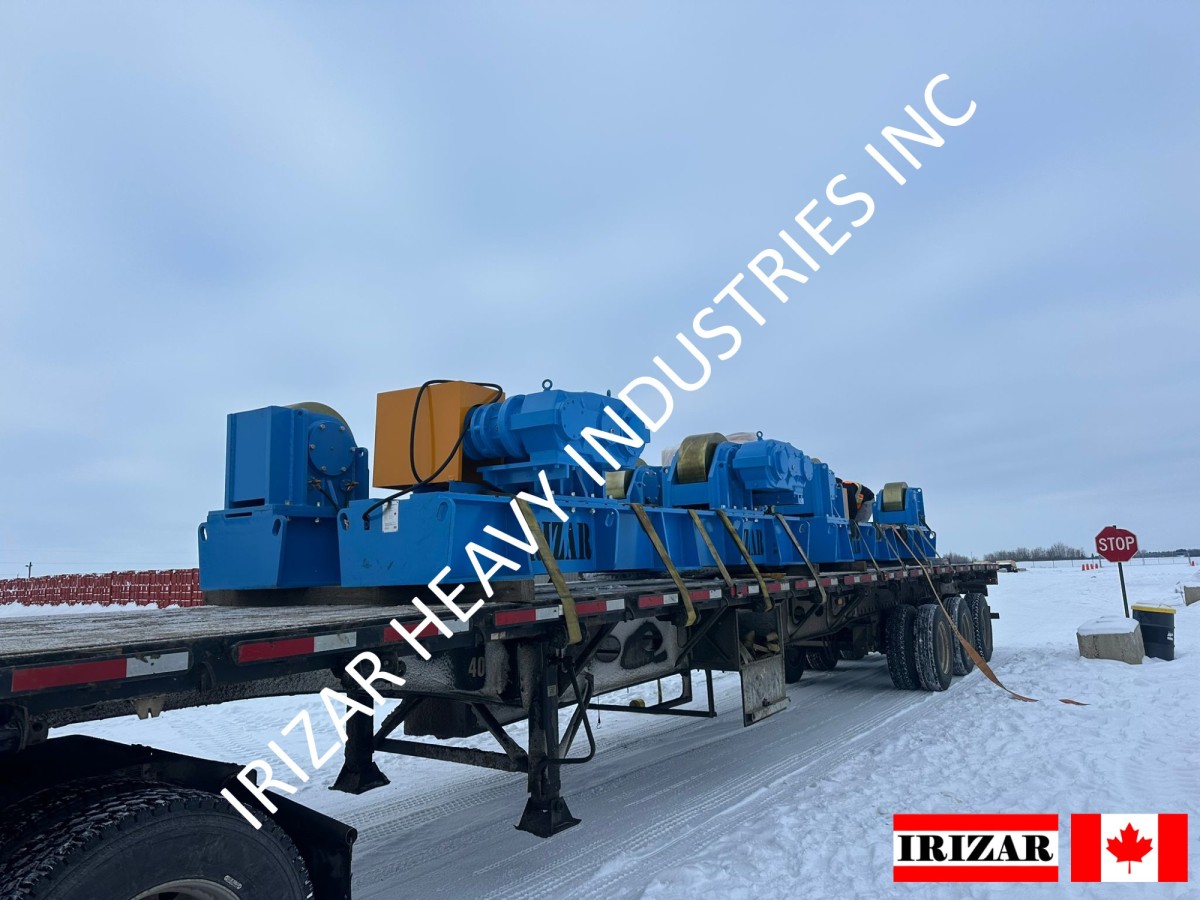

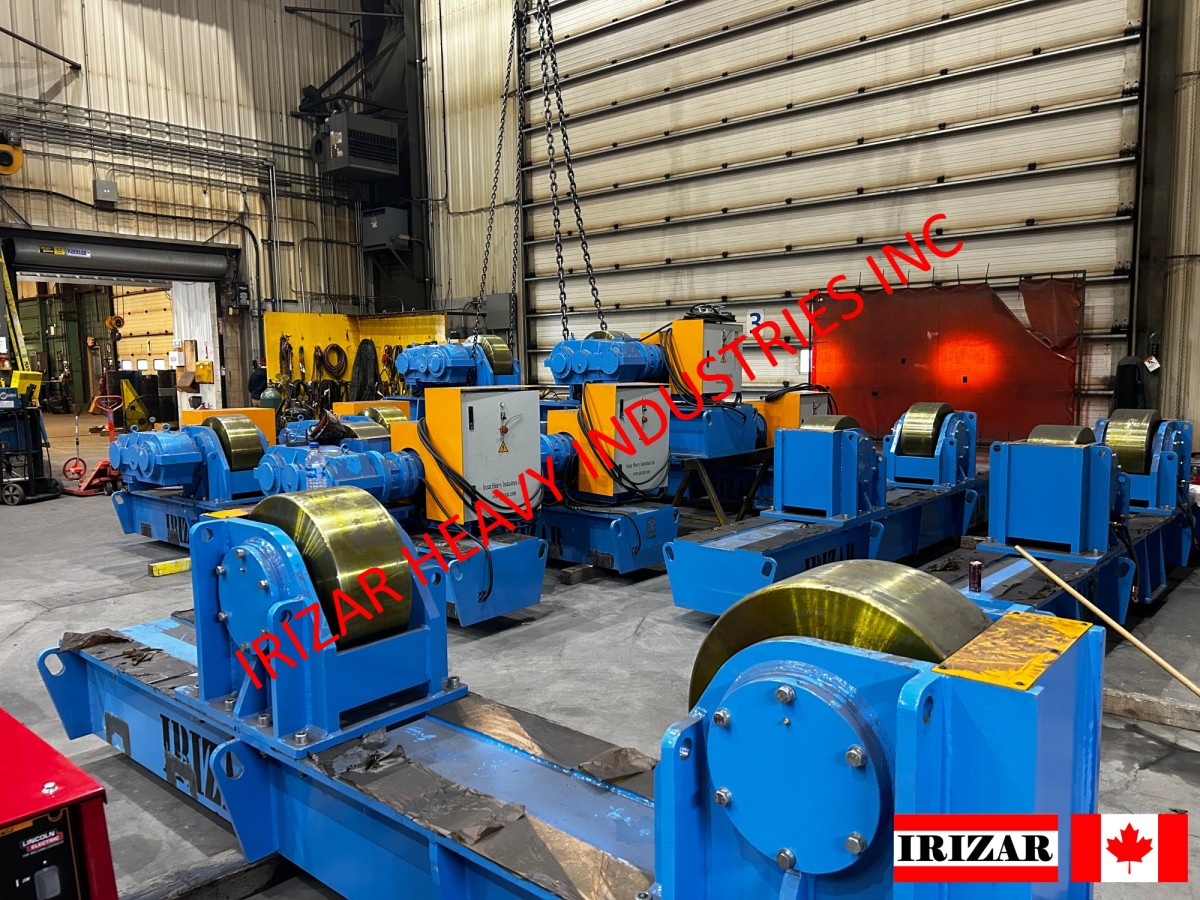

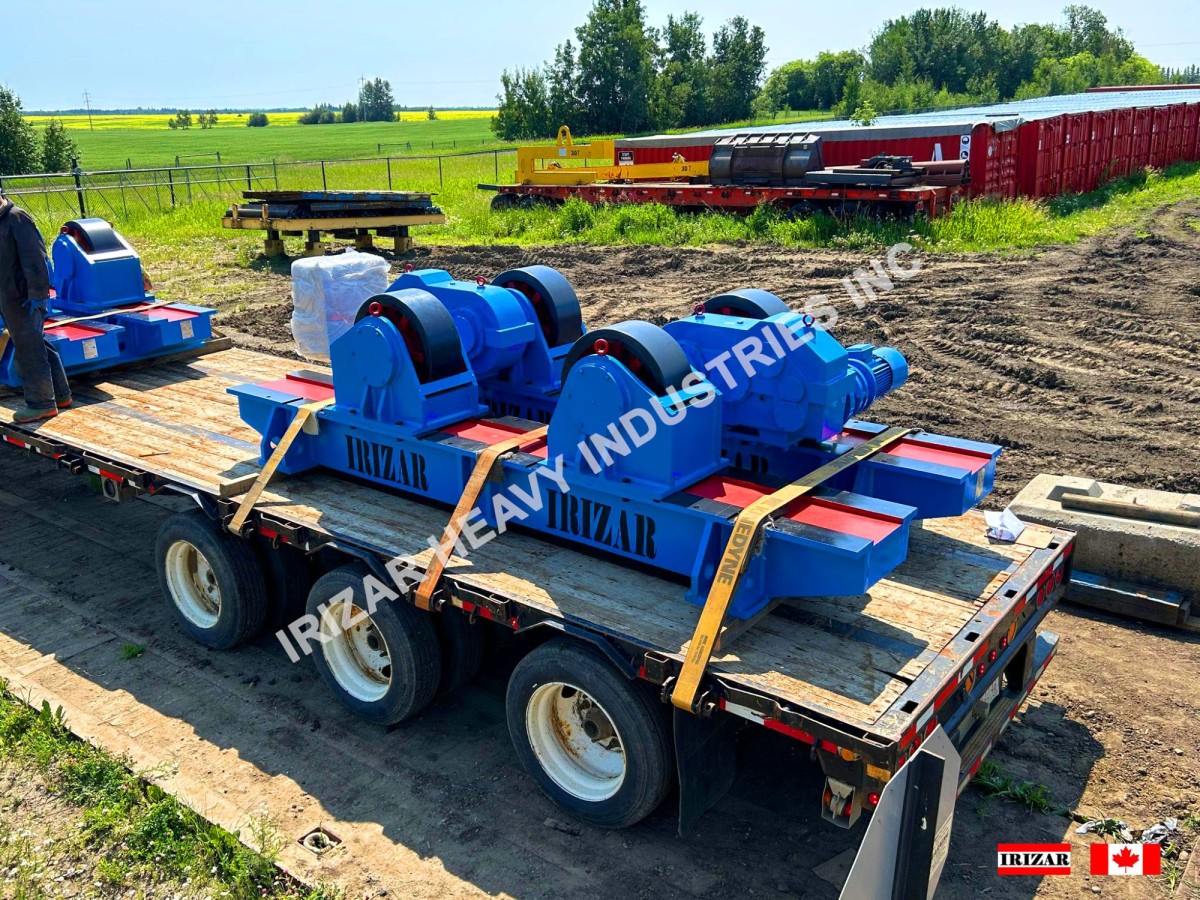

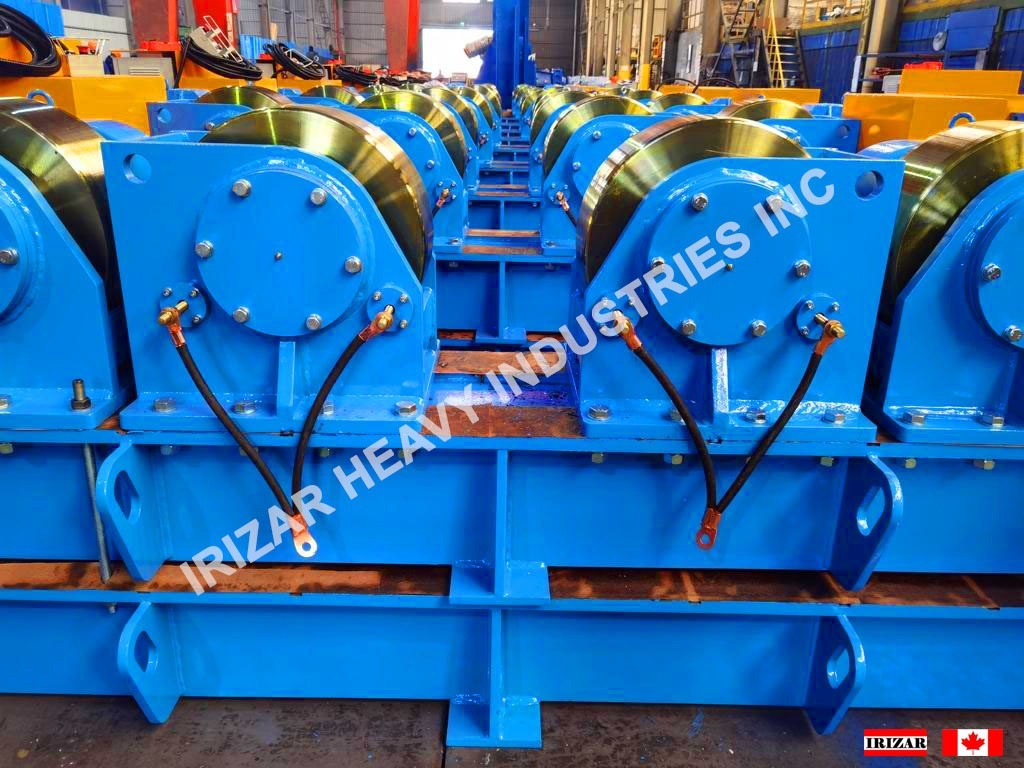

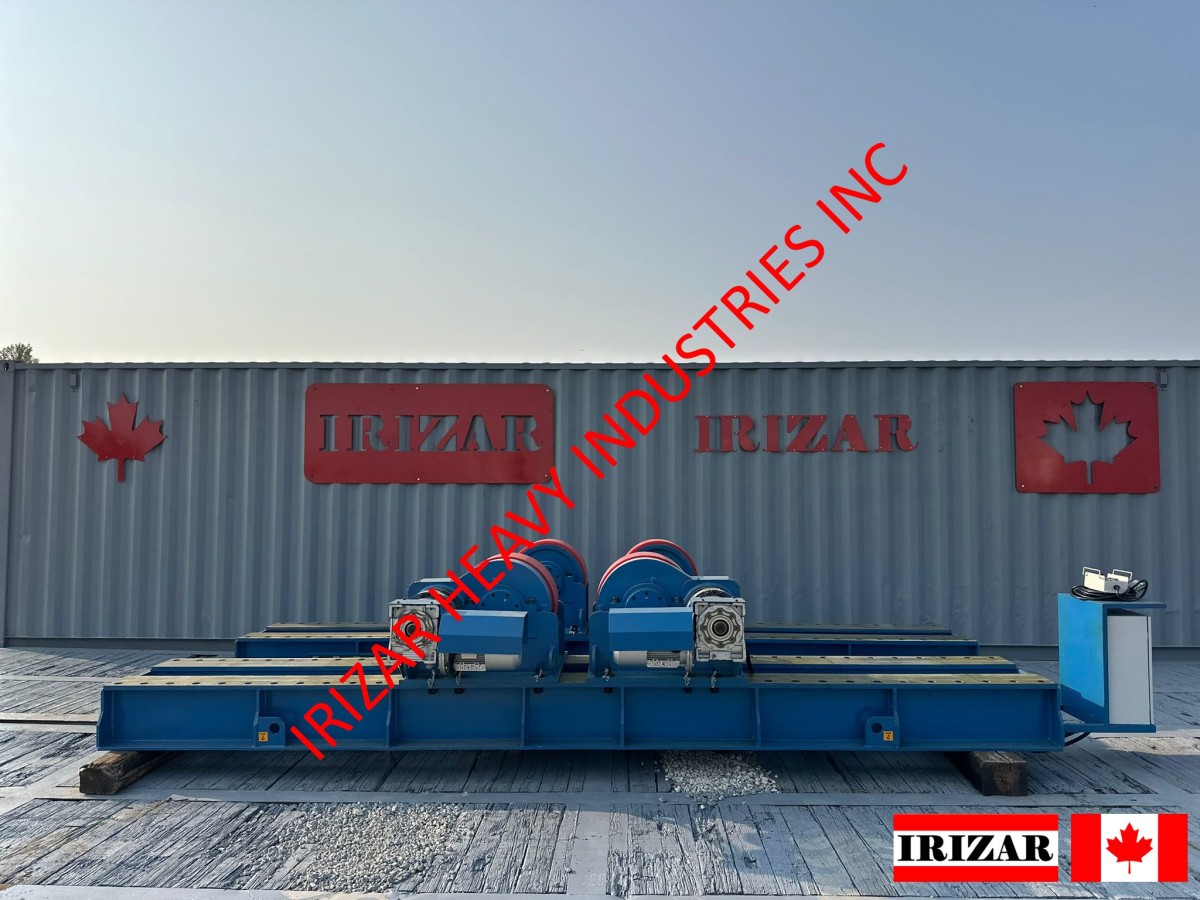

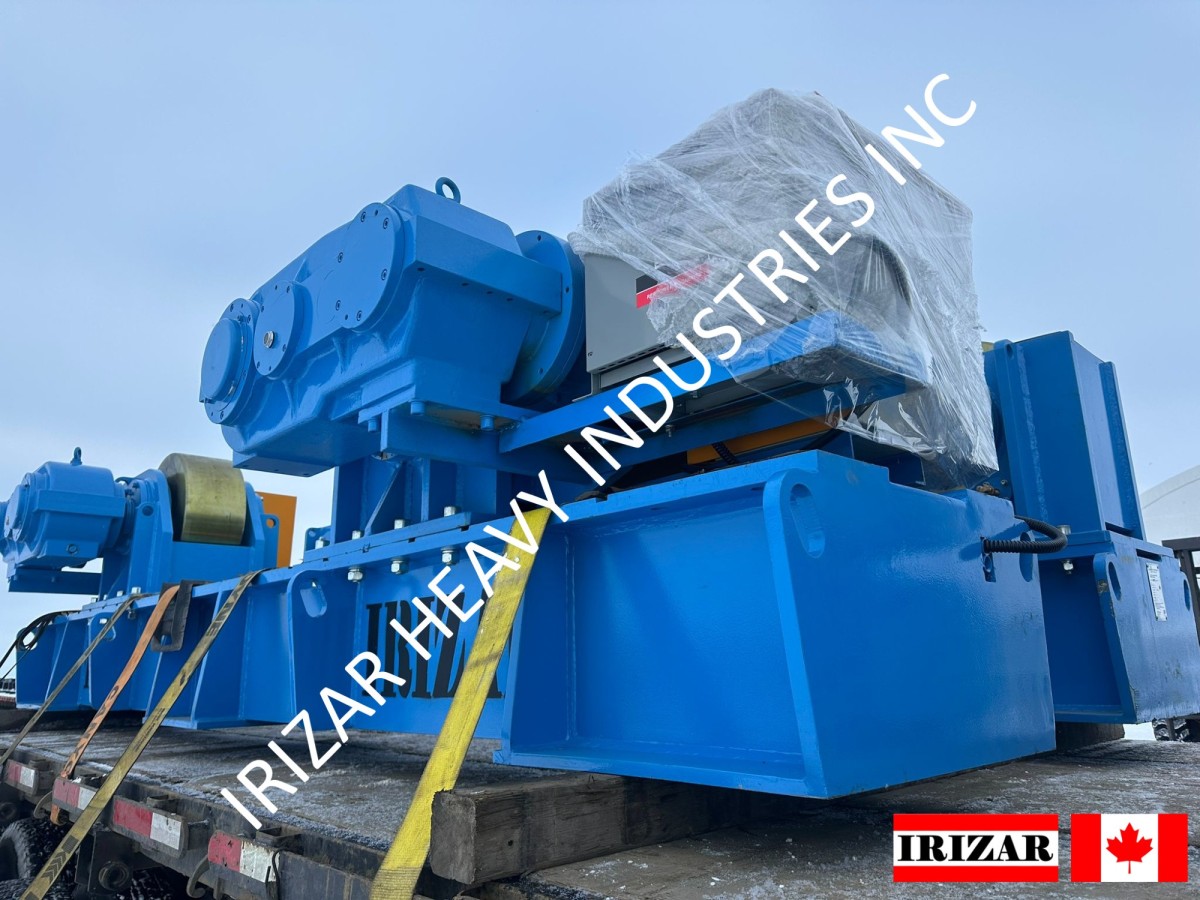

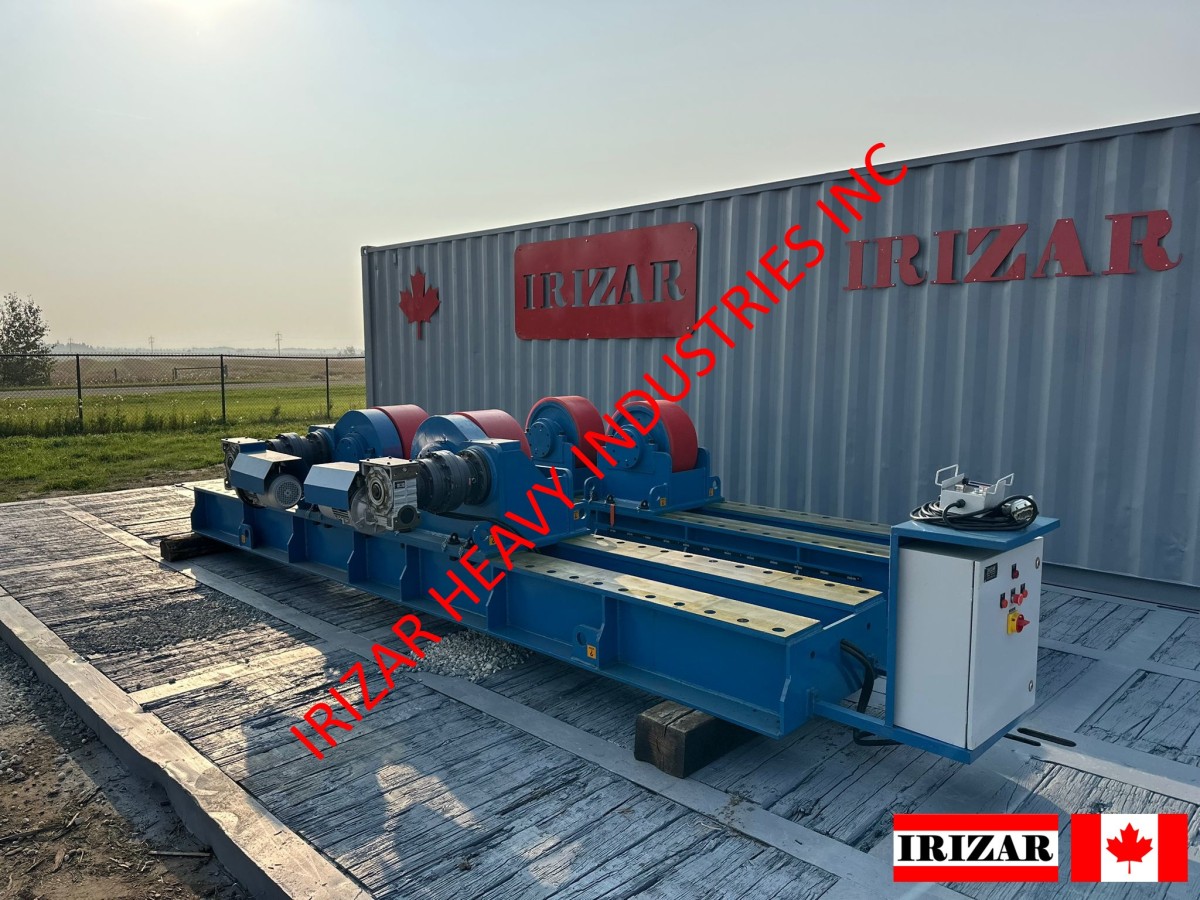

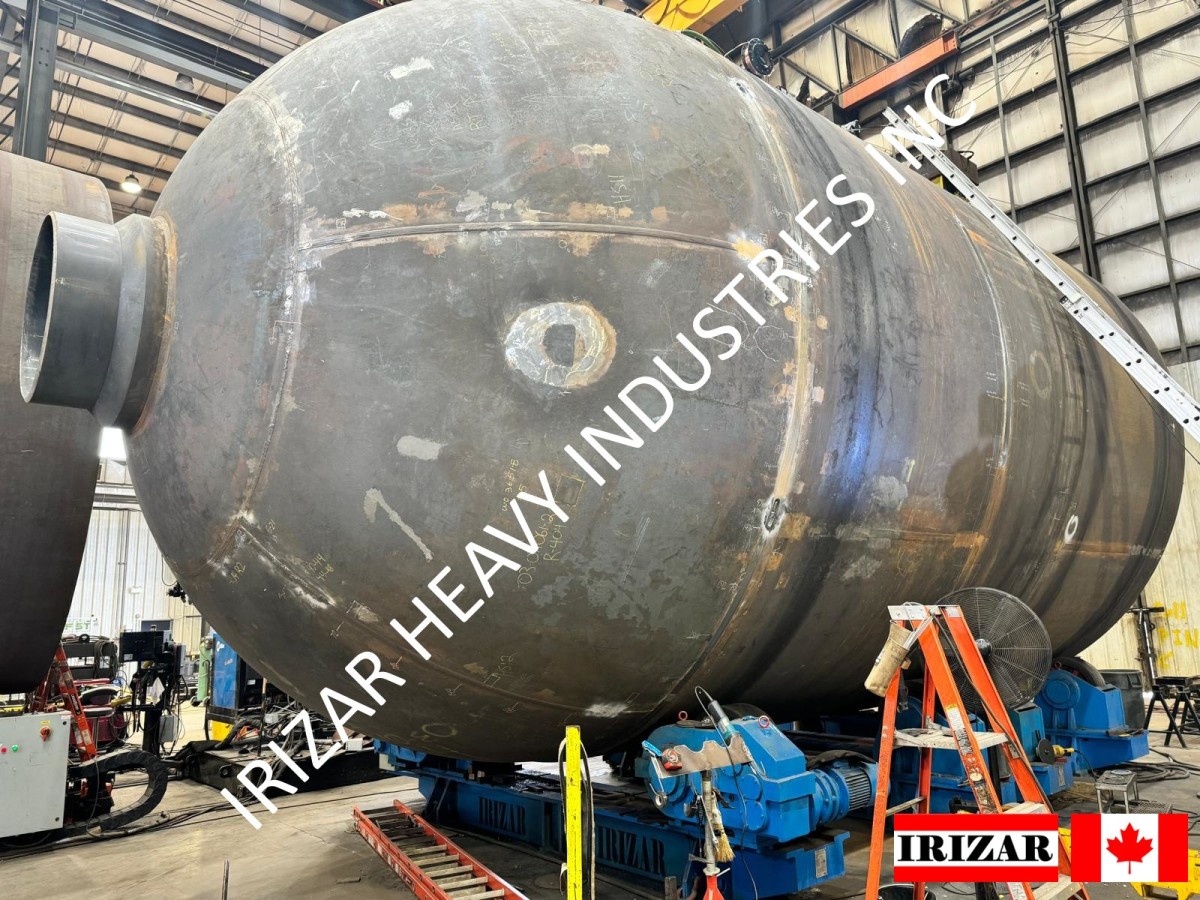

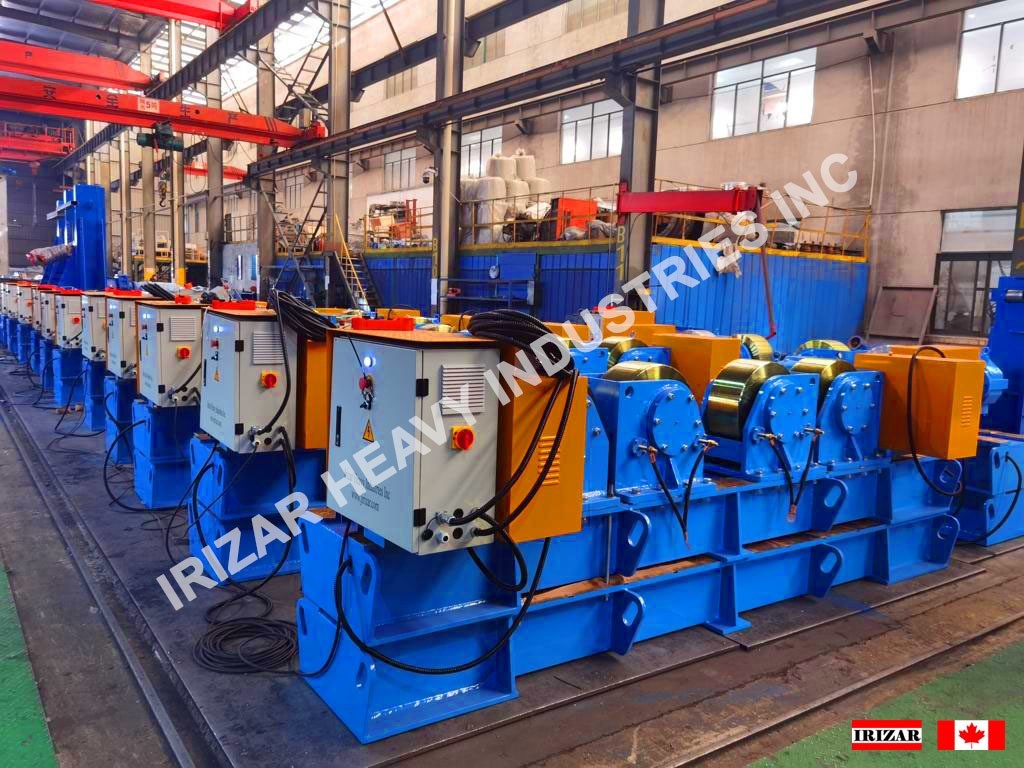

Irizar WR 250 Tank Turning Rolls are 250 MT capacity conventional welding rotators designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The WR 250 includes one power rotator and one idler rotator, providing a combined loading/maximum rotation capacity of 250 MT.
Our tank turning rolls are available from stock in capacities ranging from 3 MT to 2,500 MT.
Including: 3 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 400 | 600 | 800 | 1,200 | 2,500 MT
Additional capacities available upon request: 1,000 | 1,600 | 2,000 MT
Available in Stock:
The world's largest selection of tank turning rolls.
The world's largest 2,500 MT capacity welding rotator.
Notes:

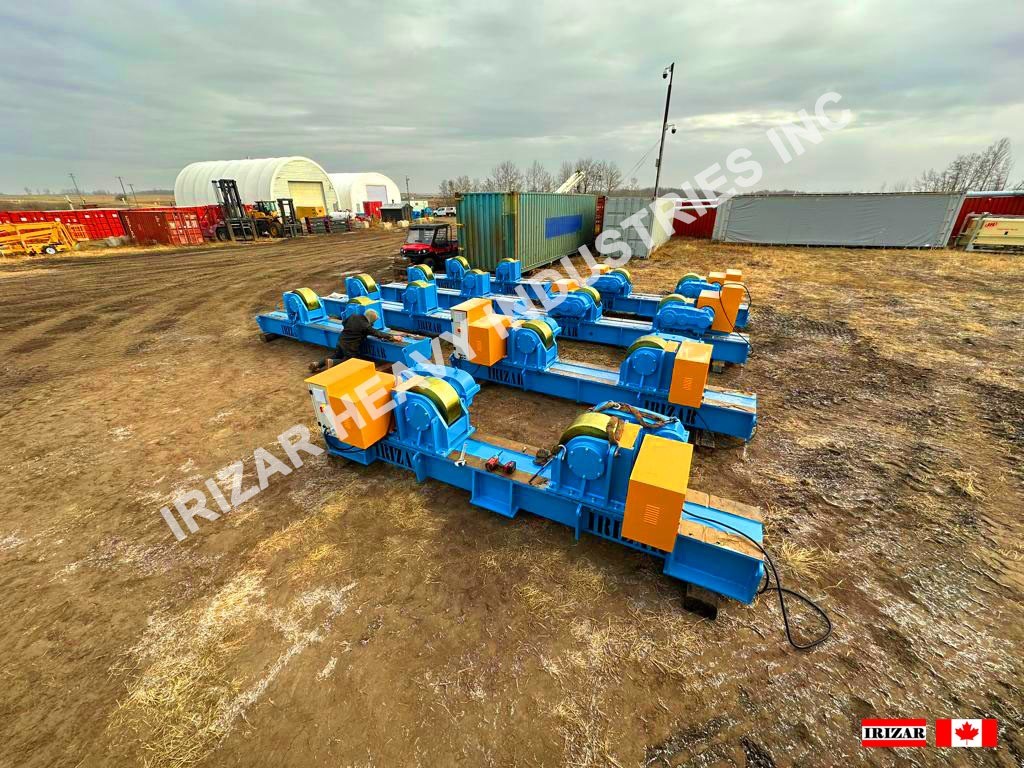

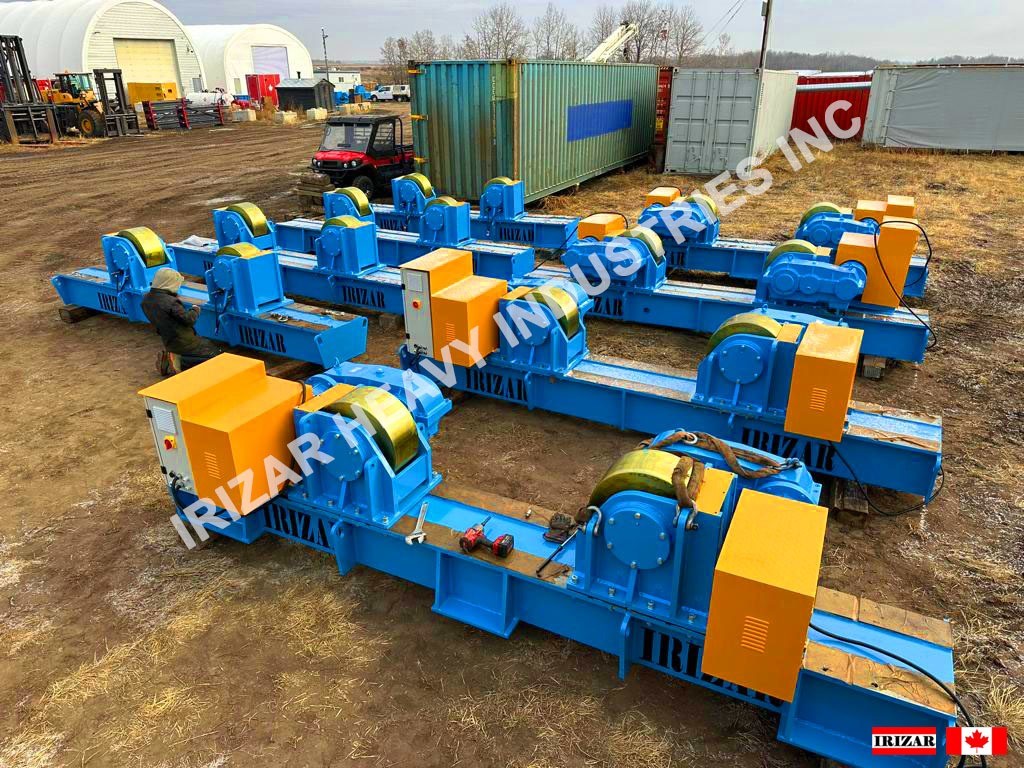

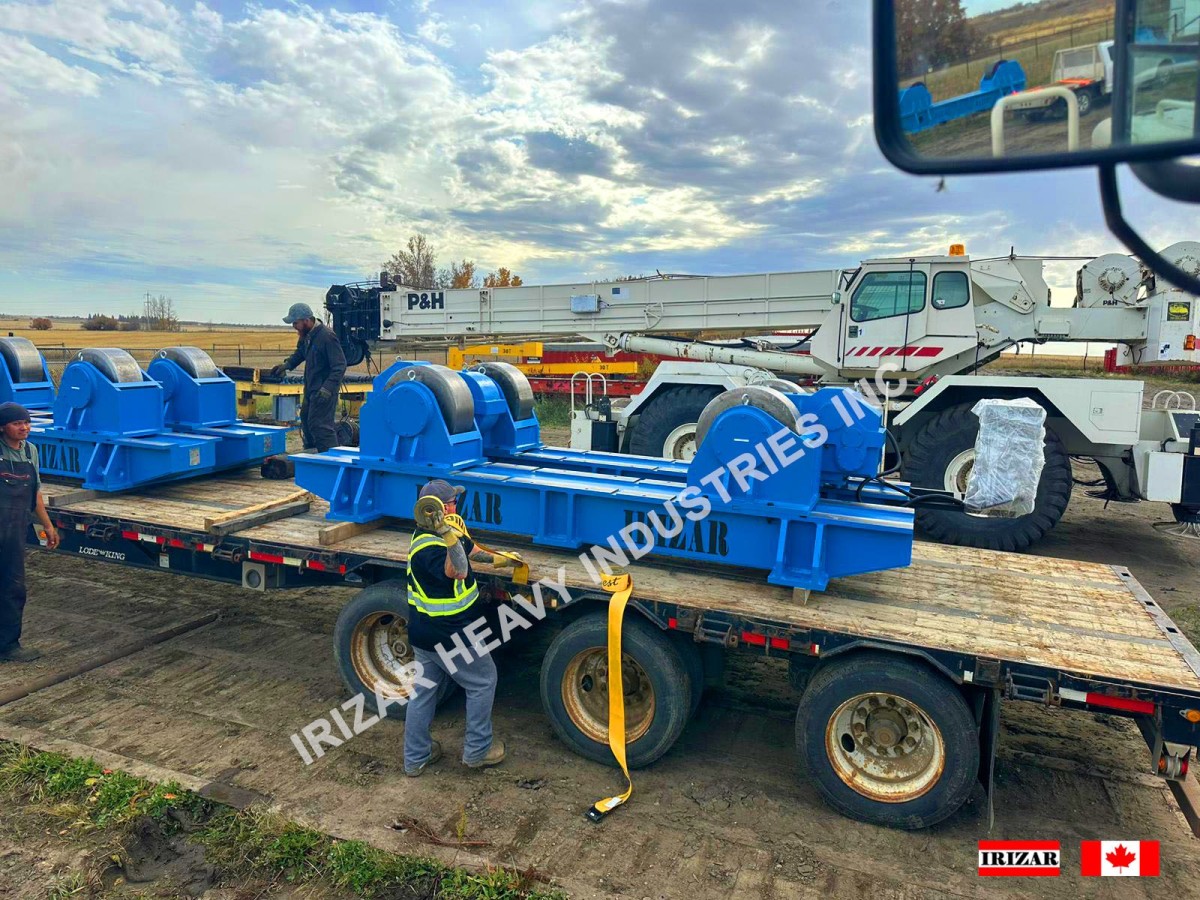

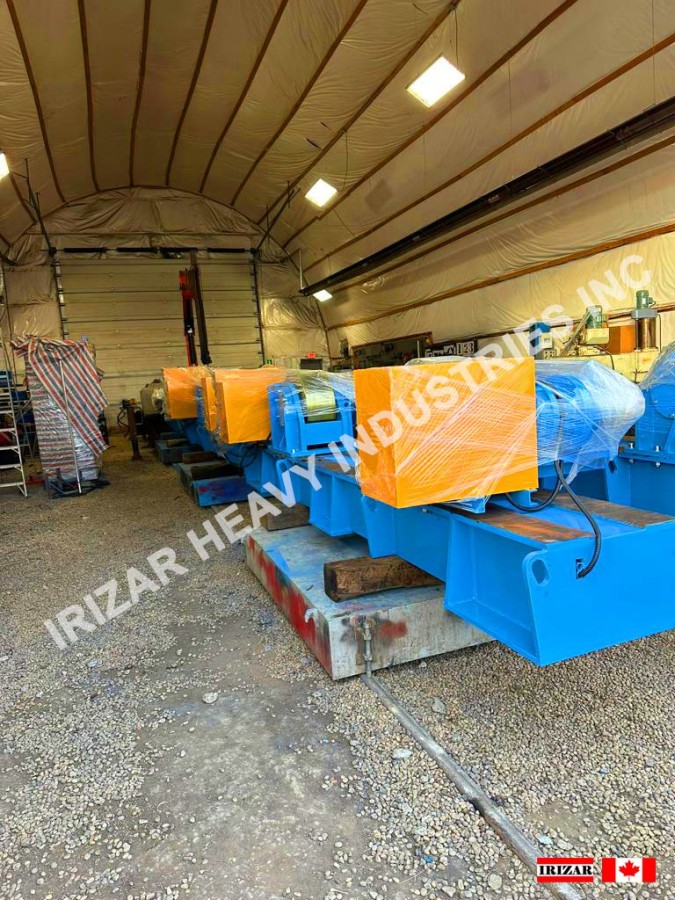

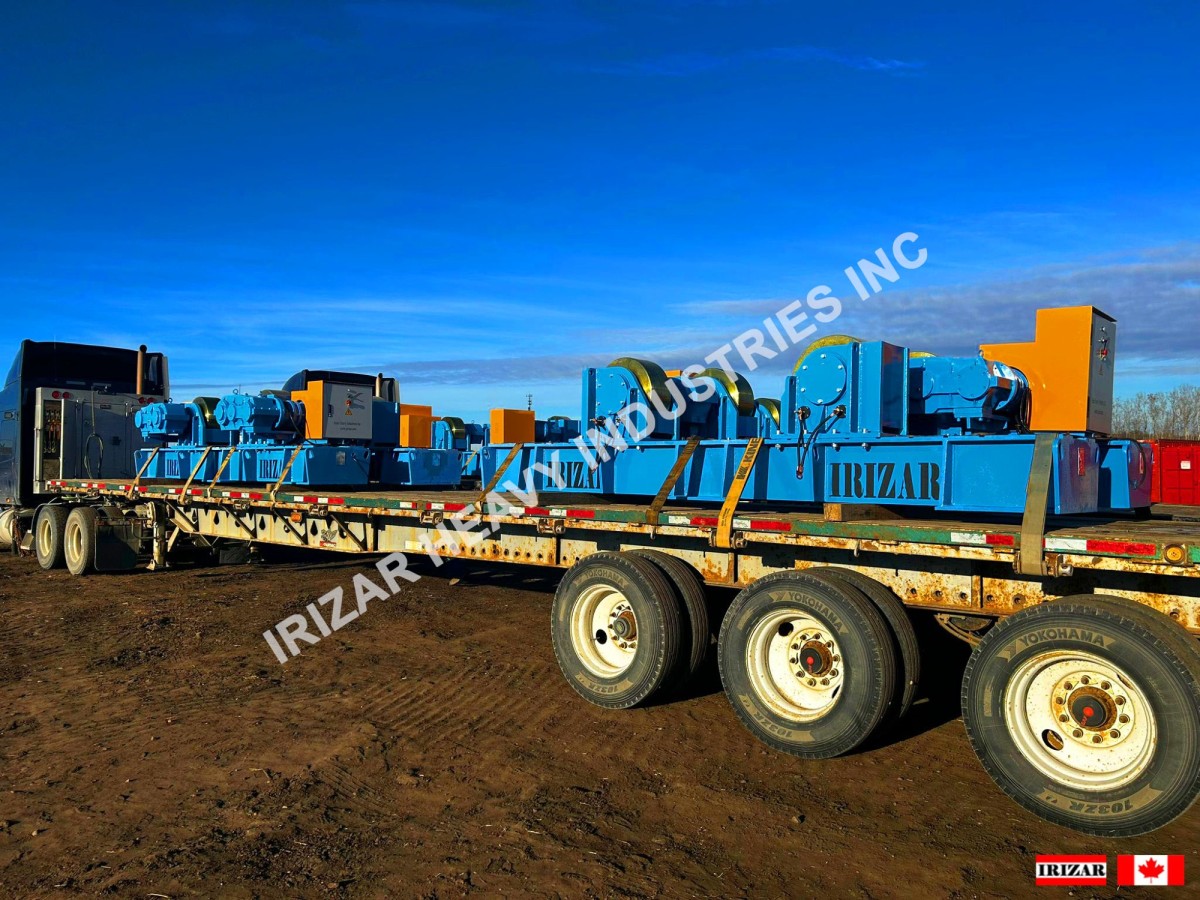

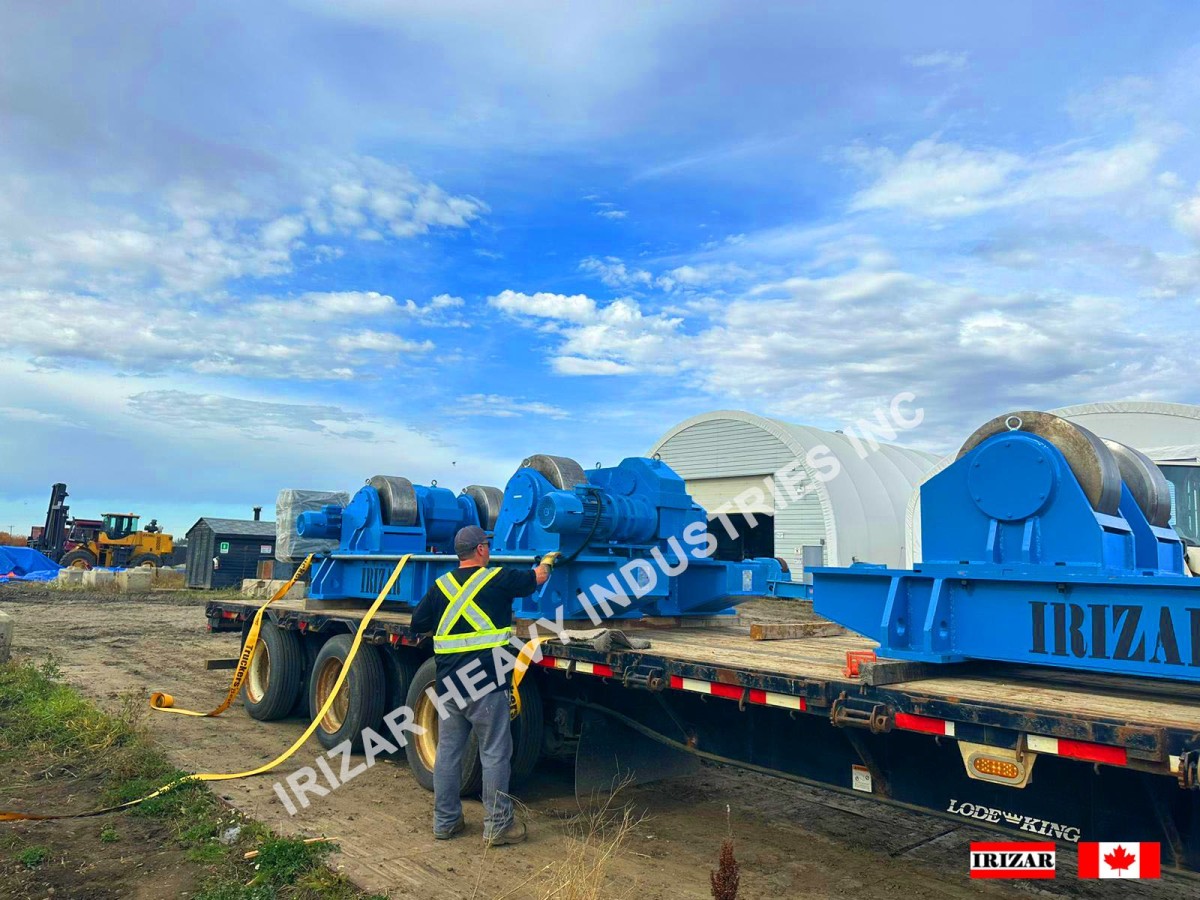

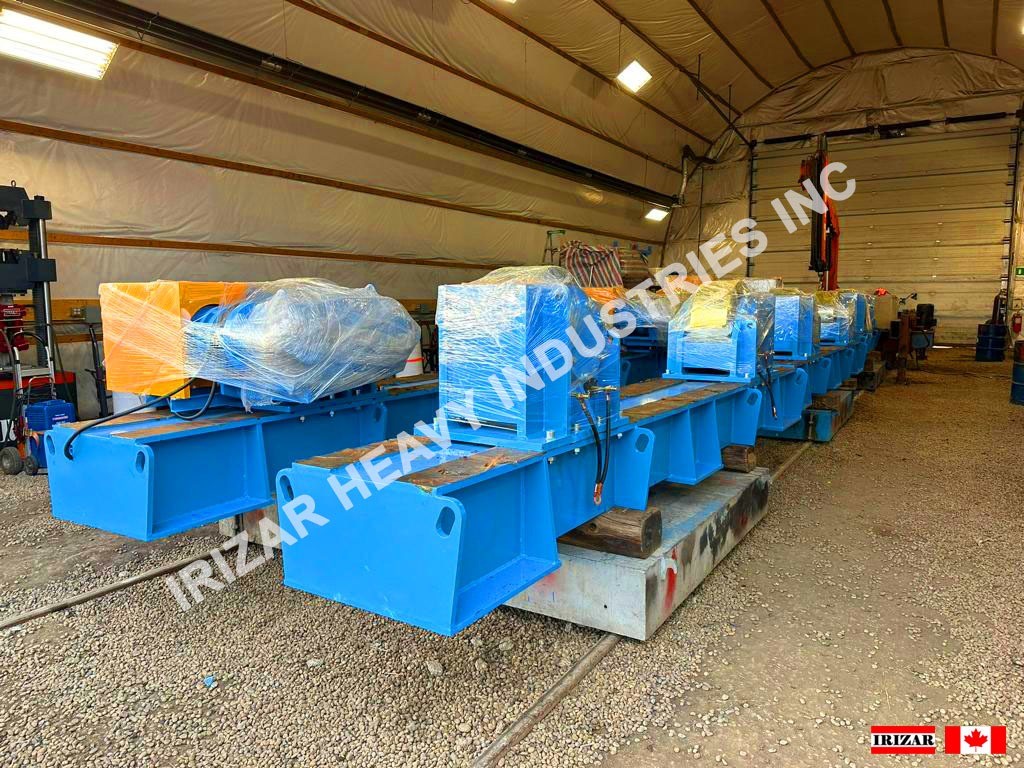

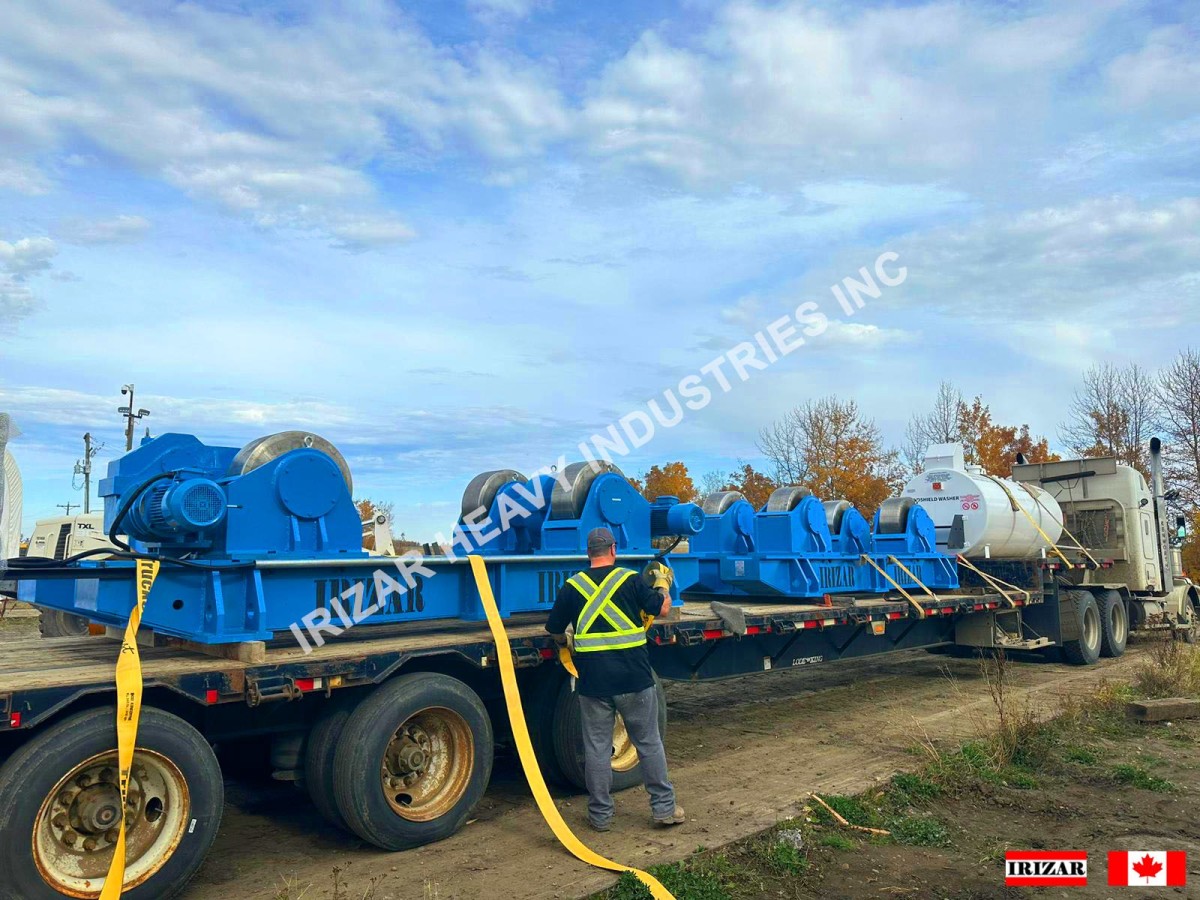

1. IN STOCK - More than ten (10) sets of WR 250 MT Welding Rotators. Two sets can be synchronized to load and rotate up to 500 MT; configured with two (2) power rollers and two (2) idler rollers.
2. Machinery temporarily exported from Canada to the USA under an ATA Carnet, also referred to as a "Merchandise Passport," is exempt from import duties and tariffs. The machinery must be returned within one year and cannot be sold or exported abroad.
Gallery & Video
Specifications
Power Rotator Max Rotation Capacity: 250 MT
Power Rotator Max Load Capacity: 125 MT
Idler Rotator Max Load Capacity: 125 MT

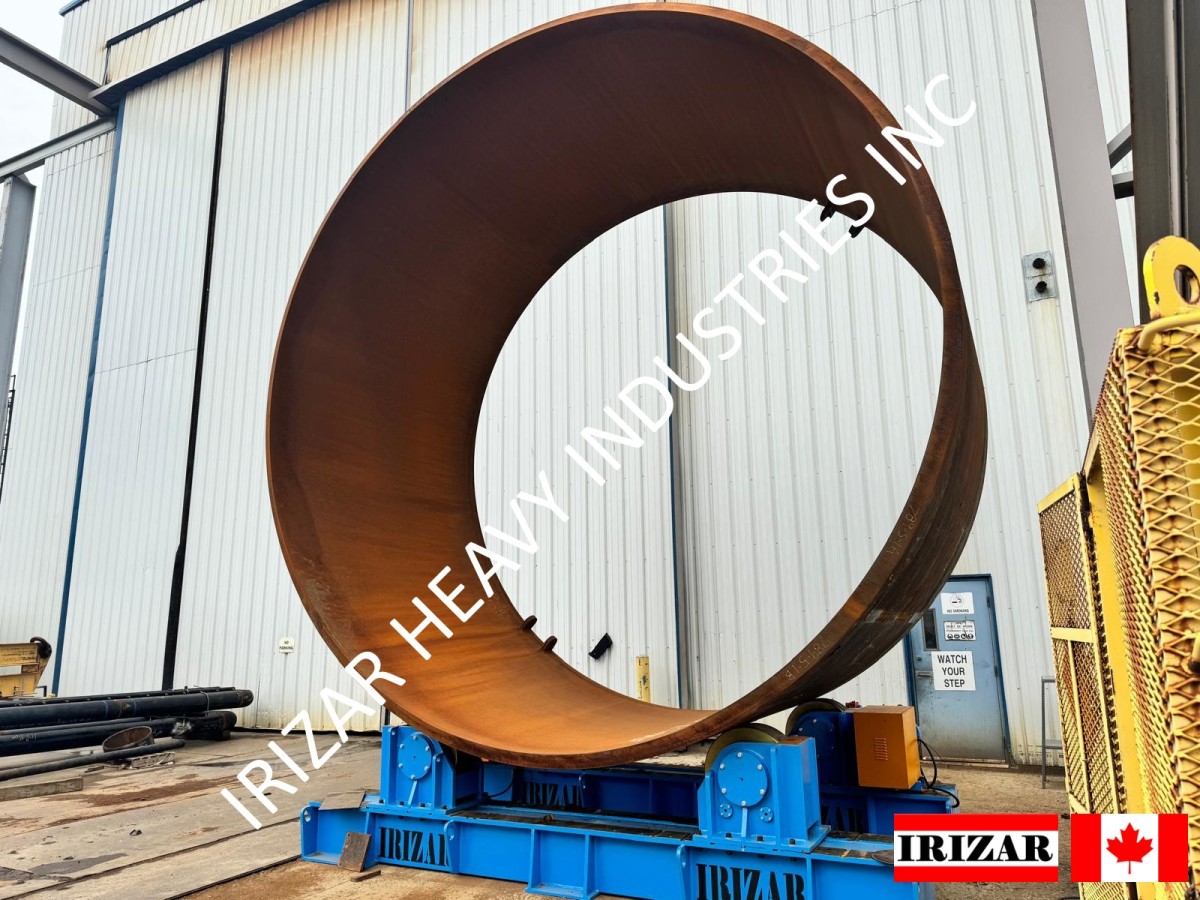

Vessel Diameter Range: From 1,200 mm up to 9,000 mm
Variable Speed: From 100 up to 1,000 mm/minute
Wireless control with 60 m reach:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 5.50 kW @ 2
Wheel Diameter: 500 mm
Wheel Width: 260 mm
Estimated Weight: 10.00 MT
Warranty: One year

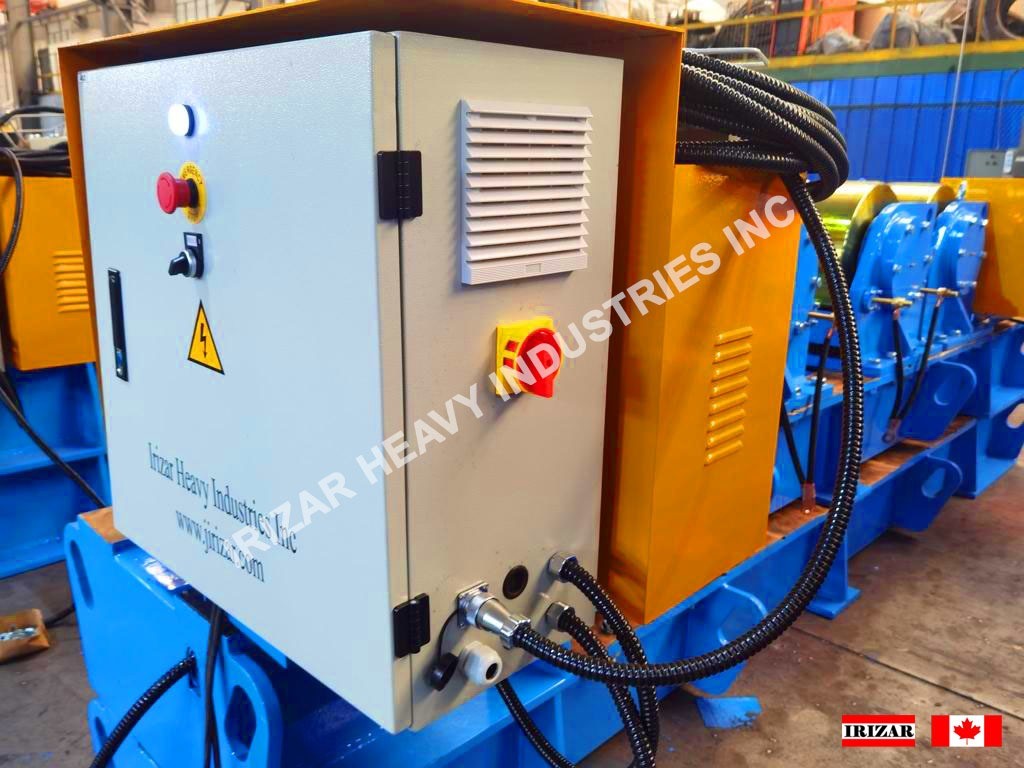

Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
