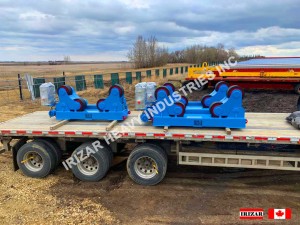

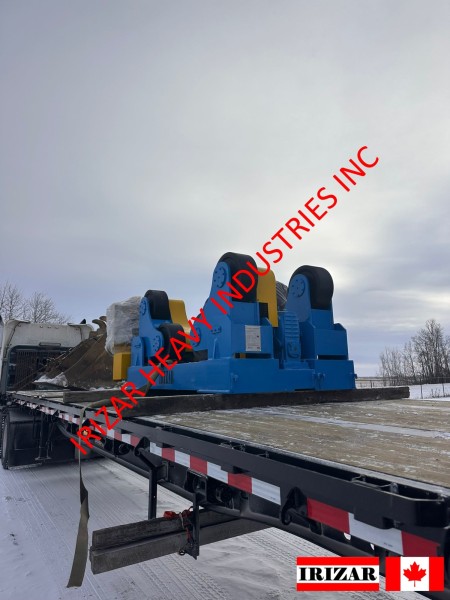

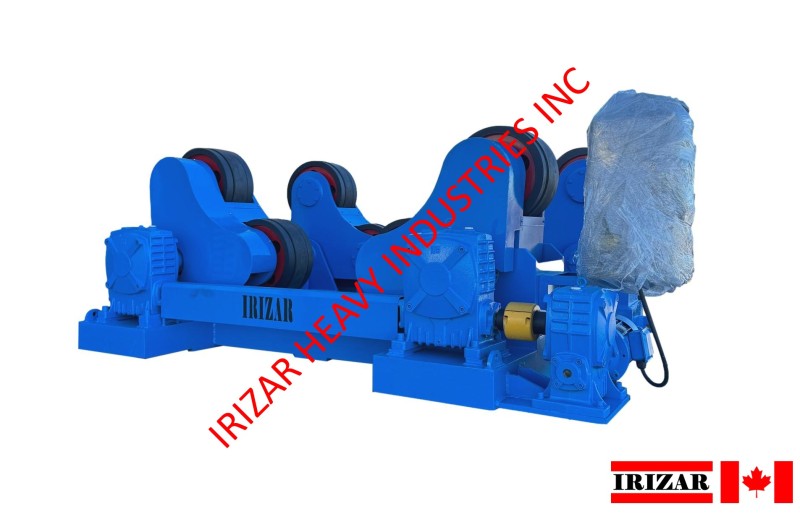

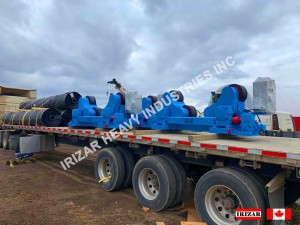

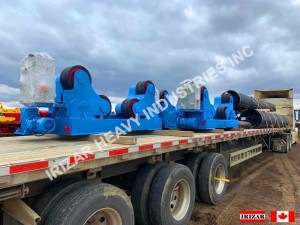

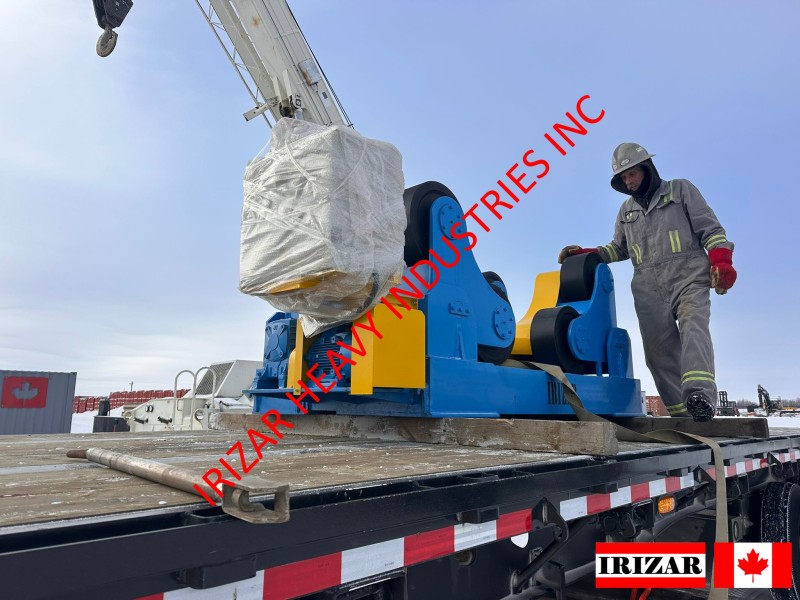

Irizar Heavy Industries Inc. is a Canadian company based in Edmonton, Canada. We take pride in manufacturing the world's largest Self-Aligned Welding Rotators and owning the world's largest stock. Self-aligned welding Rotators are used for positioning cylindrical workpieces, allowing for better weight distribution due to their eight wheels. They self-adjust to the vessel diameter, providing zero downtime. The set comprises one power rotator with variable speed and one idler roller. Self-Adjusted Turning Rolls automate the welding process by applying SAW (Submerged Arc Welding) on longitudinal and circumferential seams with the help of a Welding Manipulator.
Self-Aligned Welding Rotators, also known as Self Aligning Welding Rotators, Self-Adjusted Turning Rolls, Self Alignment Rollers, Self-Adjustment Welding Rollers, Self Adjusting Tank Rolls, Rotador de Soldadura Auto Ajustable, Virador de Soldadura Auto Ajustable, Virador de Tanques Auto Ajustable, Rotador de Tanques Auto Ajustable and Rotador de Tuberia Auto Ajustable
Capacity:
The vessel sits on four wheels: Full Load Capacity
Vessel Diameter Range is from 1,400 up to 5,200 mm
Power Rotator Max Rotation Capacity: 40 MT
Power Rotator Max Load Capacity: 20 MT
Idler Rotator Max Load Capacity: 20 MT
The vessel sits on two bottom wheels: Half Load Capacity
Vessel Diameter Range is from 900 to 1,380 mm.
Power Rotator Max Rotation Capacity: 20.00 MT
Power Rotator Max Load Capacity: 10.00 MT
Idler Rotator Max Load Capacity: 10.00 MT
Specifications:
Variable Speed: From 100 up to 1,000 mm/minute
Remote Control Box with 6 m cable:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 3.00 kW
Wheel Diameter: 400 mm
Wheel Width: 200 mm
Estimated Weight: 3.00 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Frequently Asked Questions (FAQ), Knowledge Base (KB), Quality Assurance (QA)
Delivery Time: In stock
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
