Capacity:

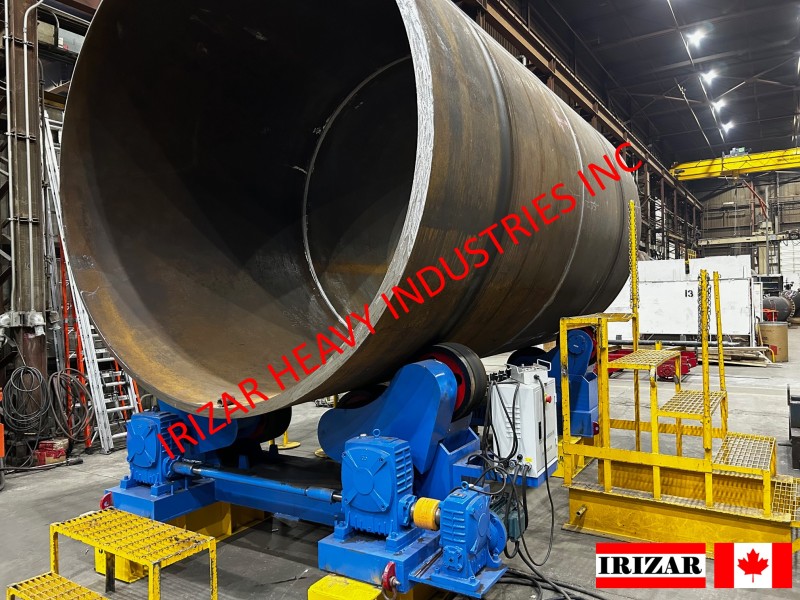

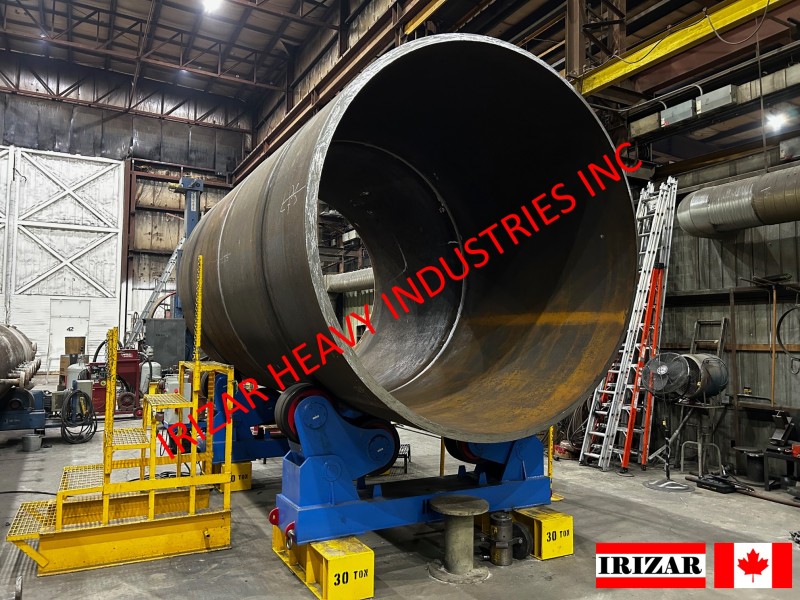

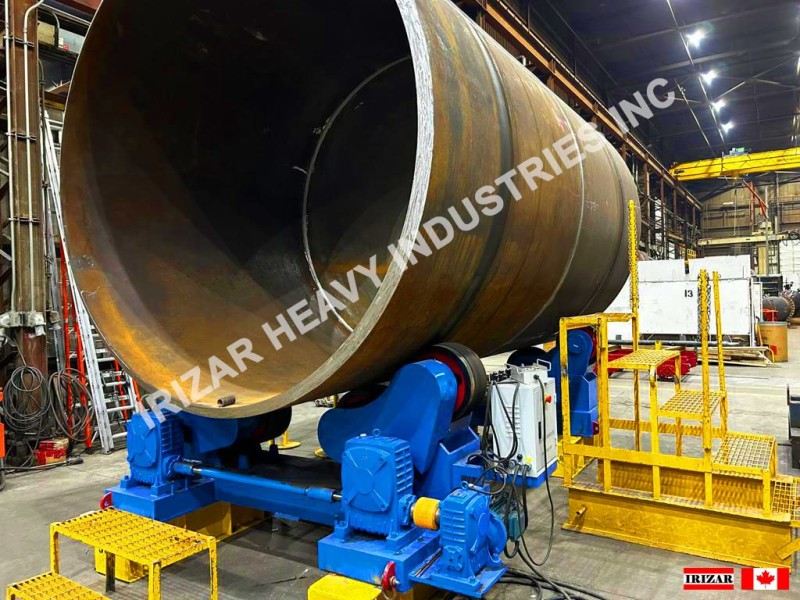

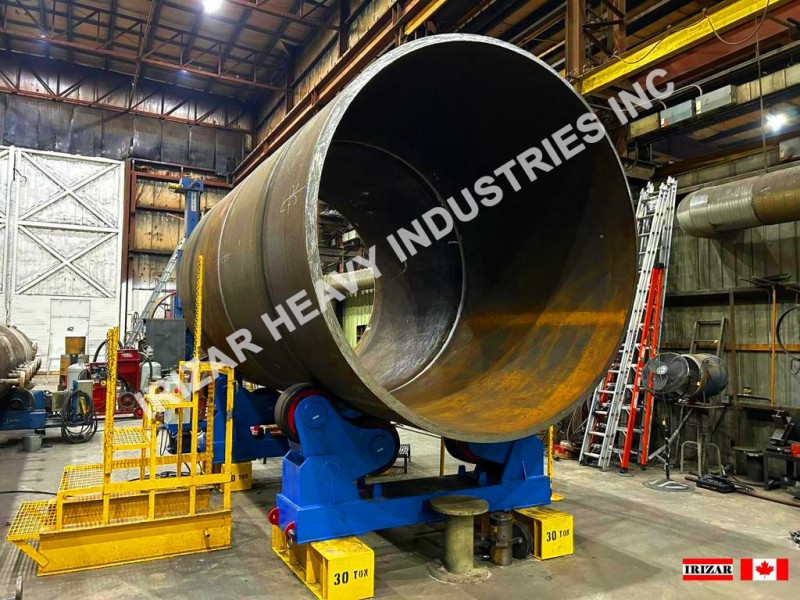

The vessel sits on four wheels: Full Load Capacity
Vessel Diameter Range is from 1,550 up to 4,800 mm.
Power Rotator Max Rotation Capacity: 60 MT
Power Rotator Max Load Capacity: 30 MT
Idler Rotator Max Load Capacity: 30 MT
The vessel sits on two bottom wheels: Half Load Capacity
Vessel Diameter Range is from 750 up to 1,530 mm.
Power Rotator Max Rotation Capacity: 30.00 MT
Power Rotator Max Load Capacity: 15.00 MT
Idler Rotator Max Load Capacity: 15.00 MT
Specifications:
Variable Speed: From 100 up to 1,000 mm/minute
Remote Control Box with 6 m cable:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 4.00 kw
Wheel Diameter: 450 mm
Wheel Width: 220 mm
Estimated Weight: 4.00 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
