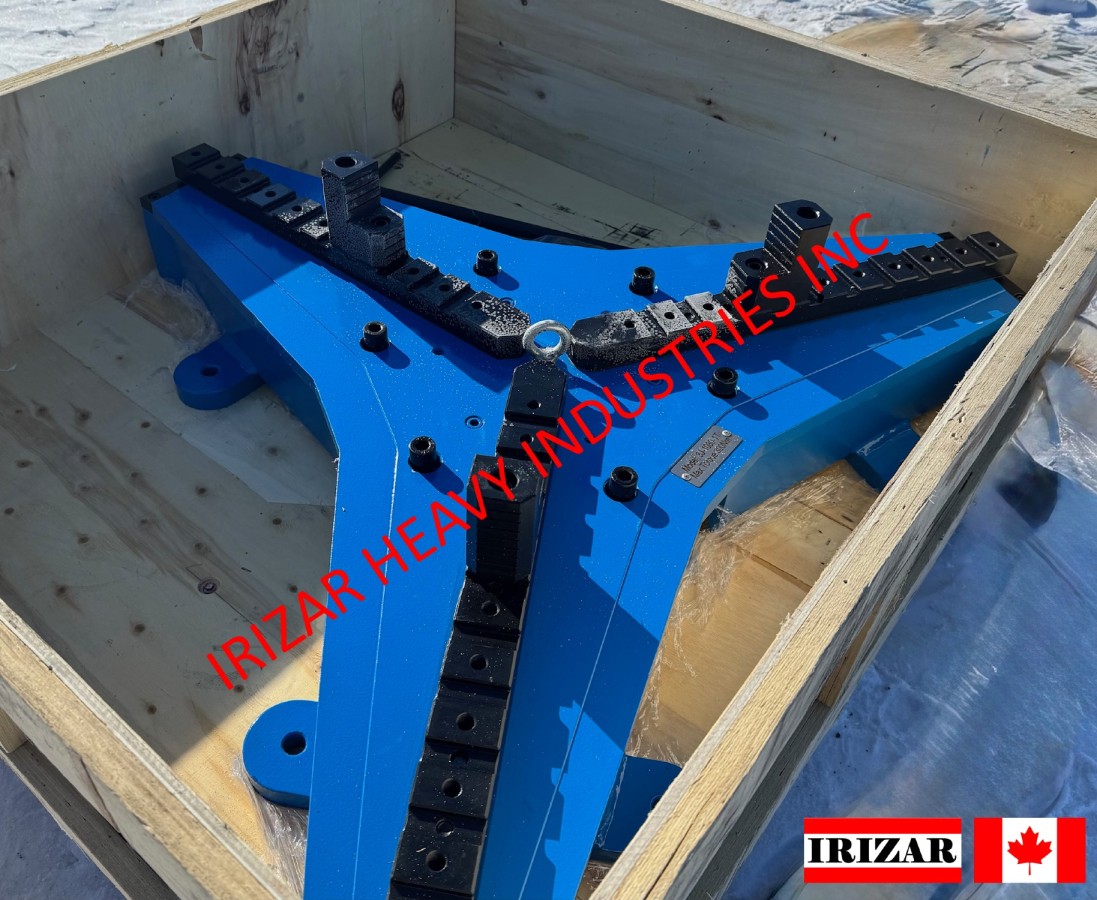

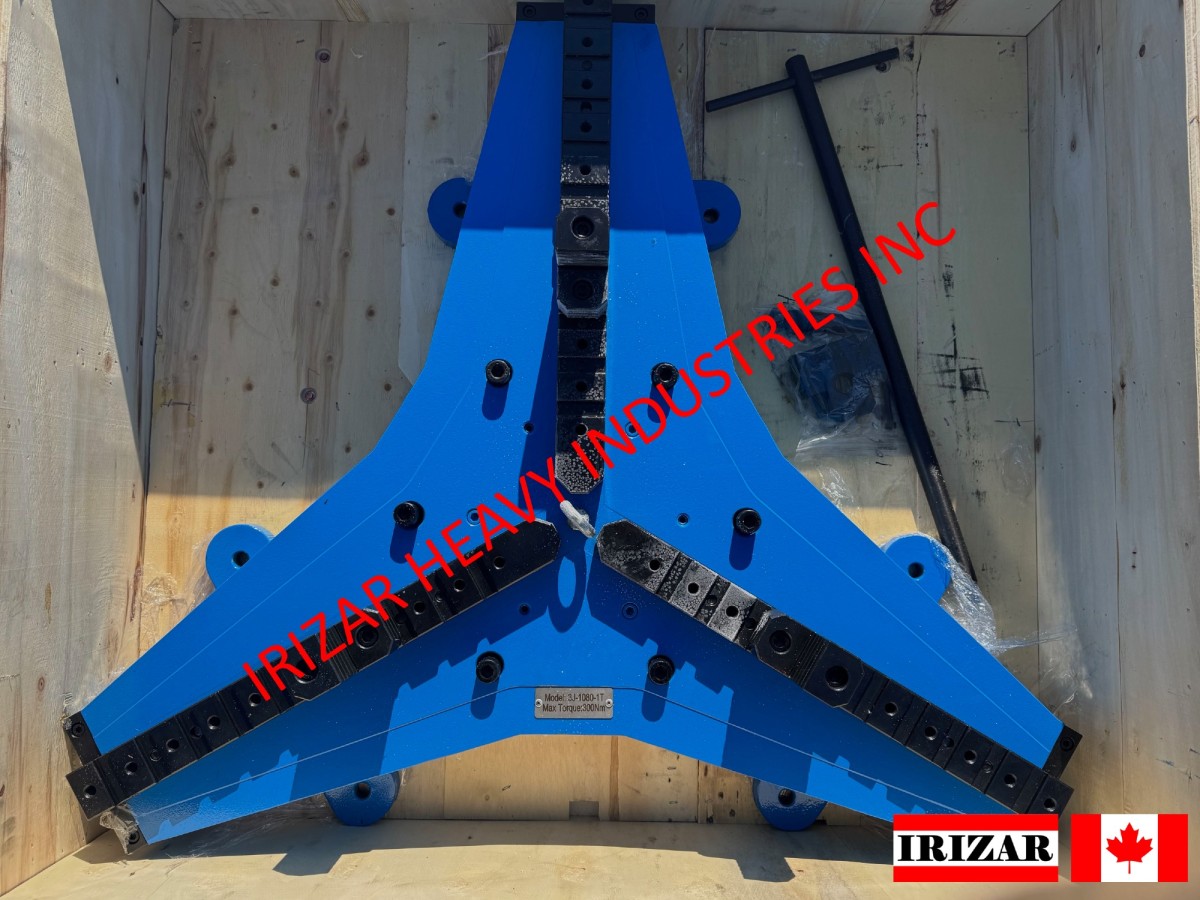

Three-Jaw Self-Centring Welding Gripper Chuck
Model 3J-1080-1T
Specifications:
Inner Jaw Clamping Range OD: 85 – 950 mm
Outer Jaw Clamping Range OD: 170-1080 mm
Max load capacity: 1 MT @ 5” from table surface
Max In Torque (N-m): 300
Max Clamp Force (kN): 45
Mounting holes (mm): M16*150 @ Nos 6
Swing diameter: 1150 mm
Weight: 140 kg
Three-Jaw Self-Centring
Welding Gripper Chucks Models
Model 3J-615-1 MT: 85 to 615 mm Ø
Model 3J-1080-1 MT: 85 to 1,080 mm Ø
Model 3J-1250-2 MT: 200 to 1,250 mm Ø
Model 3J-1500-3 MT: 200 to 1,500 mm Ø
Notes:
1. Maximum torque allowed: Check the chuck's engraved information
2. Irizar Chucks are designed for welding at low speed, not for use on a lathe at high speed.
Delivery Time:
By truck:
Within Canada: Three to five business days
USA & US-Mexican border: One week
By courier: 24 to 48 hours
Worldwide: Four to five business days
