Irizar WR 2500 Tank Turning Rolls are 2500 MT capacity conventional welding rotators designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The WR 2500 includes one power rotator and one idler rotator, providing a combined loading/maximum rotation capacity of 2500 MT.
Our tank turning rolls are available from stock in capacities ranging from 3 MT to 2,500 MT.
Including: 3 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 400 | 600 | 800 | 1,200 | 2,500 MT
Additional capacities available upon request: 1,000 | 1,600 | 2,000 MT
Available in Stock:
The world's largest selection of tank turning rolls.
The world's largest 2,500 MT capacity welding rotator.
Notes:
1. IN STOCK - One set of WR 2500 MT Welding Rotator, configured with one (1) power roller and one (1) idler roller.
2. Machinery temporarily exported from Canada to the USA under an ATA Carnet, also referred to as a "Merchandise Passport," is exempt from import duties and tariffs. The machinery must be returned within one year and cannot be sold or exported abroad.

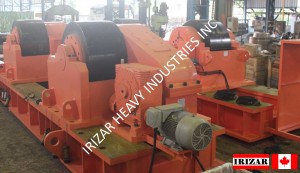

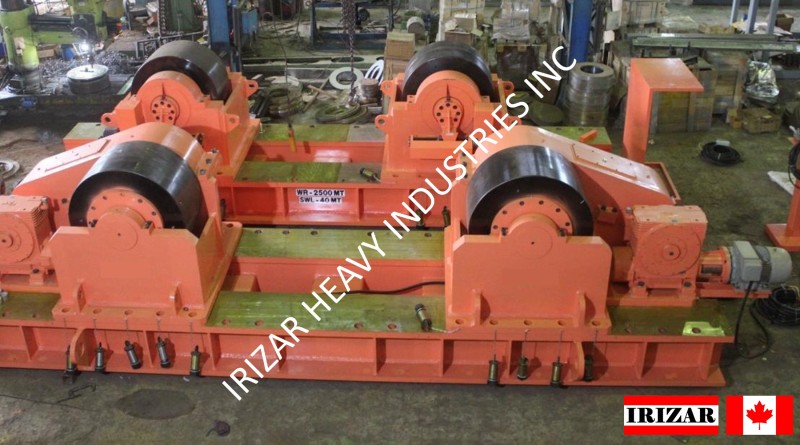

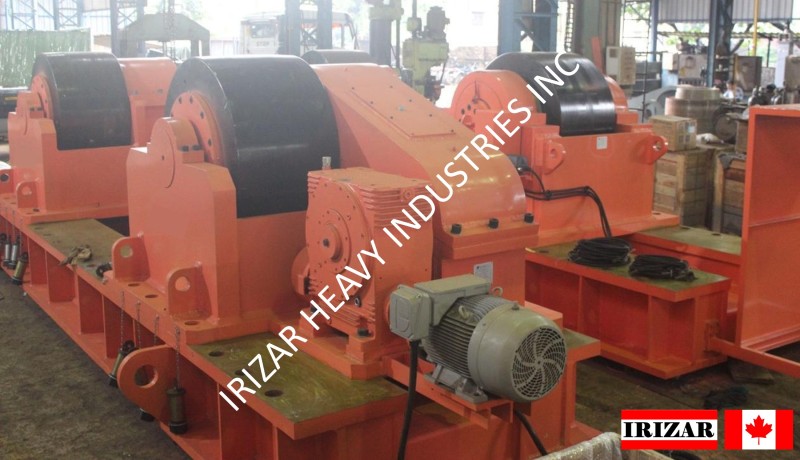

Gallery
Specifications
Power Rotator Max Rotation Capacity: 2,500 MT
Power Rotator Max Load Capacity: 1,250 MT
Idler Rotator Max Load Capacity: 1,250 MT
Vessel Diameter Range: From 2,000 mm up to 12,000 mm
Variable Speed: From 125 up to 1,250 mm/minute
Wireless Remote Control with 60 m reach:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 11.0 kW @ 2 (with planetary reducer)
Wheel Diameter: 1100 mm
Wheel Width: 800 mm
Estimated Weight: 90 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
