Irizar AD-WR 1200 Anti-Drift Turning Rolls are 1200 MT capacity welding rotators designed to support, position, and rotate tanks, pressure vessels, and other cylindrical workpieces while minimizing longitudinal movement during rotation. This movement, commonly known as the screw effect or vessel drift, can occur during welding and fabrication operations. The automatic anti-drift system uses a PLC and sensor-controlled system to continuously correct the position of the workpiece and maintain longitudinal drift within ±3.0 mm.
Our Anti-Drift Turning Rolls are available in stock: 100 | 800 | 1200 | 2500 MT.
Available upon request: 150 | 250 | 400 | 600 | 1000 | 1600 | 2,000 MT.
Available in Stock:
The world's largest 2,500 MT capacity anti-drift welding rotator.

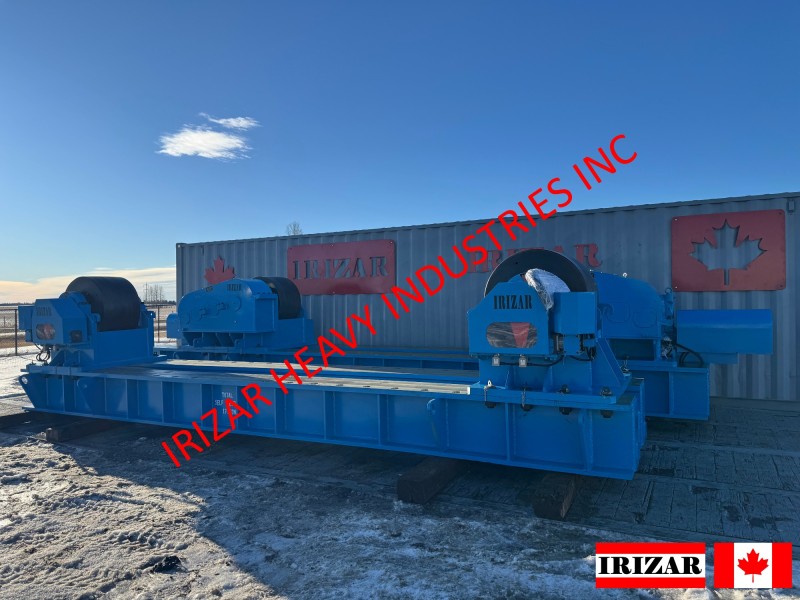

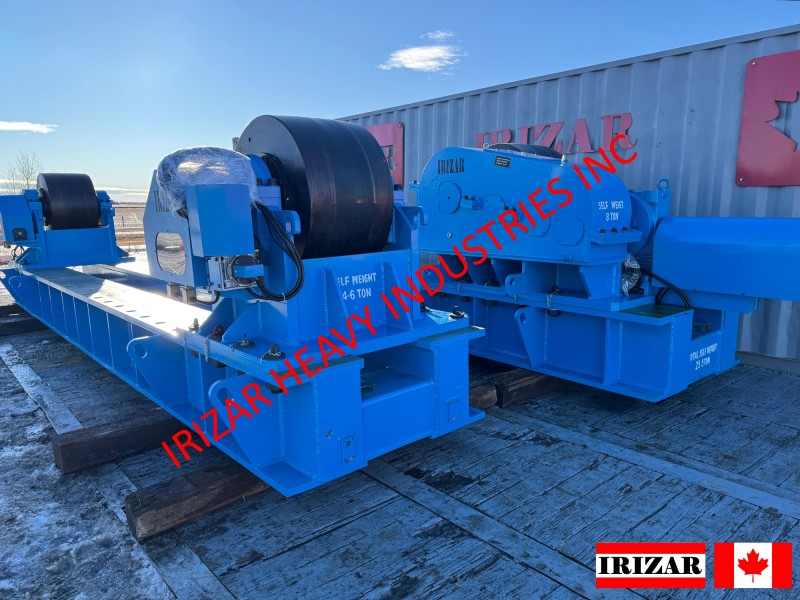

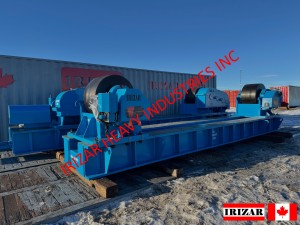

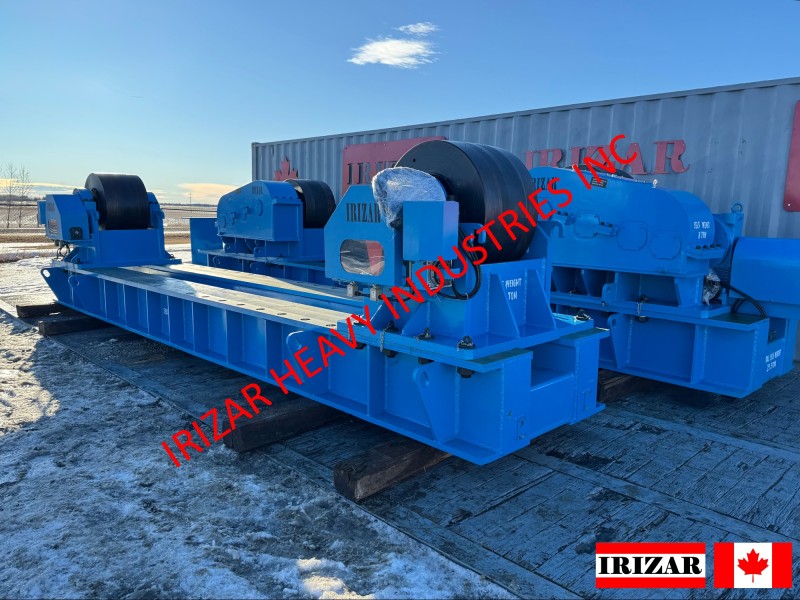

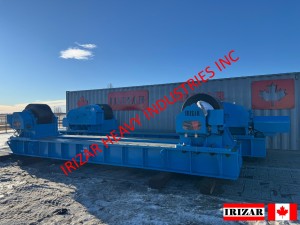

Two AD-WR 1200 Anti-Drift Turning Rolls 1200 MT each
Gallery
Specifications
Power Rotator Max Rotation Capacity: 1200 MT
Power Rotator Max Rotation Capacity: 1600 MT
Power Rotator Max Load Capacity: 800 MT
Idler Rotator Max Load Capacity: 800 MT
Vessel Diameter Range: From 2,000 up to 12,000 mm
Rotation Variable Speed: From 100 up to 1,000 mm/minute
Anti-Drift Precision: ± 3.0 mm
Power: 20.0 kW @ 2
Wheel Diameter: 1100 mm
Wheel Width: 700 mm
Estimated Weight: 85.00 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
