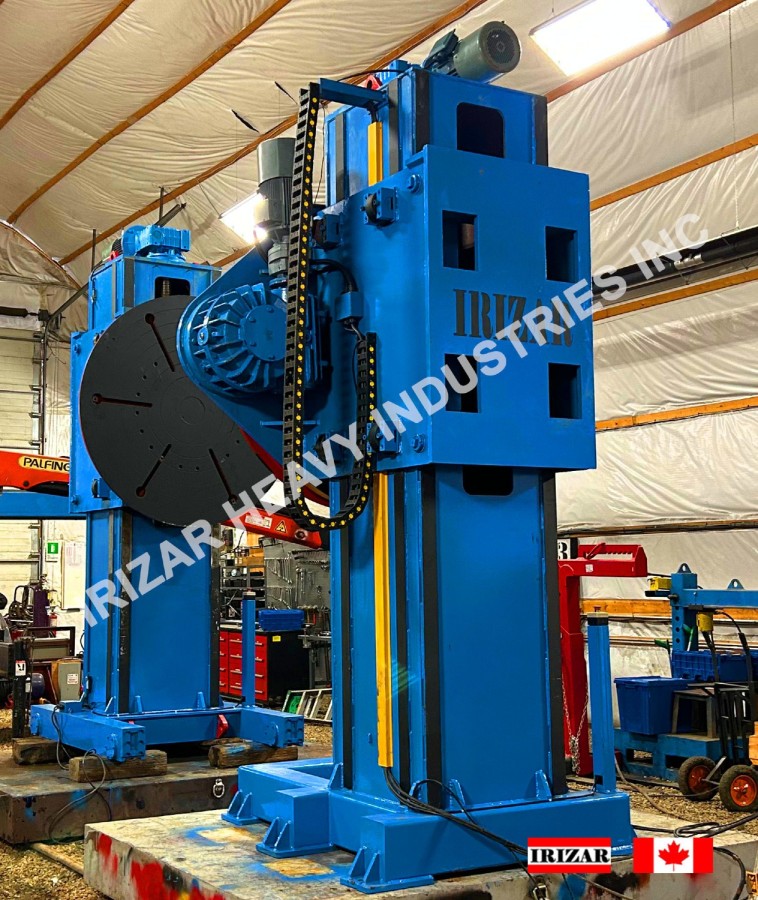

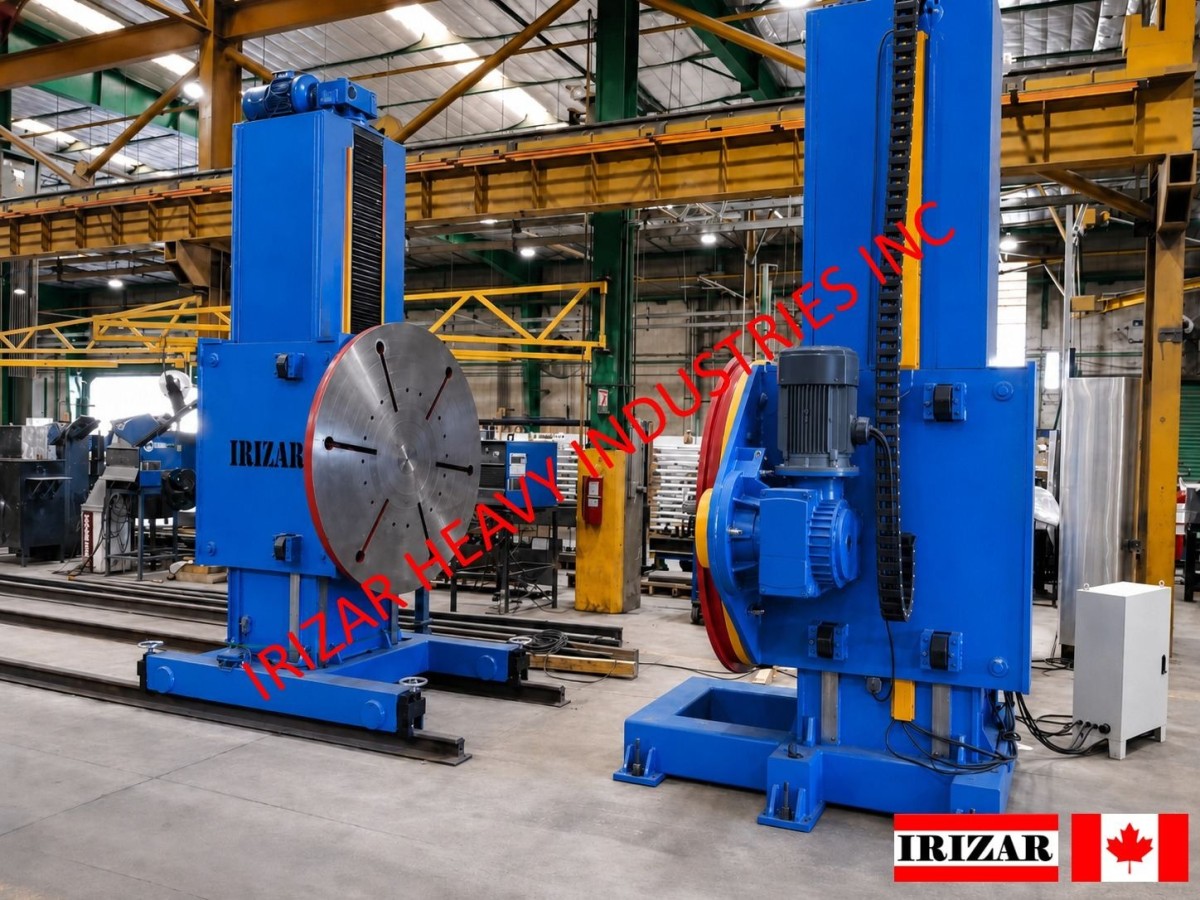

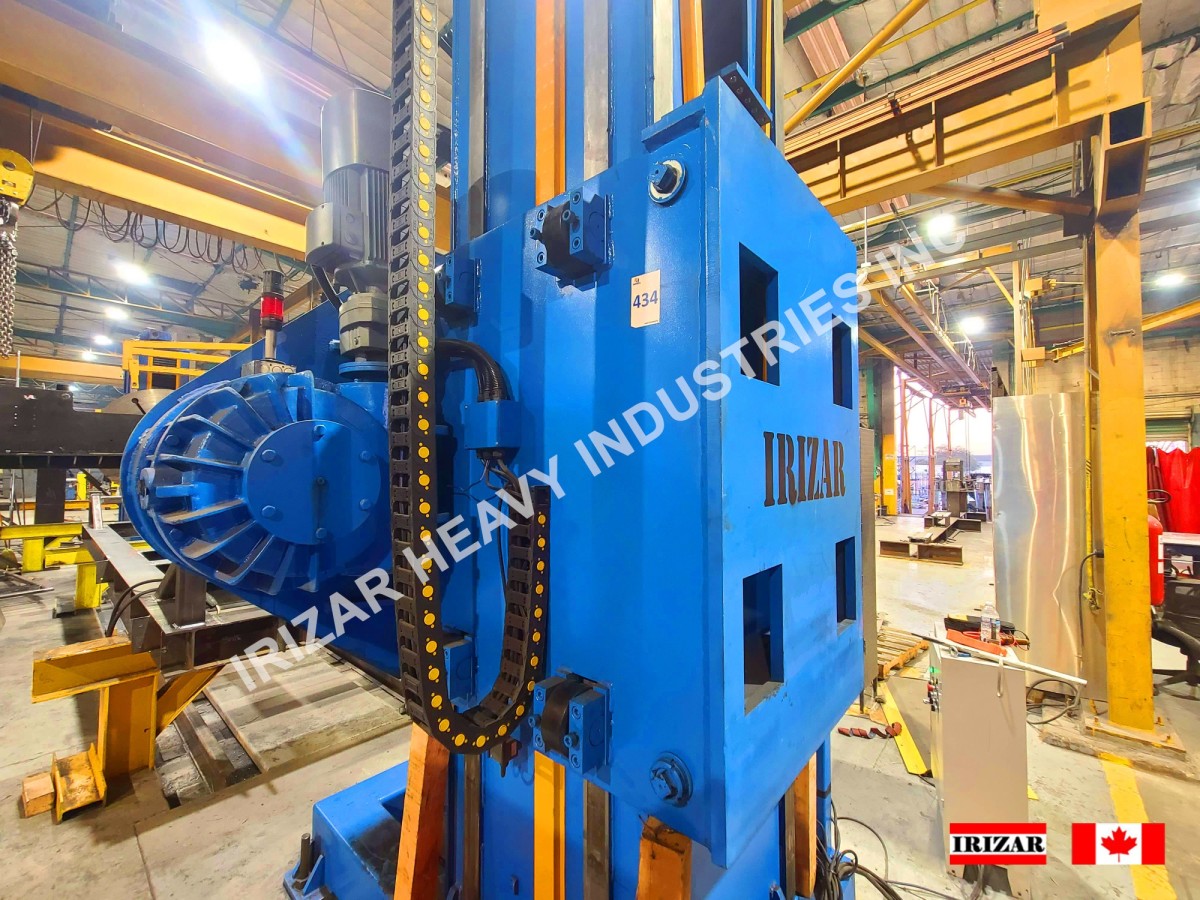

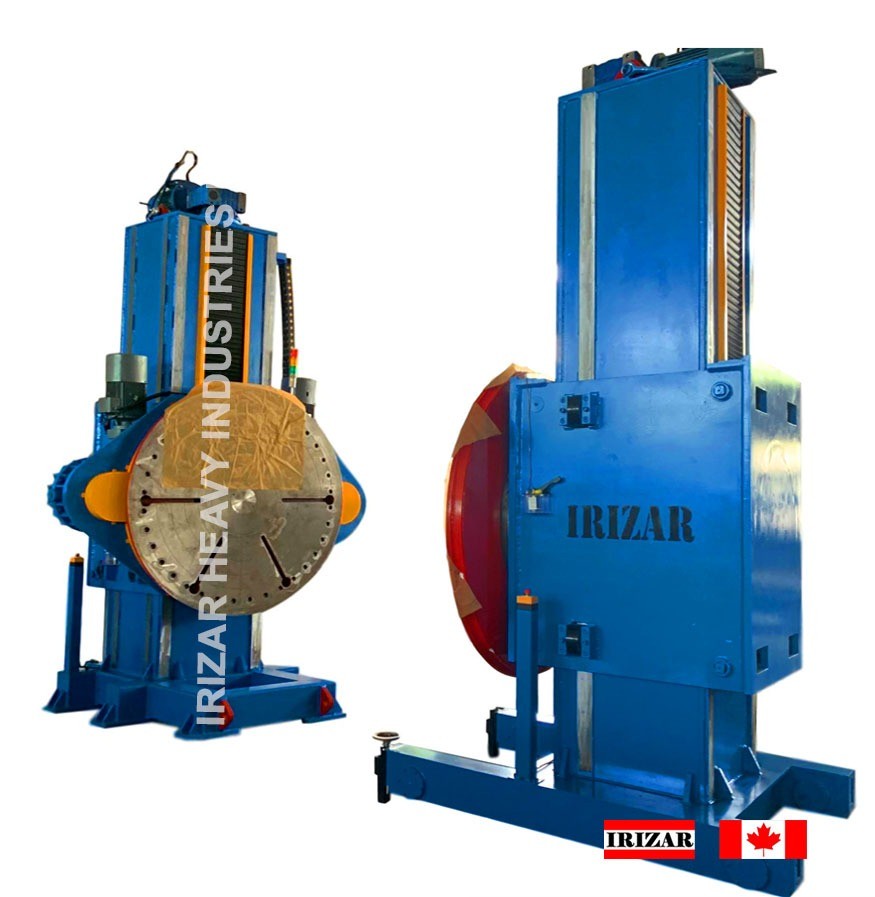

The Head & Tailstock Positioner rotates long rectangular steel structures that are supported at both ends. The Headstock Positioner is fixed to the floor and features a 360° variable-speed powered rotation, as well as an adjustable center rotation height (up/down). The tailstock features idler rotation, adjustable height, and powered center rotation. The unit is mounted over idler bogies to adjust the workpiece length. The set provides the welder with ergonomic access to the welds on the workpiece. Headstock and Tailstock Welding Positioner, also known as Headstock Positioner and Tailstock Positioner.
Available in Stock:
Adjustable Height Models AD-HT (MT): 3 | 5 | 10
Custom-Built:
Models AD-WP (MT): 15 | 20 | 30 | 40 | 50 | 75 | 100 MT
Models & Capacities
Three-Jaw Self-Centring Welding Gripper Chucks
Model 3J-615-1 MT: 85 to 615 mm Ø
Model 3J-1080-1 MT: 85 to 1,080 mm Ø
Model 3J- 1250-2 MT: 200 to 1,250 mm Ø
Model 3J-1500-3 MT: 200 to 1,500 mm Ø
Irizar Chucks are designed for low-speed welding, not for high-speed lathe work.
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
