Irizar WP 30 Welding Positioner is a 30 MT capacity welding positioner designed to support, position, rotate, and tilt workpieces during welding, fabrication, assembly, and inspection. The WP 30 provides powered 360° variable-speed table rotation and powered table tilt from 0° horizontal to 120°, allowing the workpiece to be positioned at the optimum angle for welding and fabrication.
Our welding positioners are available from stock in capacities ranging from 0.6 MT to 40 MT.
Including: WP 0.6 | WP 1 | WP 3 | WP 5 | WP 10 | WP 20 | WP 40 MT
Additional capacities available upon request: WP 30, WP 50
Available in Stock: The world's largest selection of welding positioners

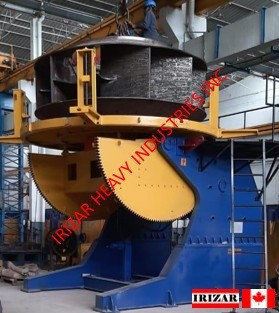

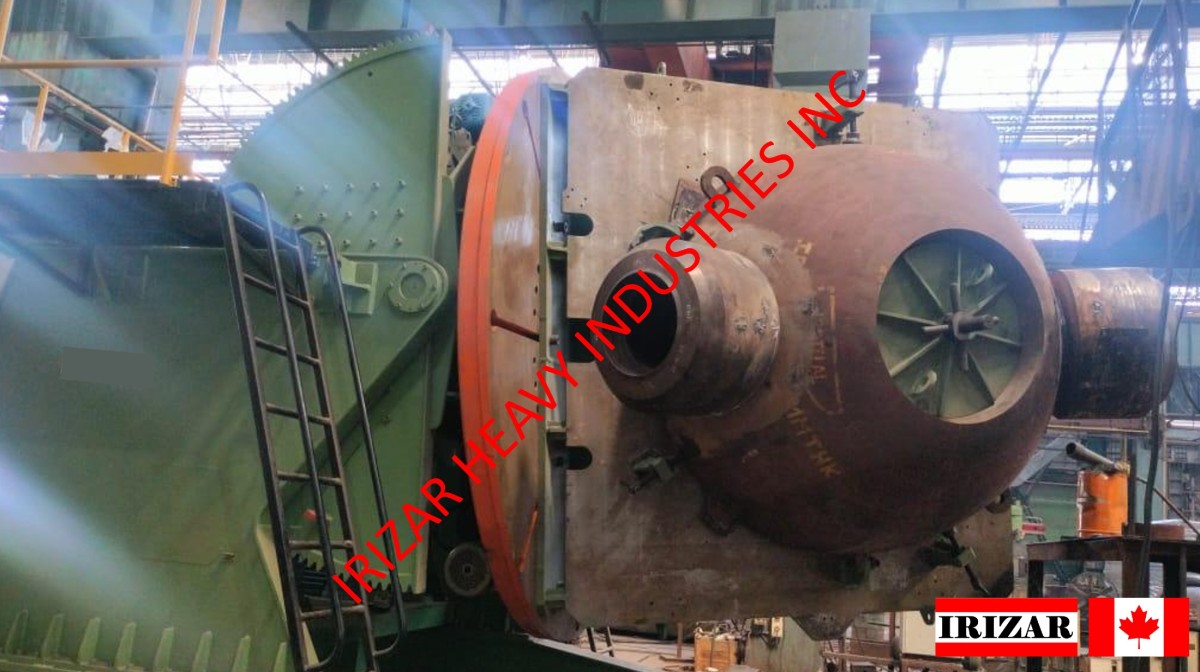

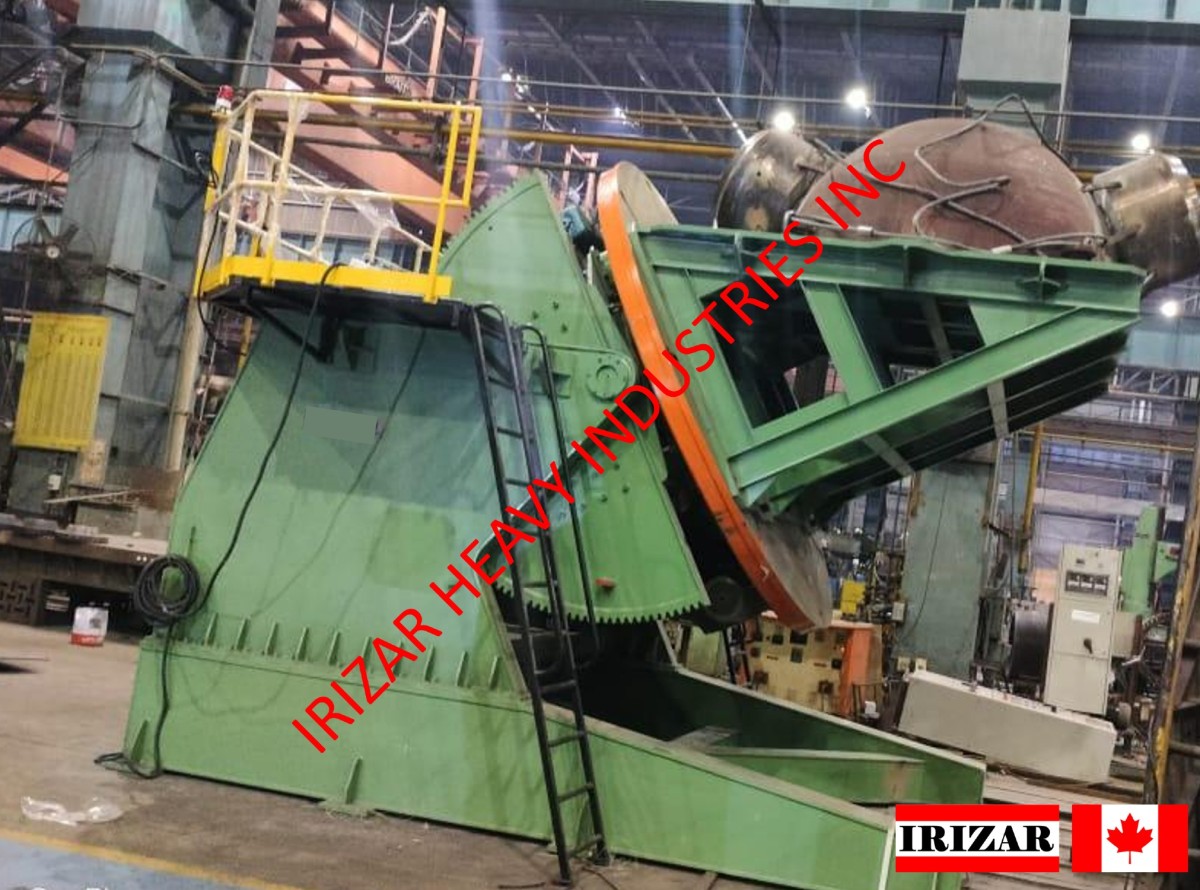

Gallery
Load Capacity
30.00 MT @ 600 mm GC
25.70 MT @ 700 mm GC
22.50 MT @ 800 mm GC
20.00 MT @ 900 mm GC
18.00 MT @ 1000 mm GC
15.00 MT @ 1200 mm GC
12.80 MT @ 1400 mm GC
11.20 MT @ 1600 mm GC
10.00 MT @ 1800 mm GC
Specifications
Eccentricity: 200 mm
Rotation speed: From 0.05 to 0.50 RPM
Tilt speed: From 0.01 to 0.10 RPM
Table diameter: 3,000 mm
Table with “T” shaped channels @ 45 degrees
Remote Control Box
Control Box: Forward/Stop/Reverse/Wireless Speed Adjustment with digital display
Foot control: Included
Max work piece diameter @ 90 degrees tilt: 3,400 mm
Tilt Angle: 0 to 135 degrees
Power Rotation: 7.50 kW
Power Tilt: 11.00 kW
Estimated Weight: 18.00 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Accessories
Three-Jaw Self-Centering Welding Gripper Chucks
Model 3J-615-1T: 85 to 615 mm Ø
Model 3J-1080-1T: 85 to 1,080 mm Ø
Model 3J-1250-2T: 200 to 1,250 mm Ø
Model 3J-1500-3T: 200 to 1,500 mm Ø
Irizar Chucks are designed for welding at low speed, not for use on a lathe at high speed.
Idler Pipe Stands
Model IPS-2 MT: 50-1500 mm Ø, 780-1390 mm height
Model IPS-4 MT: 50-1500 mm Ø, 900-1570 mm height
Model IPS-8 MT: 50-1500 mm Ø, 1000-1600 mm height
