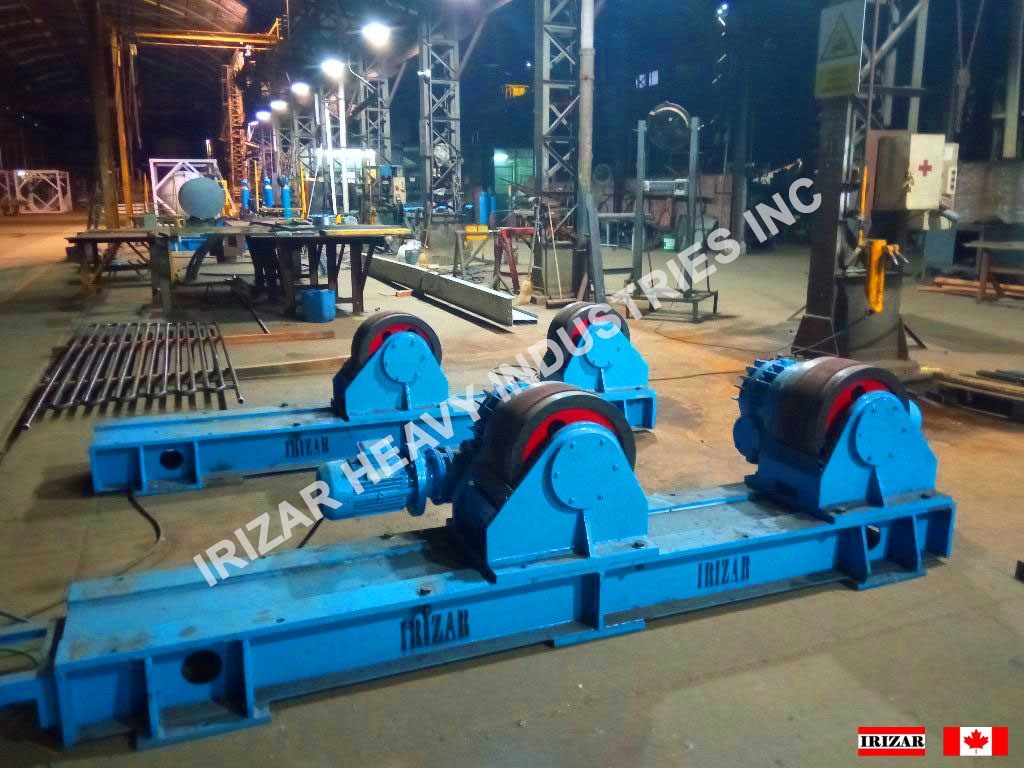

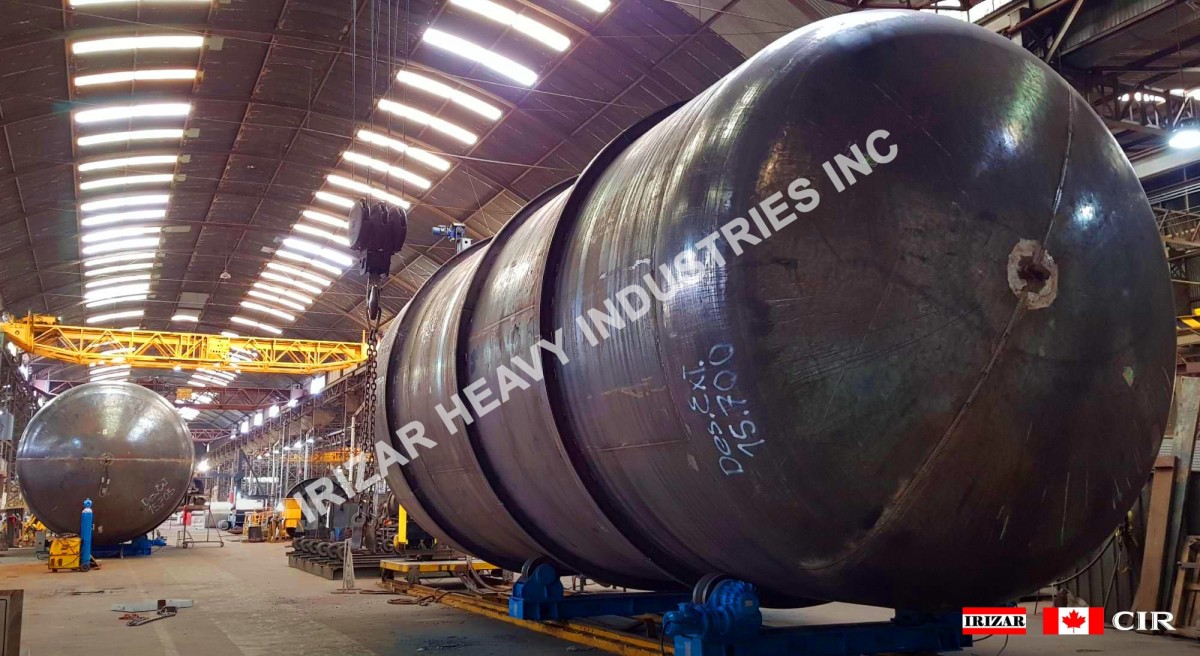

Irizar WR 60 Tank Turning Rolls are 60 MT capacity conventional welding rotators designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The WR 60 includes one power rotator and one idler rotator, providing a combined loading/maximum rotation capacity of 60 MT.
Our tank turning rolls are available from stock in capacities ranging from 3 MT to 2,500 MT.
Including: 3 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 400 | 600 | 800 | 1,200 | 2,500 MT
Additional capacities available upon request: 1,000 | 1,600 | 2,000 MT
Available in Stock:
The world's largest selection of tank turning rolls.
The world's largest 2,500 MT capacity welding rotator.

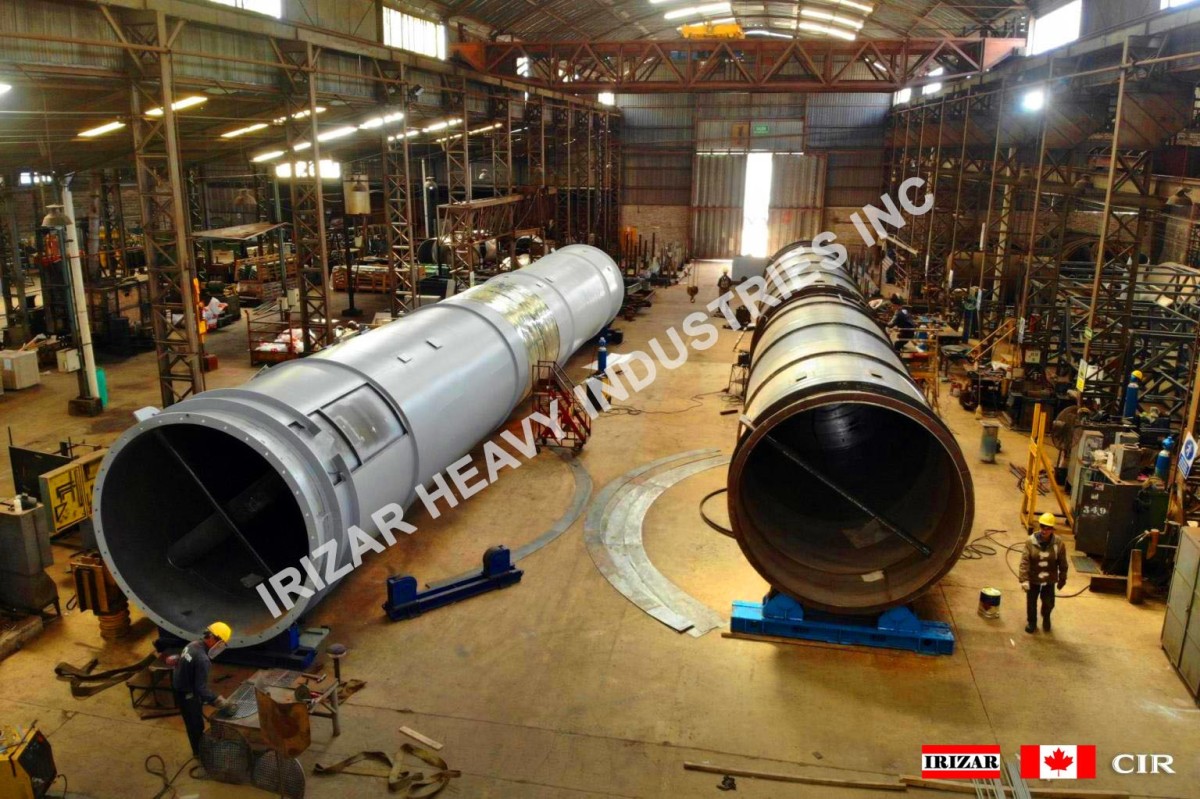

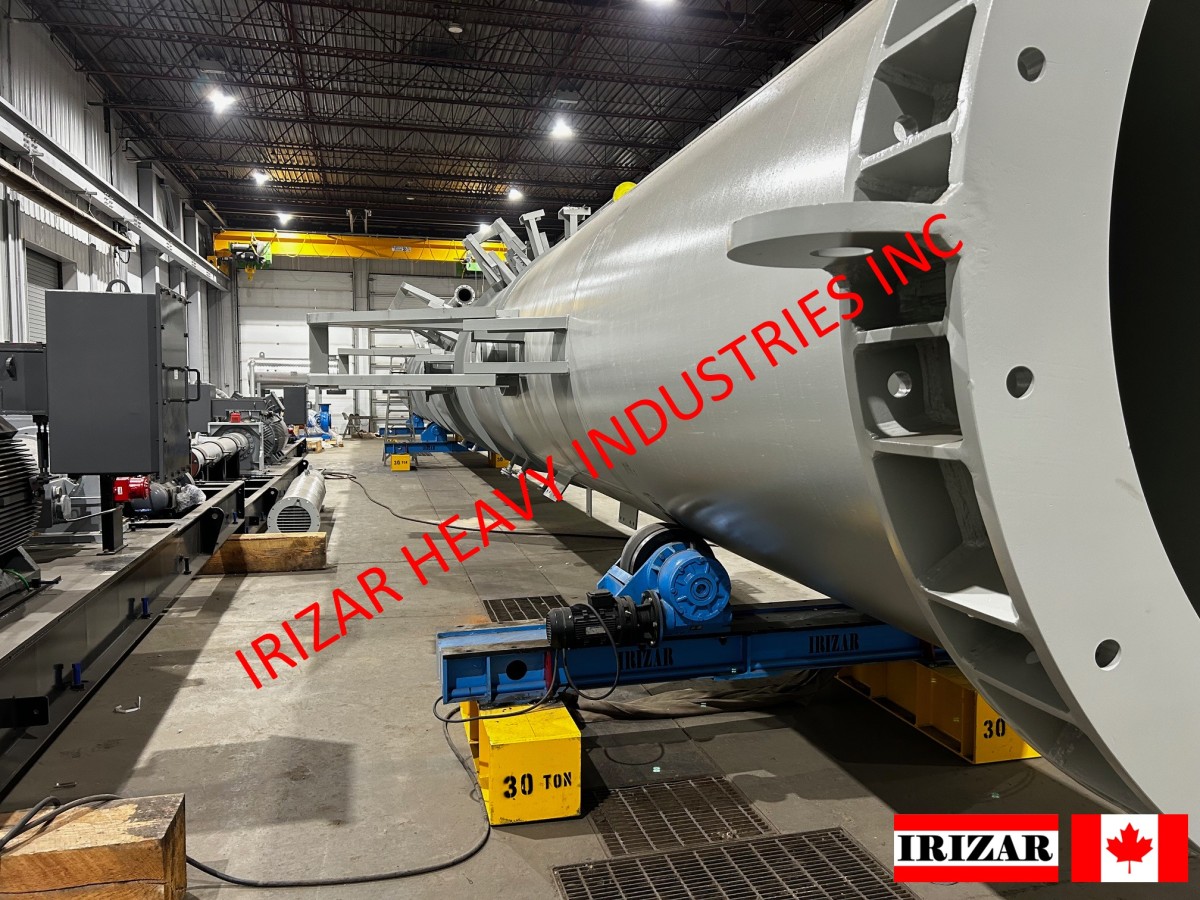

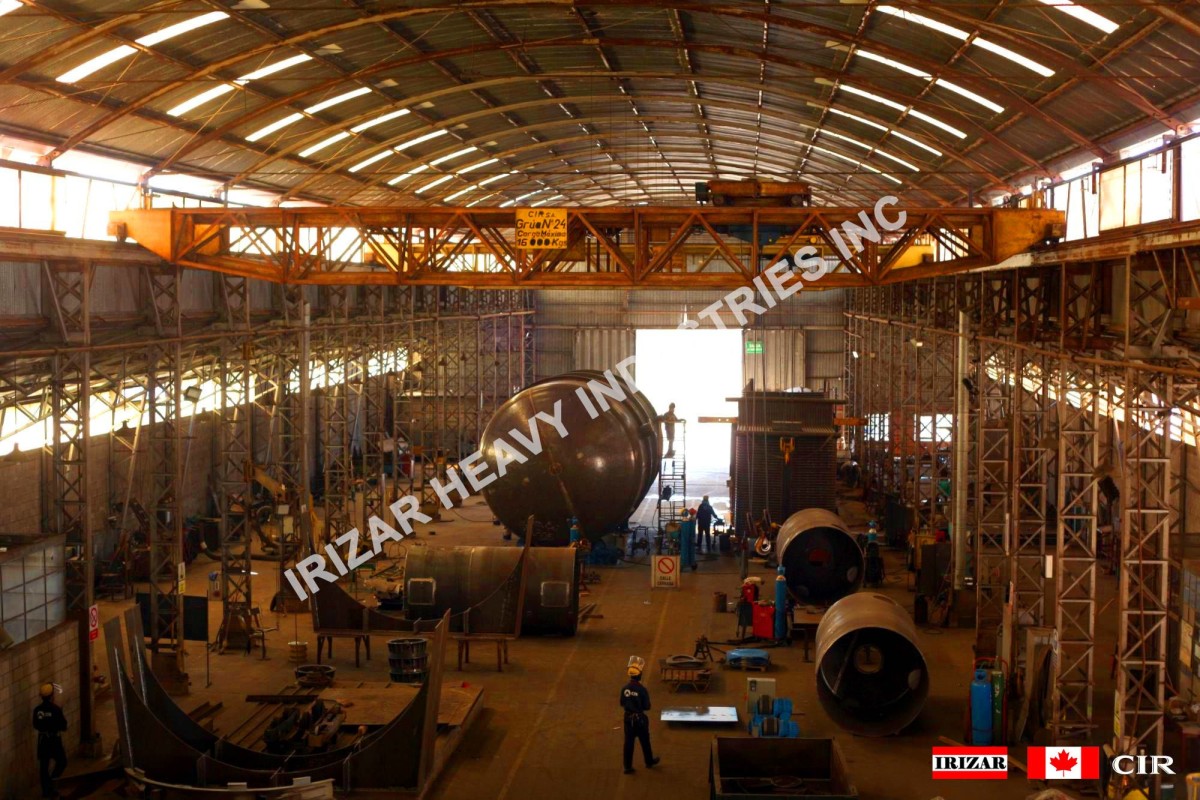

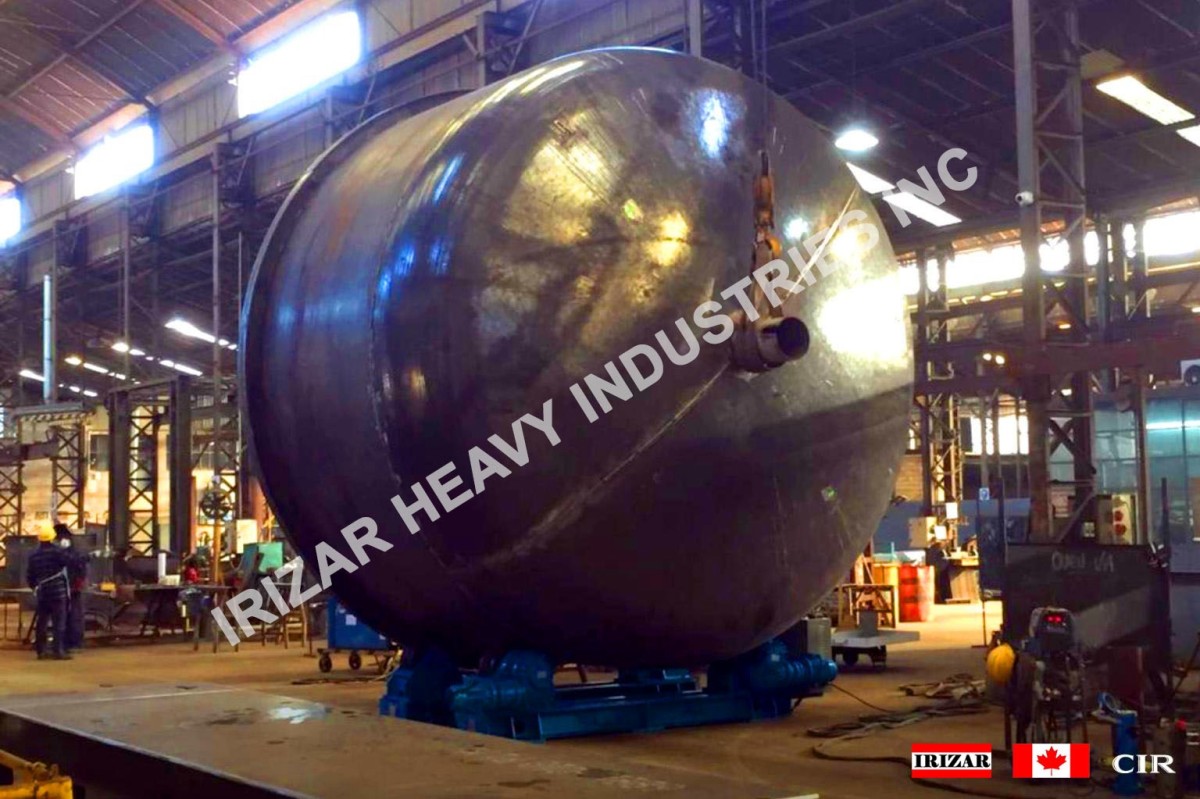

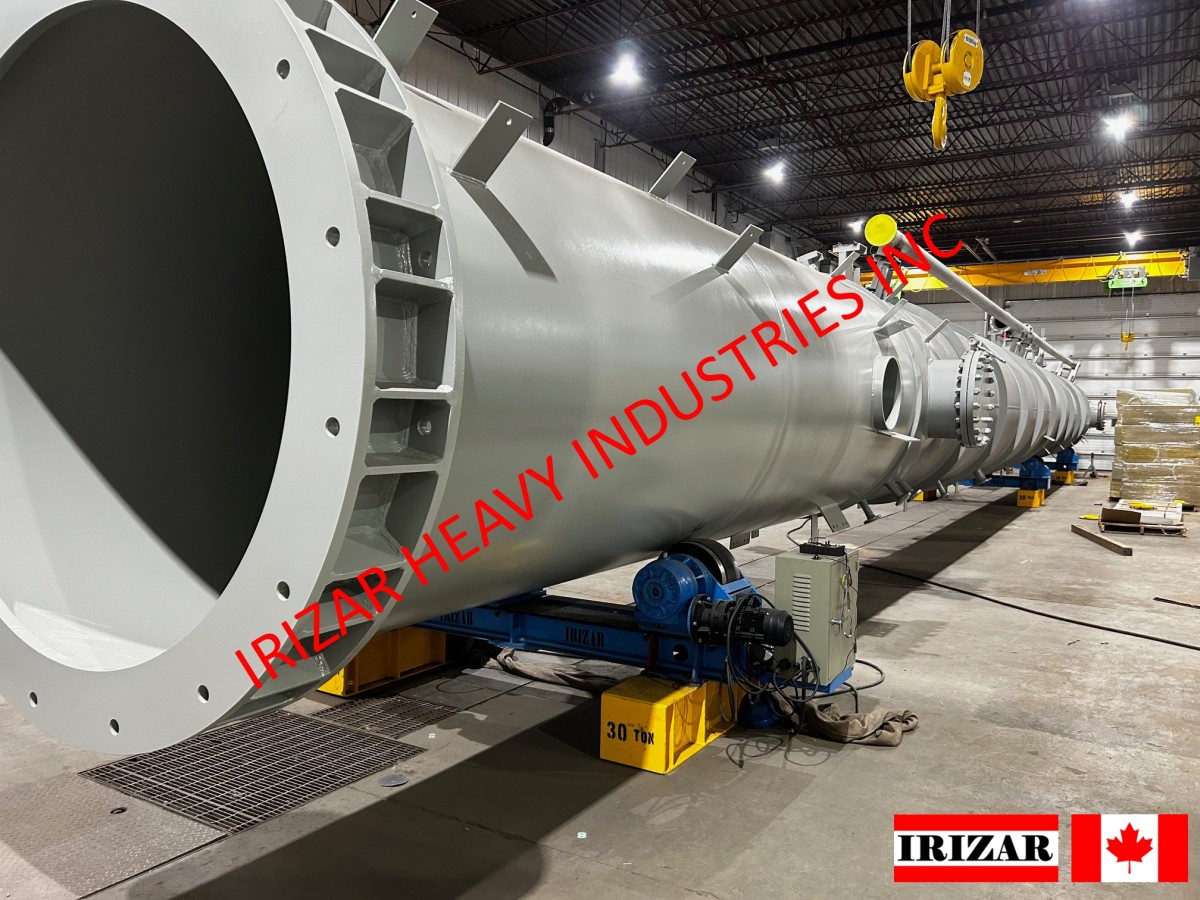

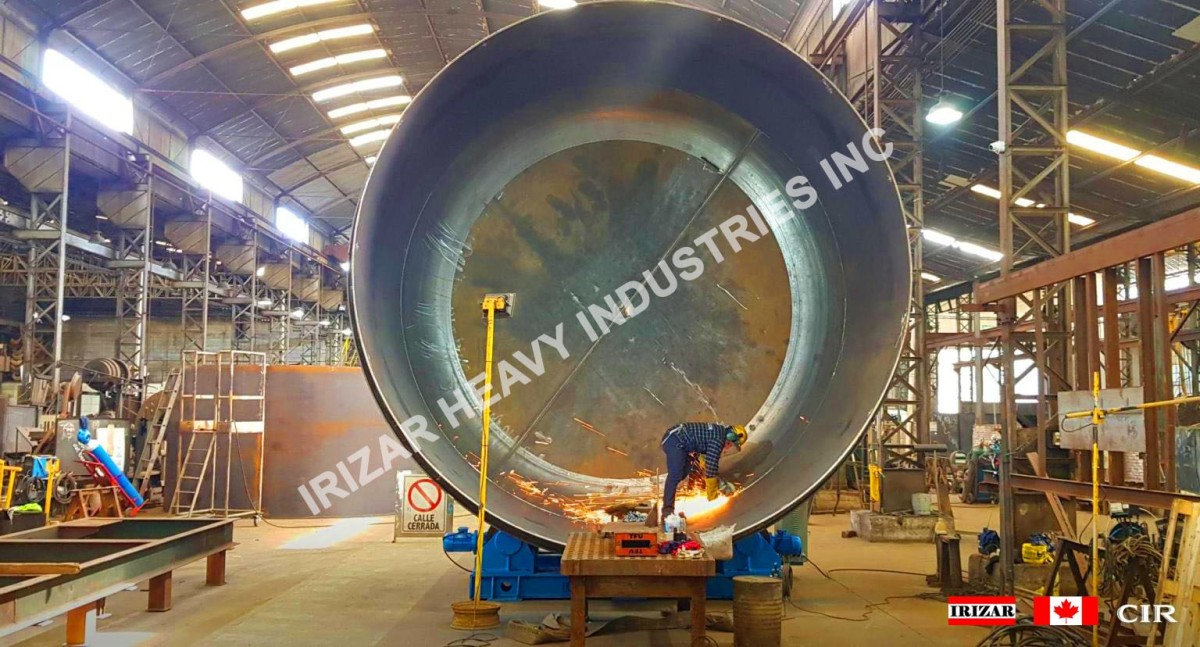

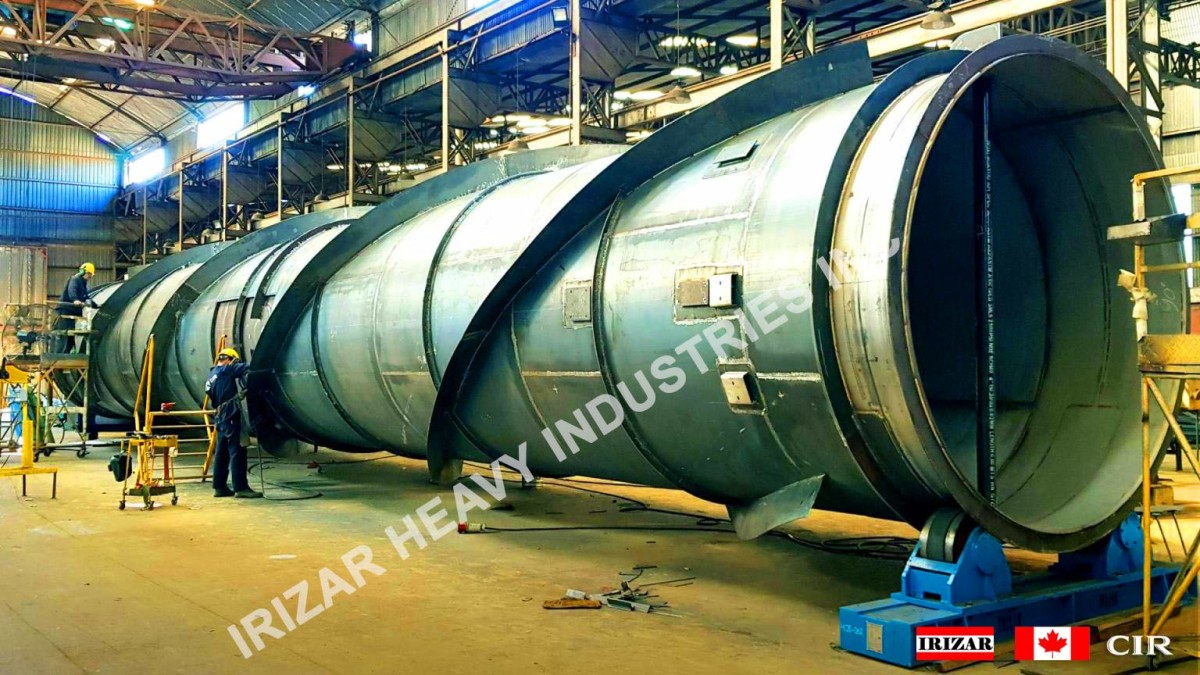

Gallery
Specifications
Power Rotator Max Rotation Capacity: 60 MT
Power Rotator Max Load Capacity: 30 MT
Idler Rotator Max Load Capacity: 30 MT
Vessel Diameter Range: From 300 mm up to 5,000 mm
Variable Speed: From 100 up to 1,000 mm/minute
Remote Control Box with 12 m cable:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 2.20 kW @ 2
Wheel Diameter: 450 mm
Wheel Width: 220 mm
Estimated Weight: 2.40 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
