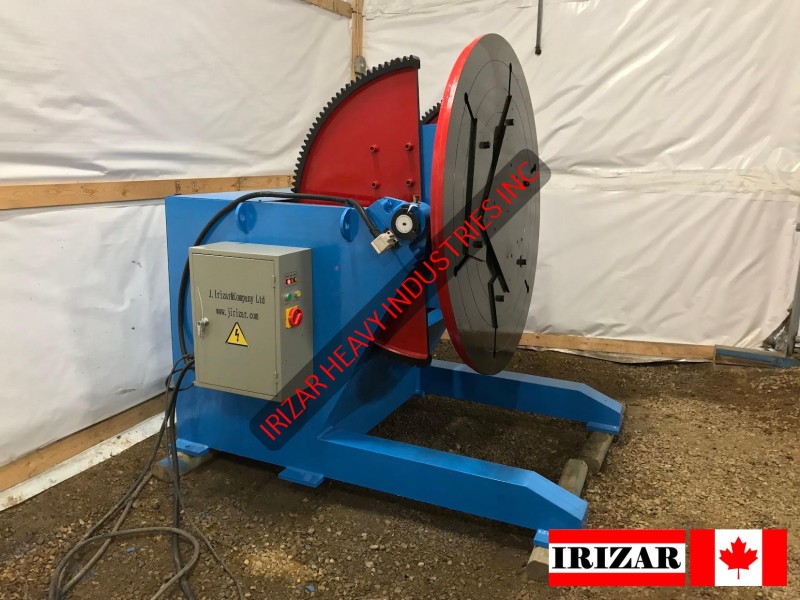

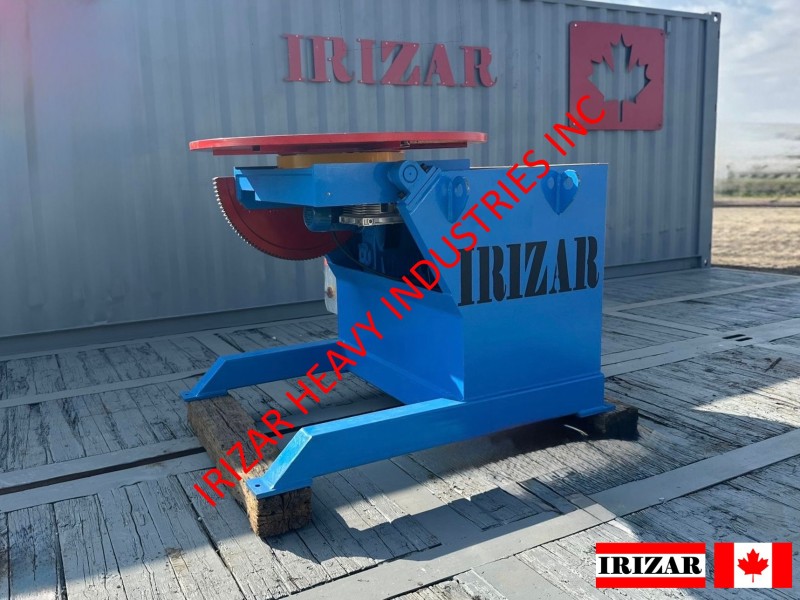

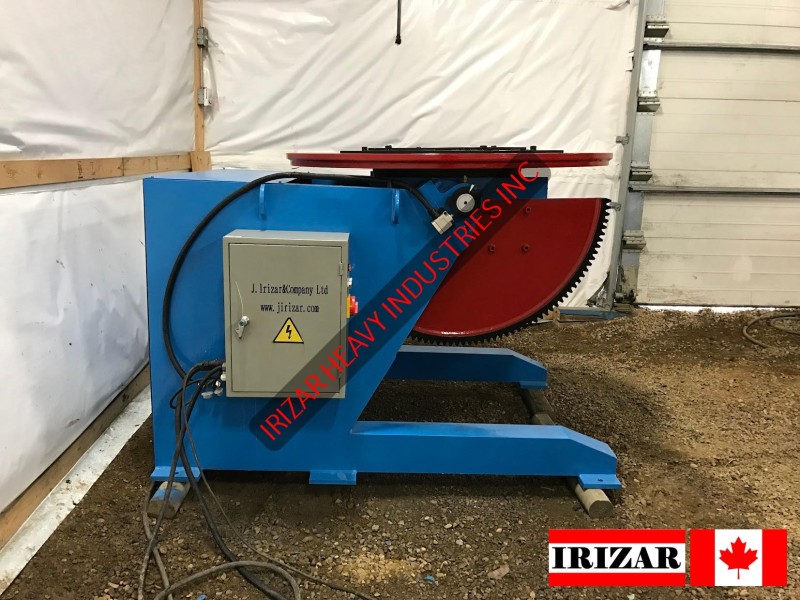

Irizar Heavy Industries Inc. is a Canadian company based in Edmonton. We take pride in manufacturing and stocking Welding Positioners, also known as Weld Positioners. These devices move the workpiece under the welding process equipment, whereas Welding Manipulators move the equipment over the workpiece. The Positioner offers powered 360° variable-speed rotation and table tilt, ranging from horizontal to 120°.
Frequently Asked Questions (FAQ), Knowledge Base (KB), Quality Assurance (QA)
Load Capacity:
1000 Kilos @ 250 mm GC
625 Kilos @ 400 mm GC
500 Kilos @ 500 mm GC
416 Kilos @ 600 mm GC
357 Kilos @ 700 mm GC
312 MT @ 800 mm GC
Specifications:
Eccentricity: 200 mm
Rotation speed: From 0.05 to 0.5 RPM
Tilt speed: From 0.80 RPM
Table diameter: 1,200 mm
Table with “T” shaped channels @ 45 degrees
Remote Control Box
Control Box: Forward/Stop/Reverse/Speed Adjustment with digital display
Foot control: Included
Max work piece diameter @ 90 degrees tilt: 2,000 mm
Tilt Angle: 0 to 120 degrees
Power Rotation: 1.10 kW
Power Tilt: 1.50 kW
Estimated Weight: 1.0 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
