Irizar SAR 5 Self-Aligning Welding Rotators are 5 MT capacity self-aligning tank turning rolls designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The SAR 5 includes one power rotator and one idler rotator, providing a combined maximum loading and rotation capacity of 5 MT. Its self-aligning wheel design automatically adjusts to accommodate different workpiece diameters, reducing setup time and improving workpiece support during rotation.
Our self-align turning rolls are available from stock in capacities ranging from 5 MT to 500 MT.
Including: 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 500 MT
Available in Stock: The world's largest selection of self align tank turning rolls.

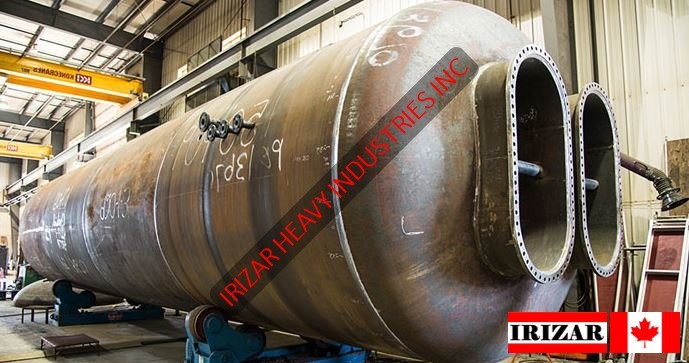

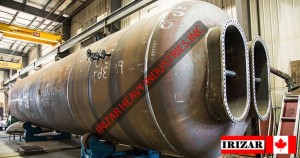

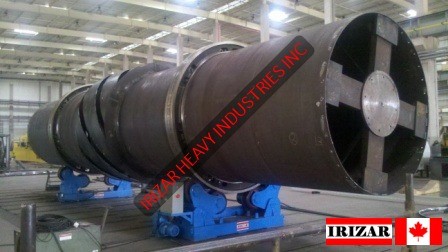

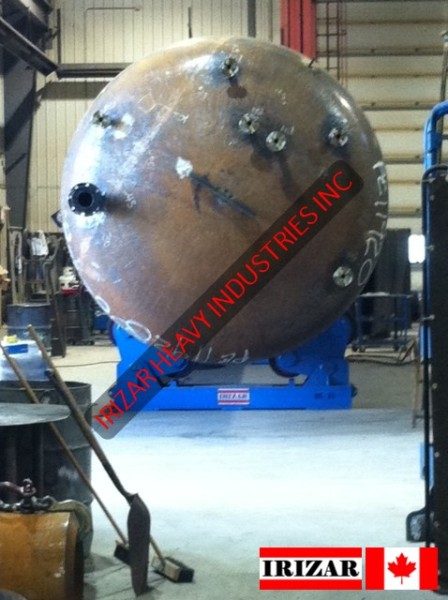

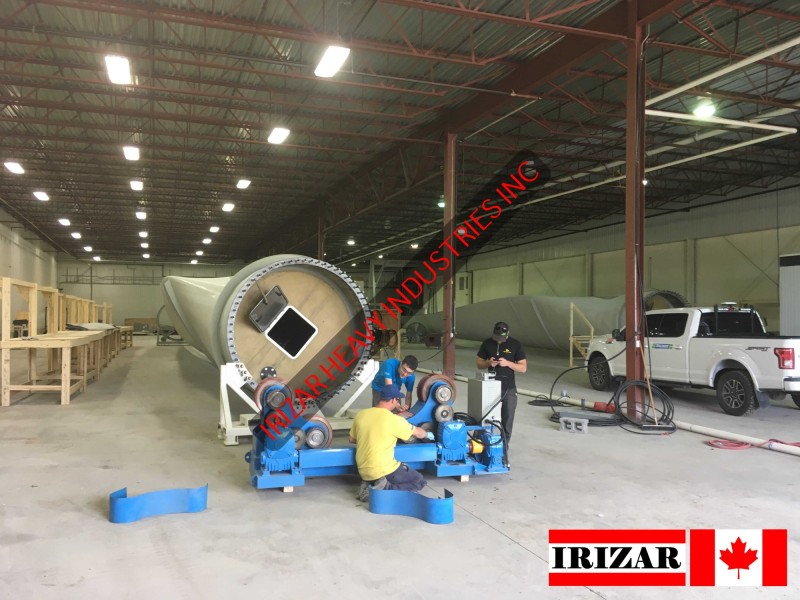

Gallery
Capacity
The vessel sits on four wheels
Full Load Capacity
Vessel Diameter Range: From 770 to 2,300 mm.
Power Rotator Max Rotation Capacity: 5 MT
Power Rotator Max Load Capacity: 2.50 MT
Idler Rotator Max Load Capacity: 2.50 MT
The vessel sits on two bottom wheels
Half Load Capacity
Vessel Diameter Range: From 250 to 750 mm.
Power Rotator Max Rotation Capacity: 2.50 MT
Power Rotator Max Load Capacity: 1.25 MT
Idler Rotator Max Load Capacity: 1.25 MT
Specifications
Variable Speed: From 100 to 1,000 mm/minute
Remote Control Box with 6 m cable:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 0.75 kW
Wheel Diameter: 250 mm
Wheel Width: 140 mm
Estimated Weight: 0.85 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
