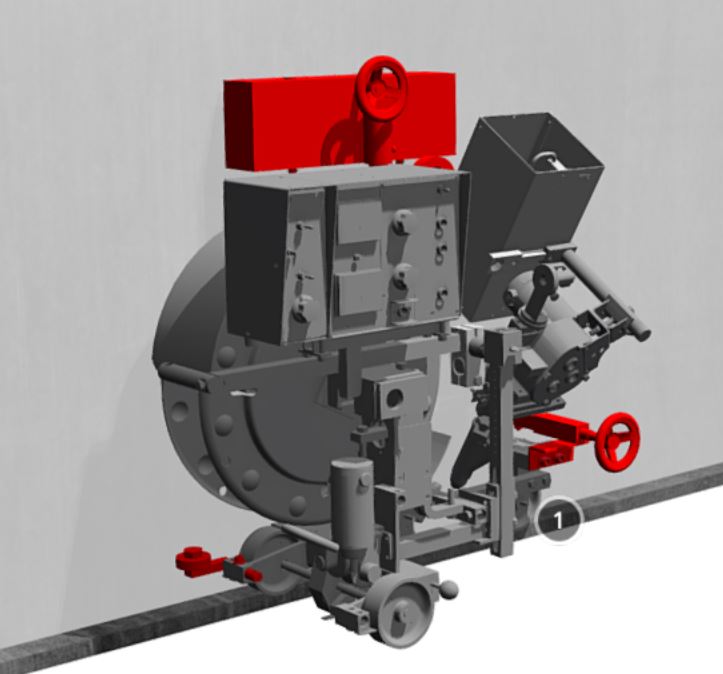

SAW Welding Tractor is a self-propelled Tractor with an Electric Flux Recovery System and a Magnetic Device. The Tractor applies Submerged Arc Welding, commonly abbreviated SAW process, for either butt or fillet welds. The Irizar Magnetic Device is required for both applications.
Supply Scope:
1. Irizar SAW Welding Tractor
2. Lincoln PowerPlus 1000 HD (380/480/3/50/60)
3. Lincoln Welding Control
4. Welding Head
5. Electric Flux Recovery System
6. Magnetic Device
Optional: Welding Cables of 120 mm² x 30 m
SAW Welding on H & I Beams Application:
1. H Beams: Also known as Wide Flanges or Universal Columns.
2. I Beams: Referred to as Universal Beams or Rolled Steel Joists.
Specifications:
Minimum beam web: 750 mm (29.5")
Maximum beam length: No limit
Minimum beam flange: 50.8 mm (2")
Packing (m): 0.60 (L) x 0.40 (W) x 0.28 (H) @ 17 kg
SAW Welding on Cranes Application:
1. Beam Cranes: This includes jib cranes and monorail cranes.
2. Bridge Cranes: Such overhead travelling cranes, overhead bridge cranes, or EOT cranes.
Specifications:
Minimum beam flange: 50.8 mm (2")
Packing (m): 0.60 (L) x 0.40 (W) x 0.28 (H) @ 17 kg
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America & Worldwide: Two weeks
