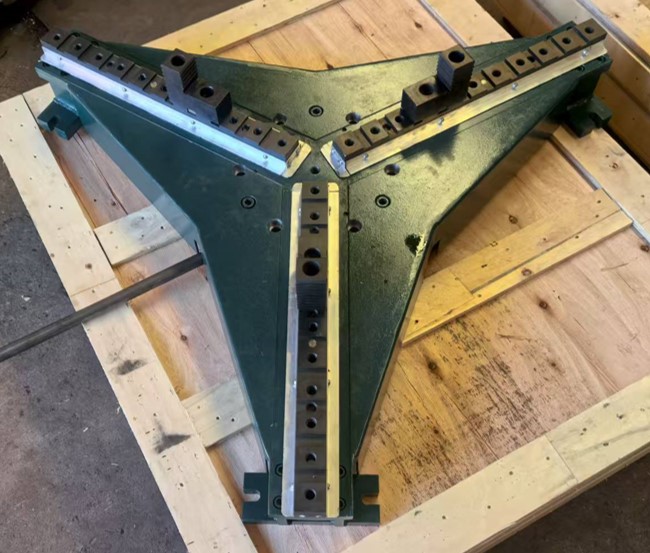

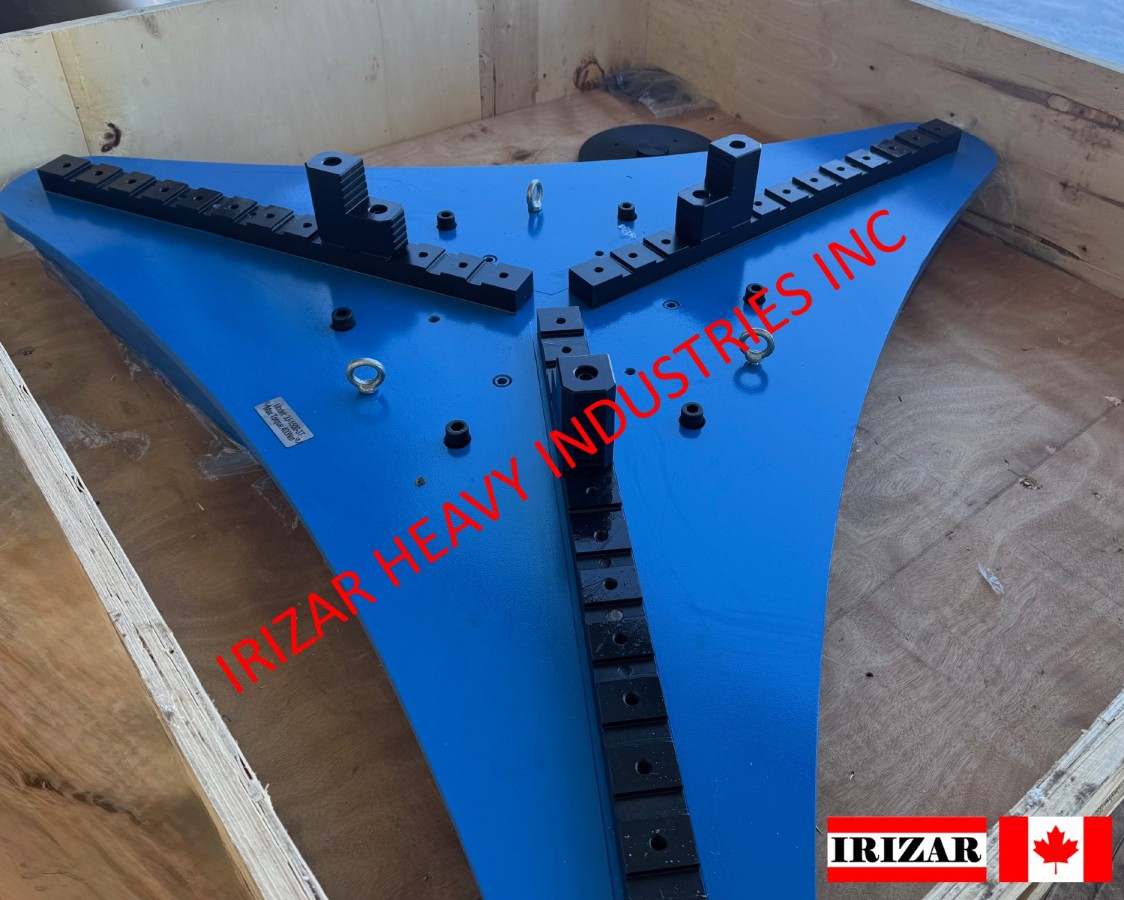

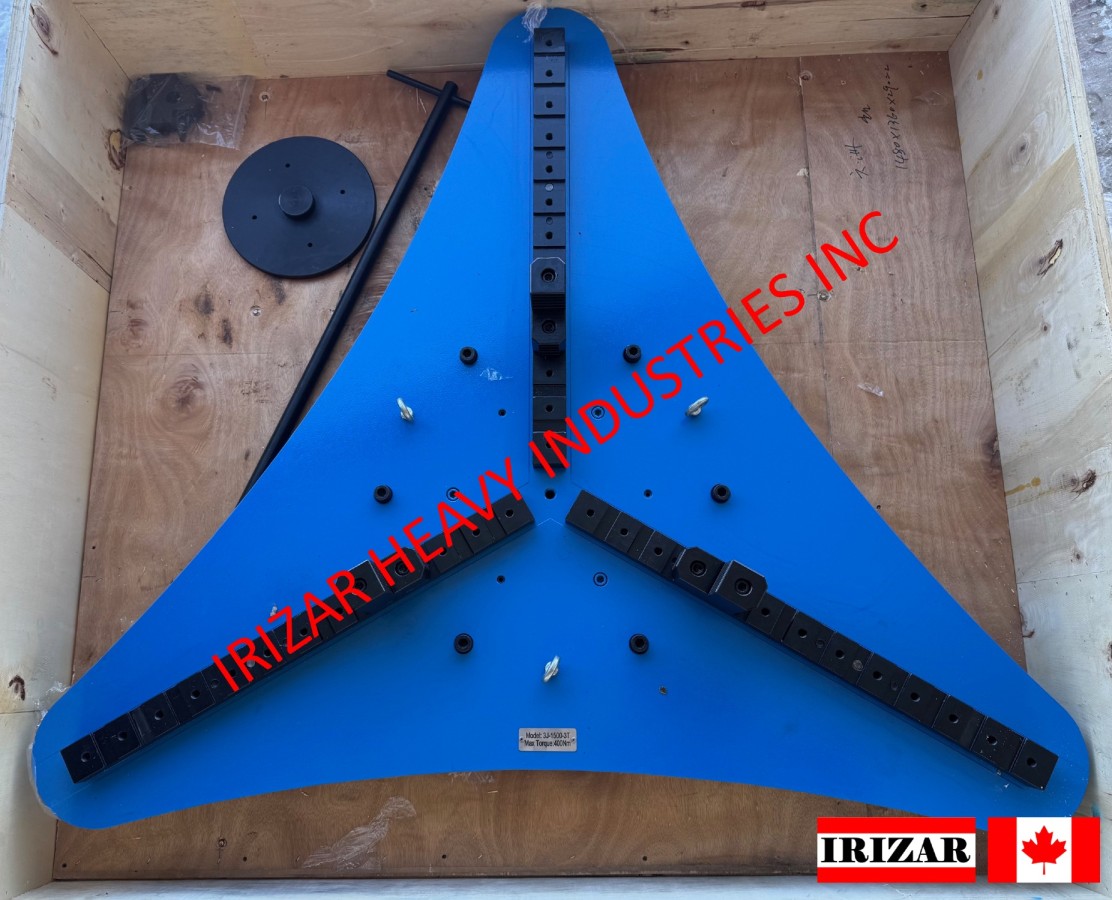

Three-Jaw Self-Centring Gripper Welding Chuck
Model 3J-1500-3T
Specifications:
Inner Jaw Clamping Range OD: 200 – 1360 mm
Outer Jaw Clamping Range OD: 380 - 1500 mm
Max load capacity: 3 MT @ 5” from table surface
Max In Torque (N-m): 400
Max Clamp Force (kN): 65
Mounting holes (mm): M20*150 @ Nos 6
Swing diameter: 1700 mm
Weight: 380 kg
Three-Jaw Self-Centring
Welding Gripper Chucks Models
Model 3J-615-1 MT: 85 to 615 mm Ø
Model 3J-1080-1 MT: 85 to 1,080 mm Ø
Model 3J-1250-2 MT: 200 to 1,250 mm Ø
Model 3J-1500-3 MT: 200 to 1,500 mm Ø
Notes:
1. Maximum torque allowed: Check the chuck's engraved information
2. Irizar Chucks are designed for welding at low speeds, not for use at high speeds.
