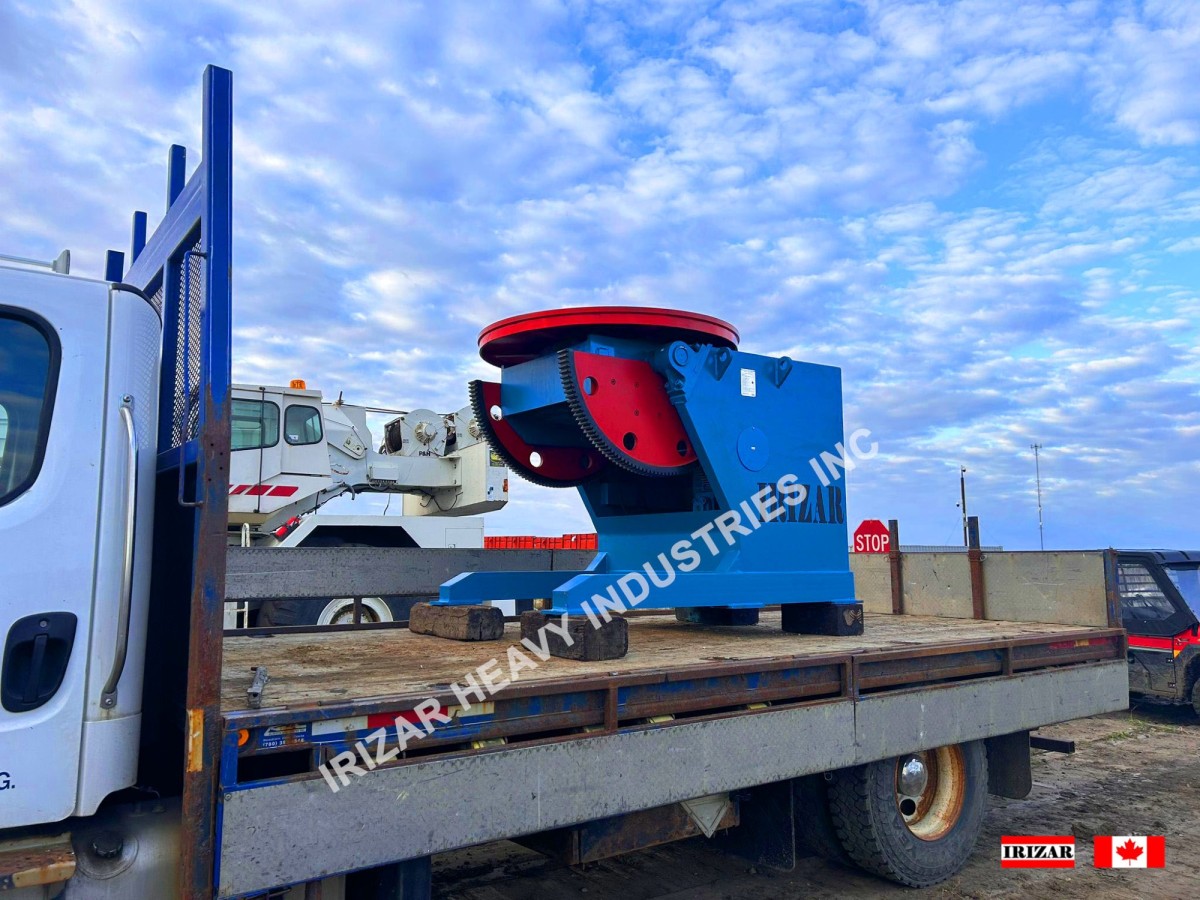

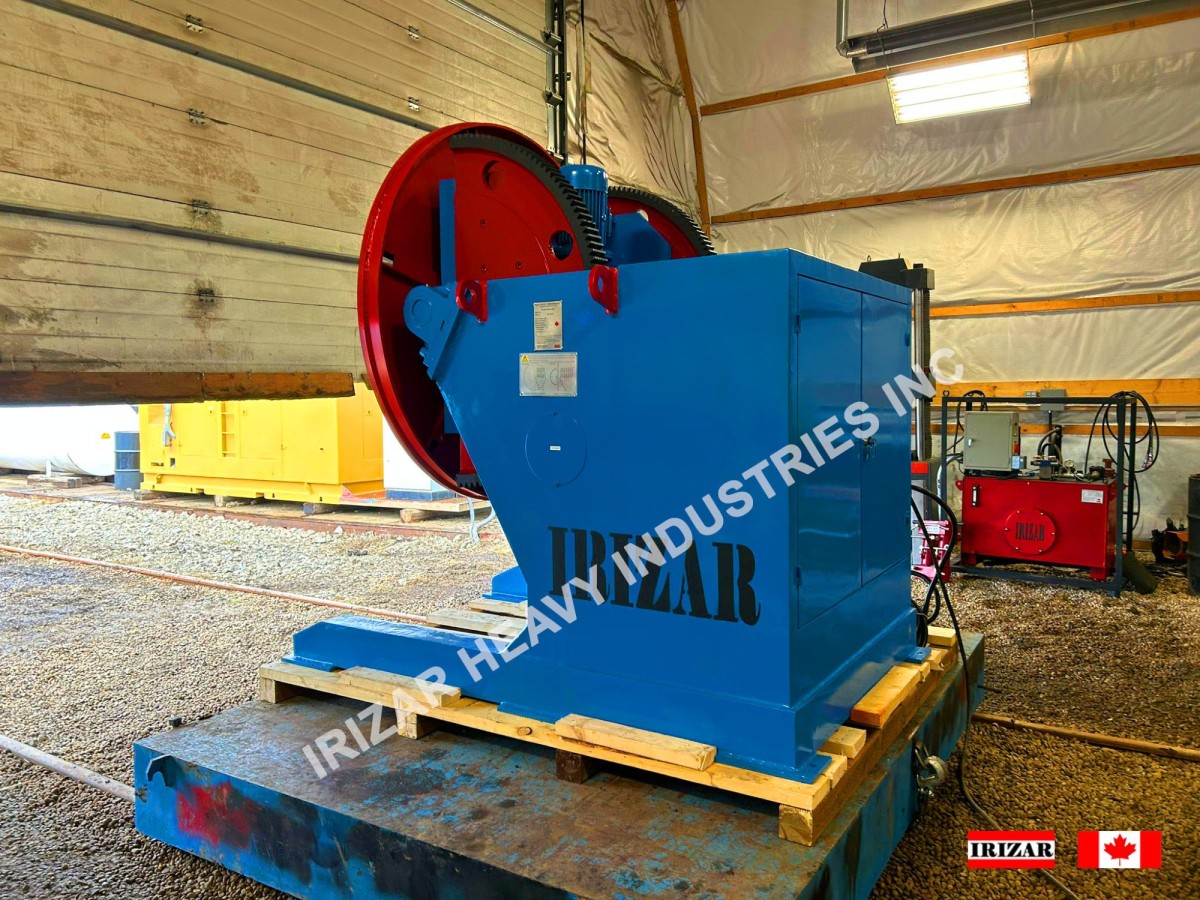

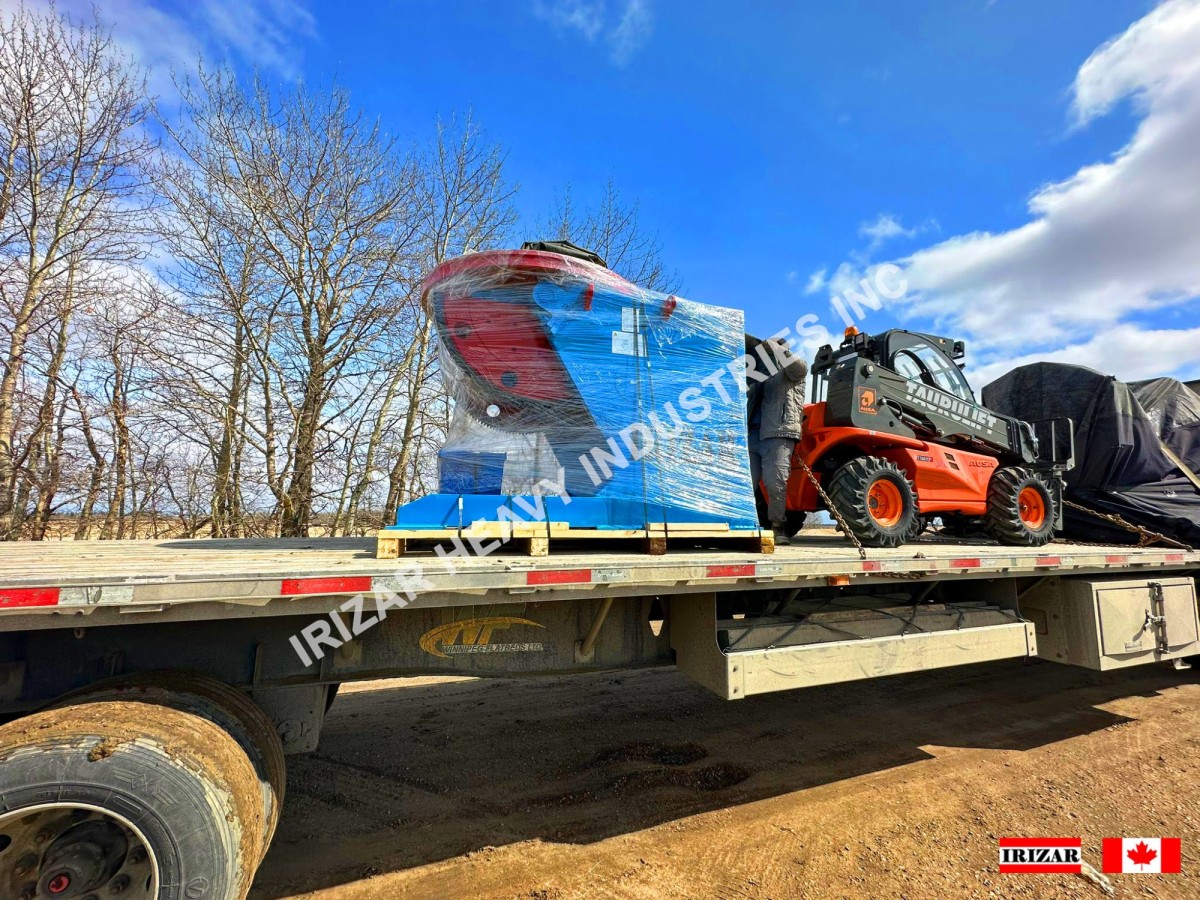

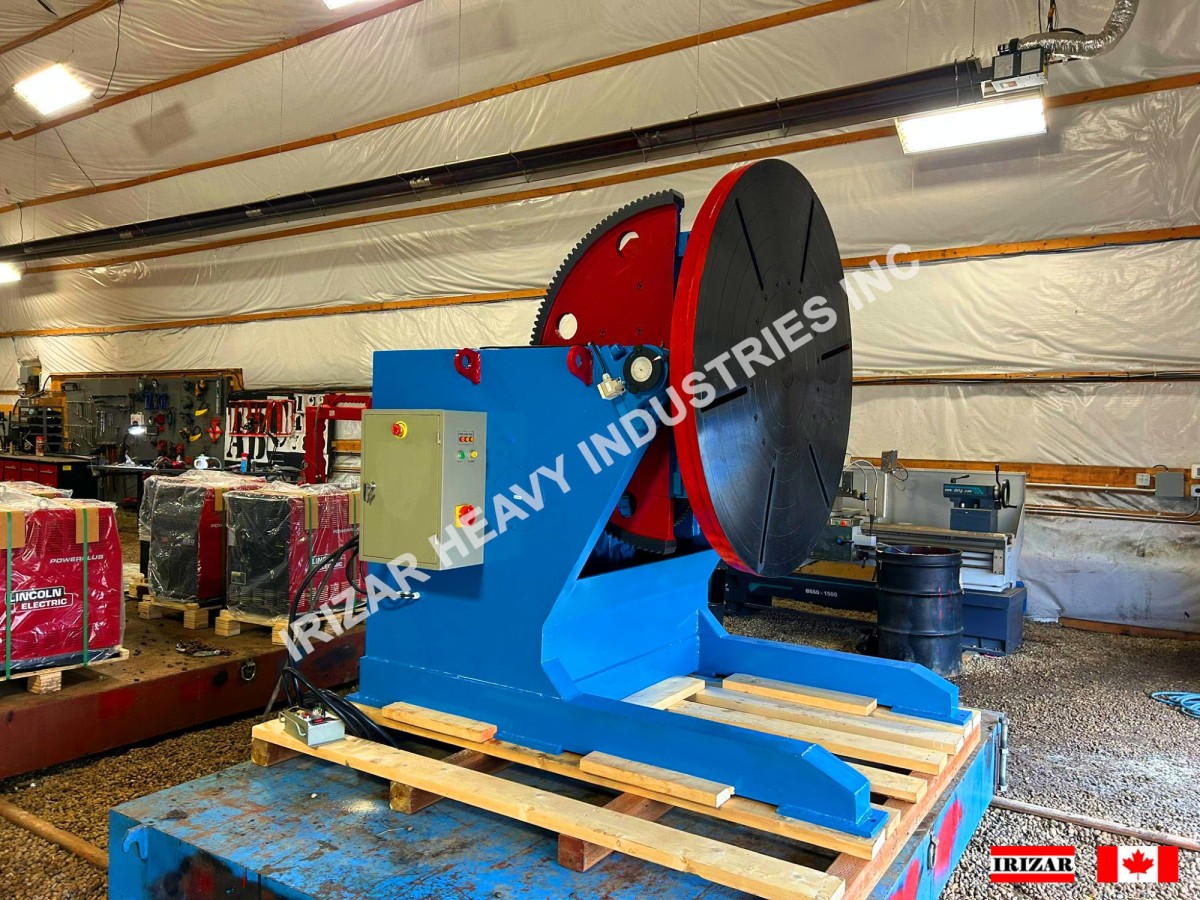

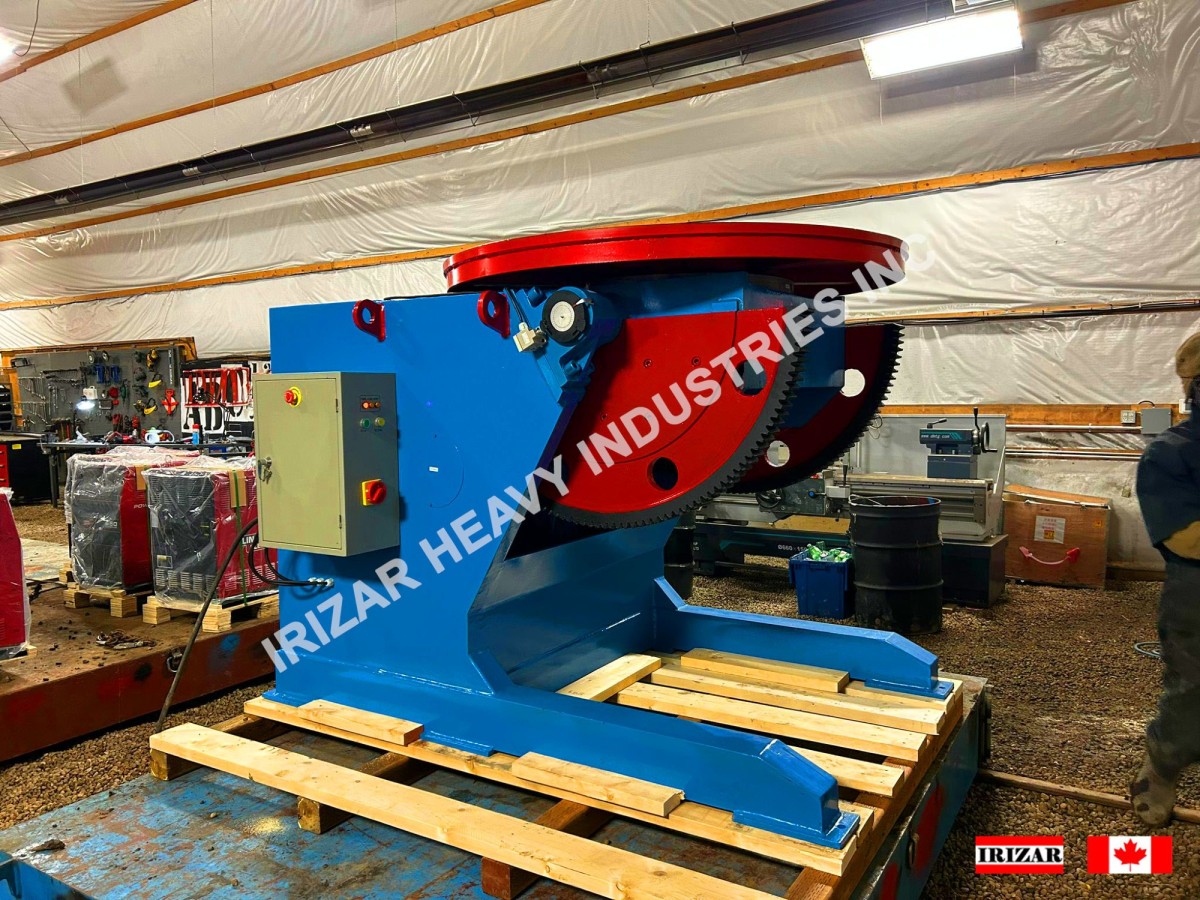

Irizar WP 5 Welding Positioner is a 5 MT capacity welding positioner designed to support, position, rotate, and tilt workpieces during welding, fabrication, assembly, and inspection. The WP 5 provides powered 360° variable-speed table rotation and powered table tilt from 0° horizontal to 120°, allowing the workpiece to be positioned at the optimum angle for welding and fabrication.
Our welding positioners are available from stock in capacities ranging from 0.6 MT to 40 MT.
Including: WP 0.6 | WP 1 | WP 3 | WP 5 | WP 10 | WP 20 | WP 40 MT
Additional capacities available upon request: WP 30, WP 50
Available in Stock: The world's largest selection of welding positioners
Gallery
Load Capacity
5.00 MT @ 300 mm GC
3.70 MT @ 400 mm GC
3.00 MT @ 500 mm GC
2.50 MT @ 600 mm GC
2.14 MT @ 700 mm GC
1.87 MT @ 800 mm GC
1.66 MT @ 900 mm GC
Specifications
Eccentricity: 200 mm
Rotation speed: From 0.05 to 0.5 RPM
Tilt speed: From 0.016 to 0.16 RPM
Table diameter: 1,500 mm
Table with “T” shaped channels @ 45 degrees
Remote Control Box
Control Box: Forward/Stop/Reverse/Wireless Speed Adjustment with digital display
Foot control: Included
Max work piece diameter @ 90 degrees tilt: 2,500 mm
Tilt Angle: 0 to 120 degrees
Power Rotation: 2.20 kW
Power Tilt: 3.00 kW
Estimated Weight: 3.70 MT
Warranty: One year
Operation Manual & Electric Diagram: Included

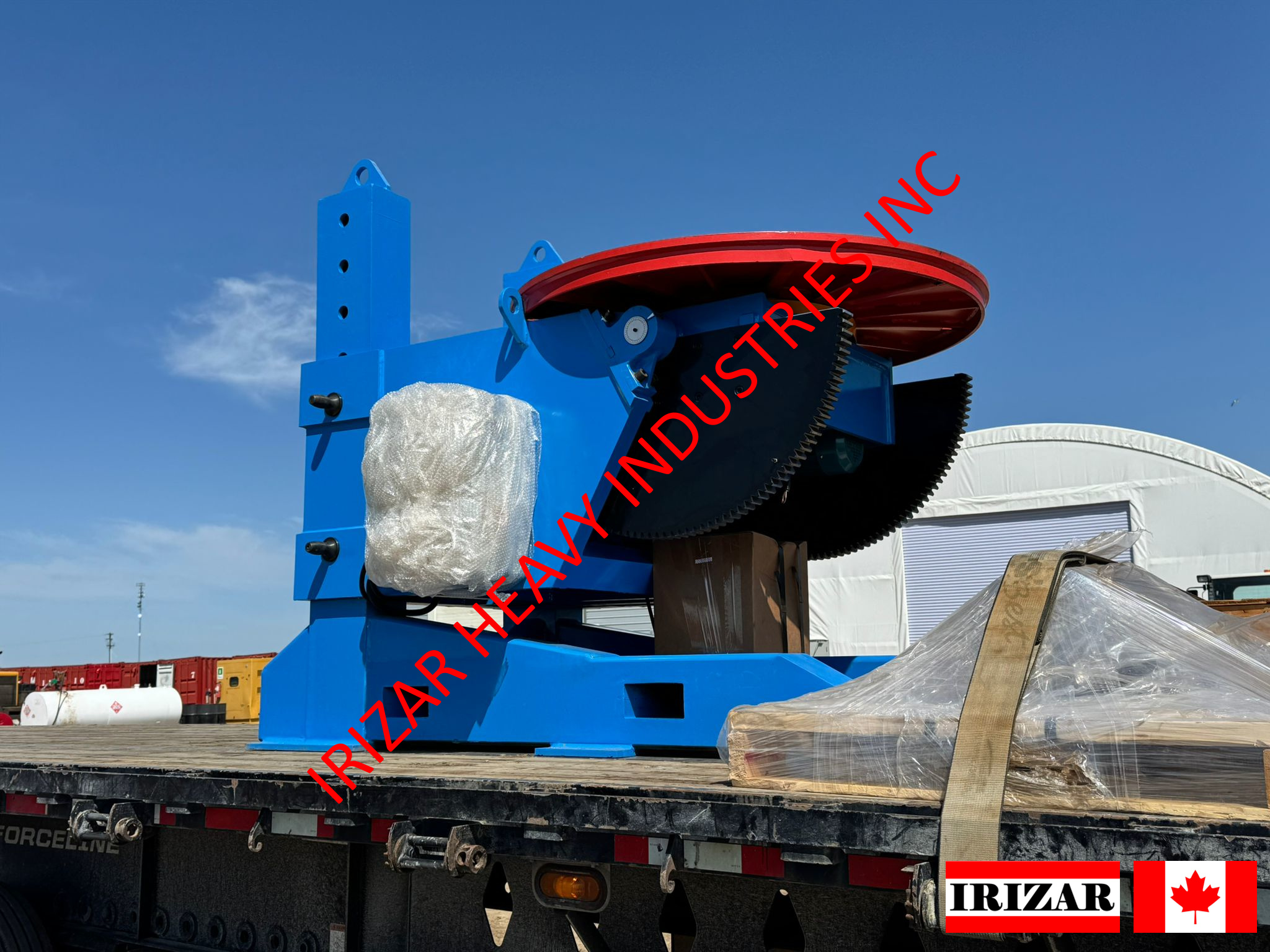

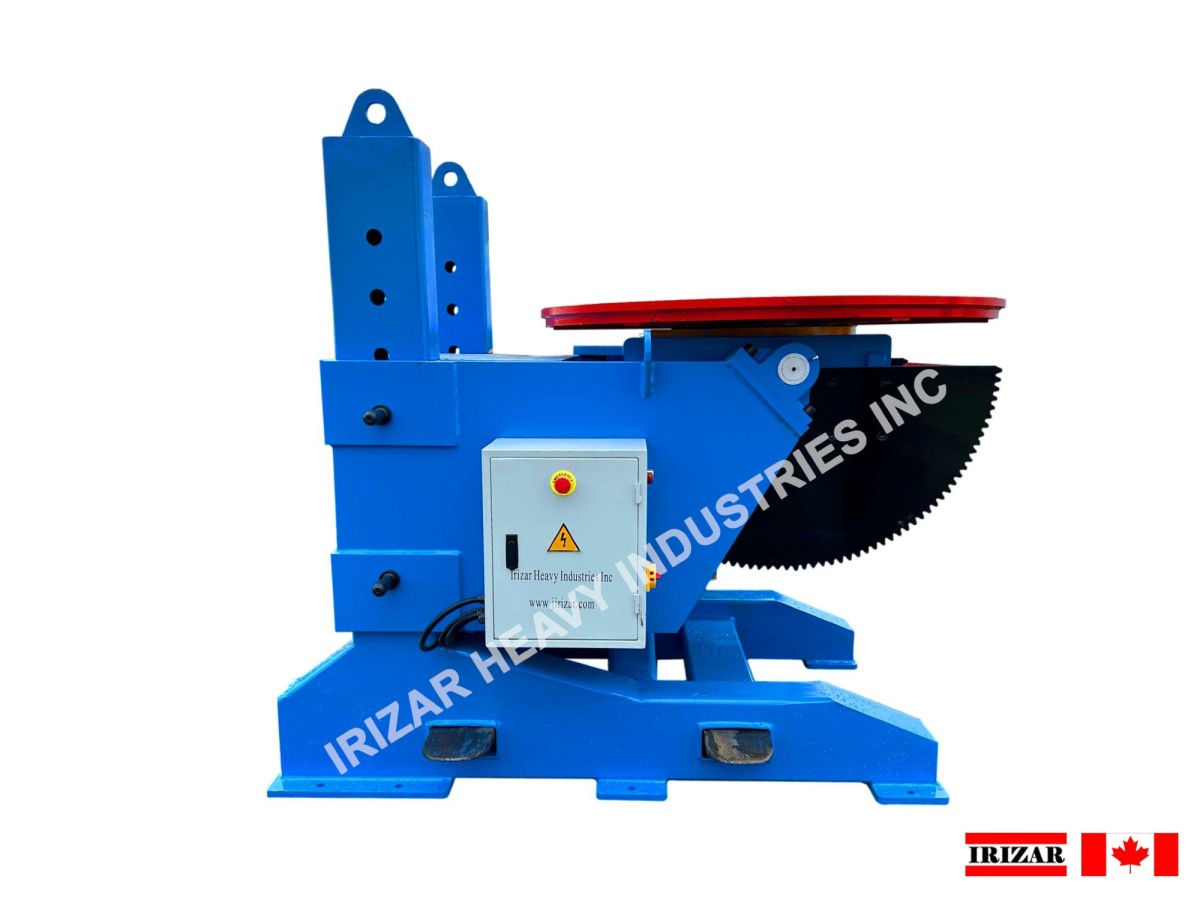

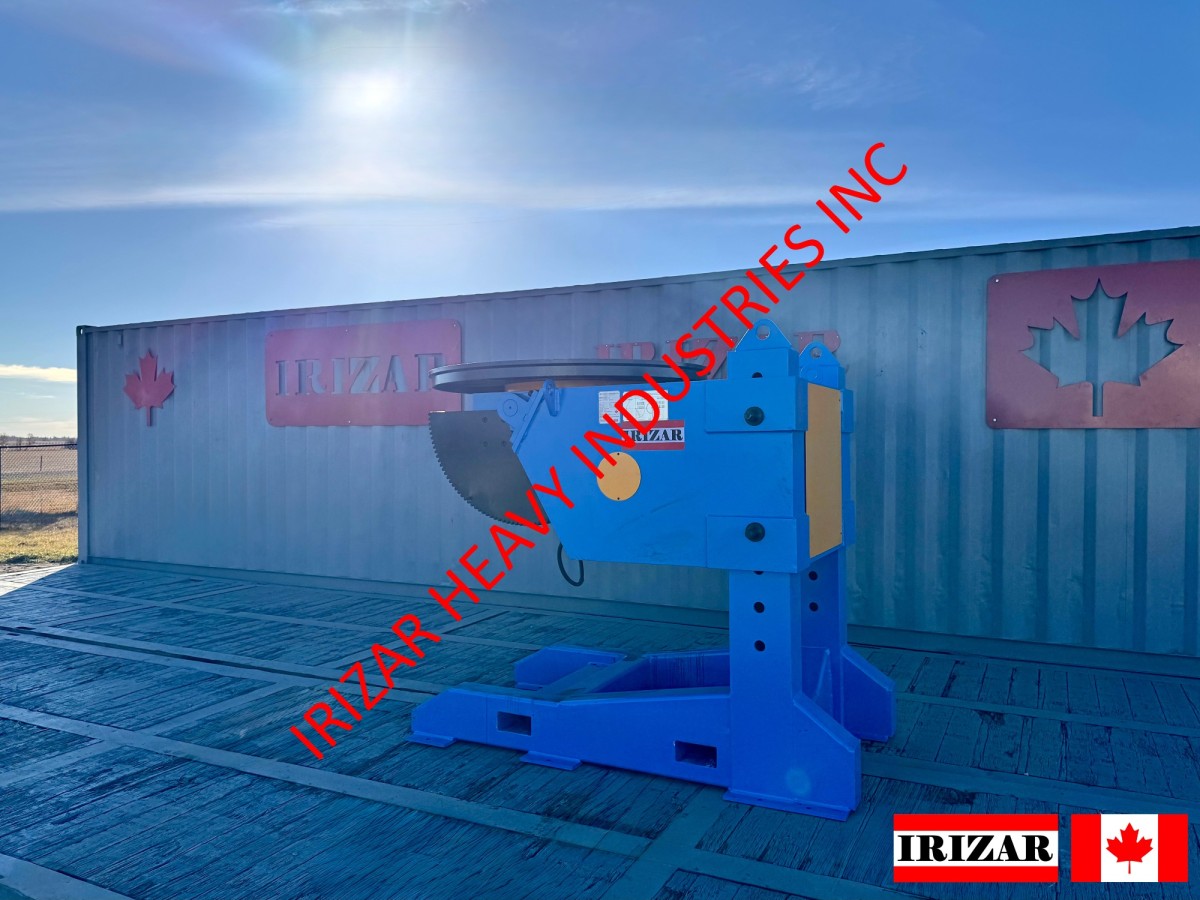

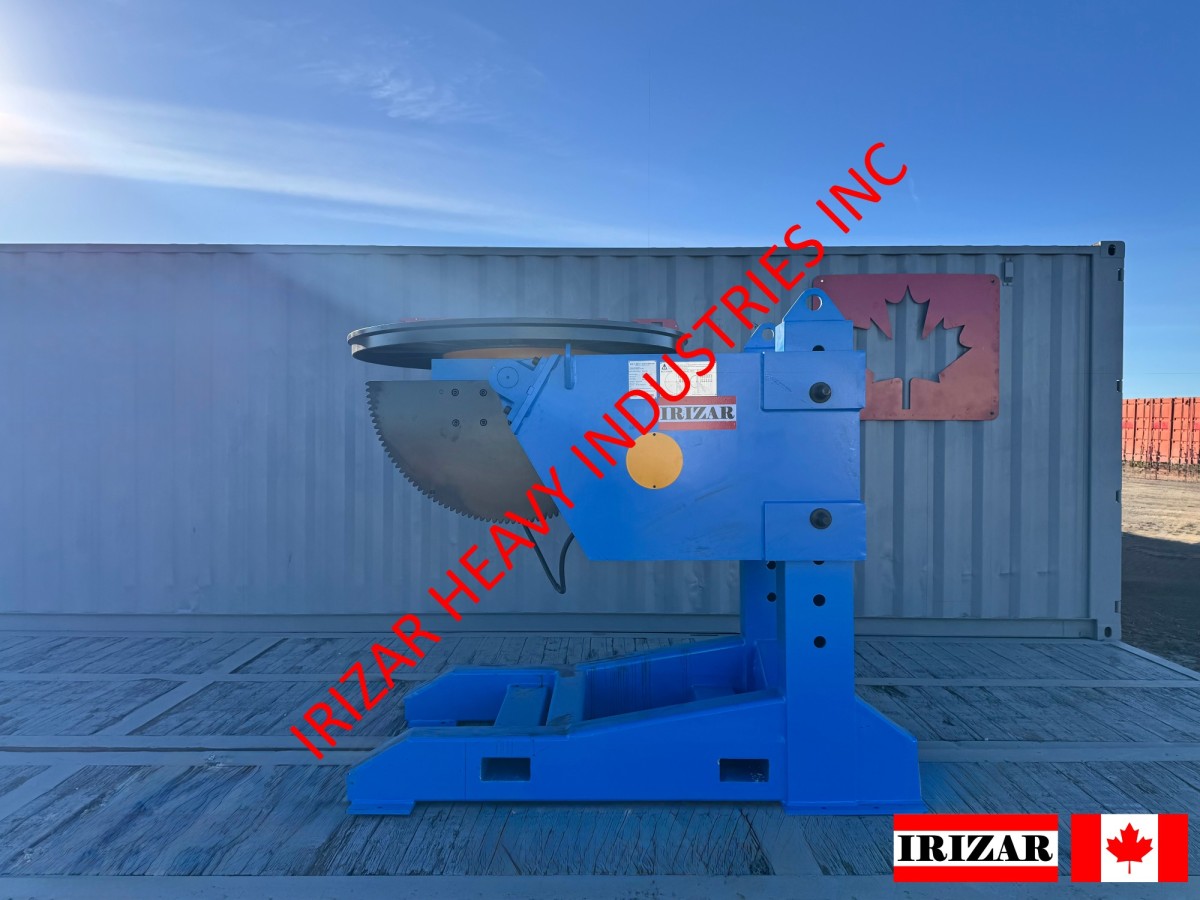

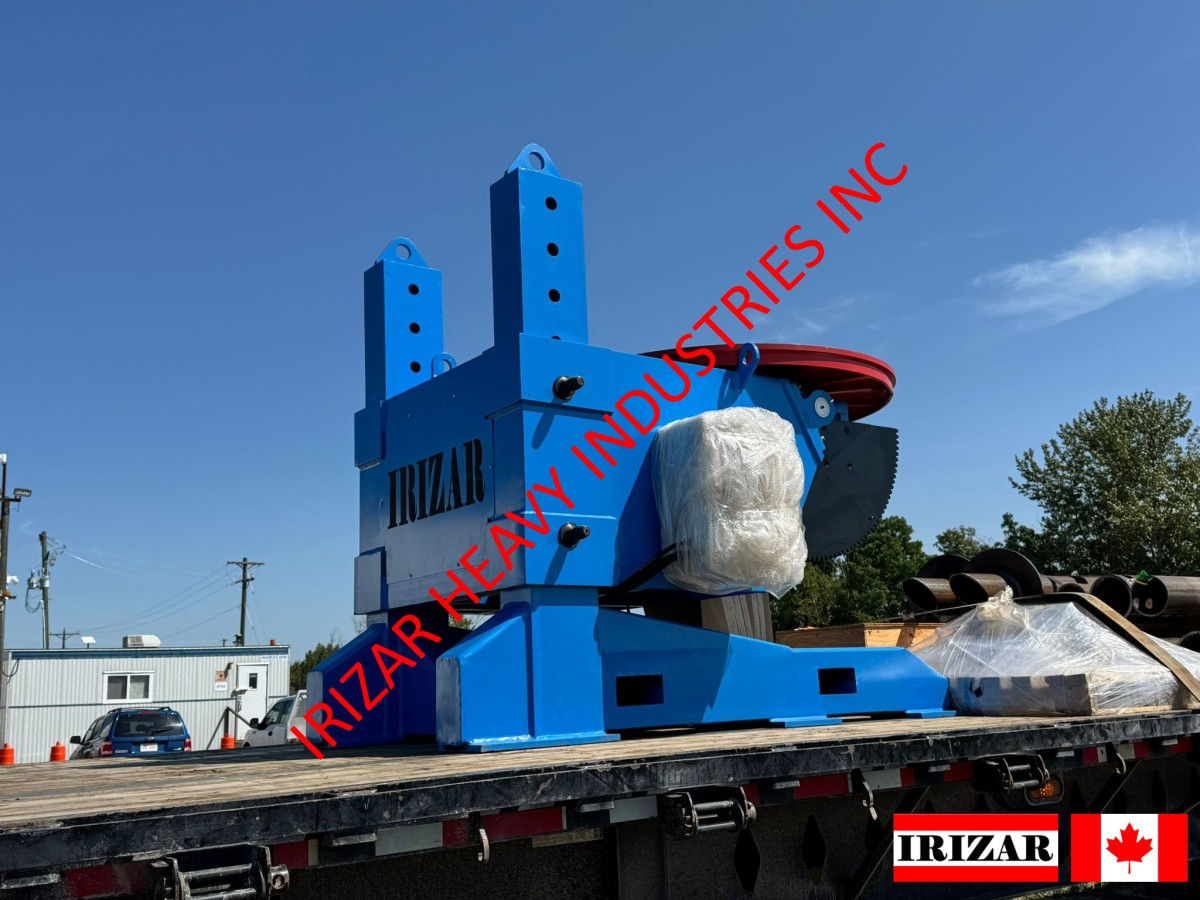

NEW! Adjustable Height Welding Positioner Model AH-WP 5
Specifications: Same as above
Minimum Height: 1,380 mm
Maximum Height: 2,000 mm
Accessories
Three-Jaw Self-Centering Welding Gripper Chucks
Model 3J-615-1T: 85 to 615 mm Ø
Model 3J-1080-1T: 85 to 1,080 mm Ø
Model 3J-1250-2T: 200 to 1,250 mm Ø
Model 3J-1500-3T: 200 to 1,500 mm Ø
Irizar Chucks are designed for welding at low speed, not for use on a lathe at high speed.
Idler Pipe Stands
Model IPS-2 MT: 50-1500 mm Ø, 780-1390 mm height
Model IPS-4 MT: 50-1500 mm Ø, 900-1570 mm height
Model IPS-8 MT: 50-1500 mm Ø, 1000-1600 mm height
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
