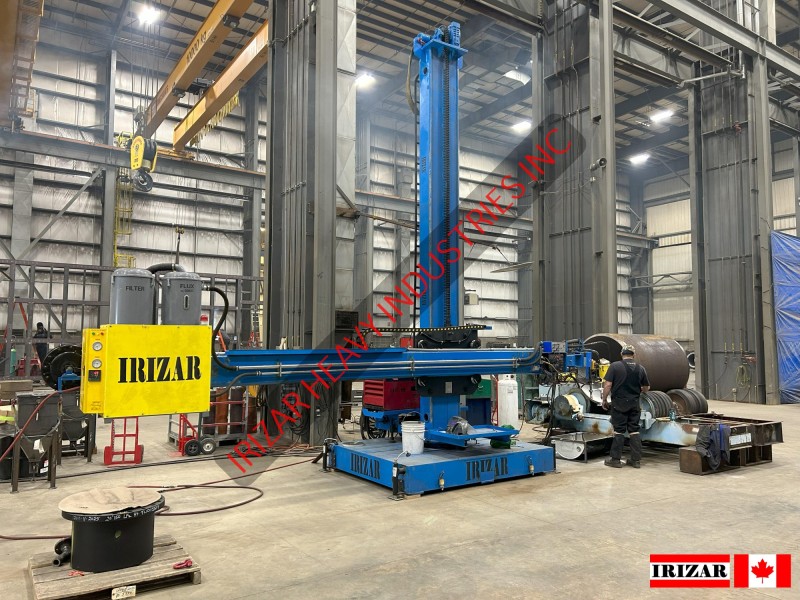

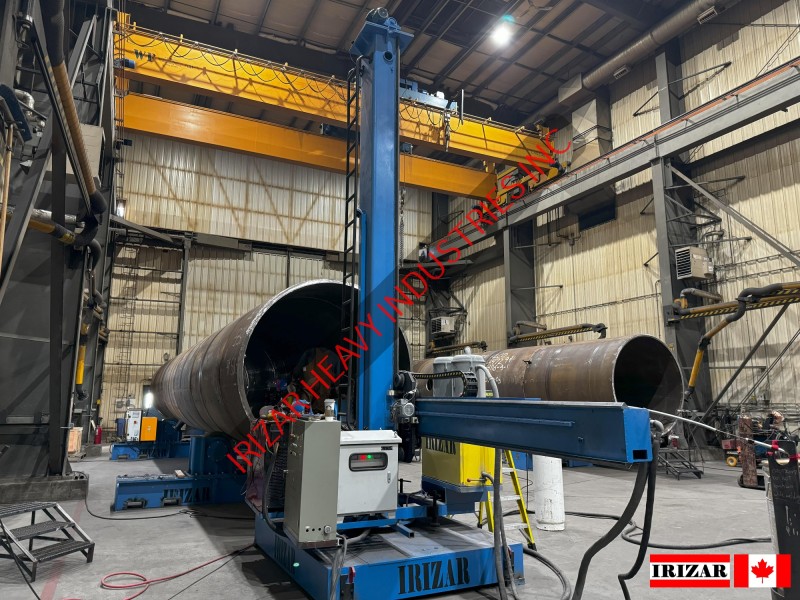

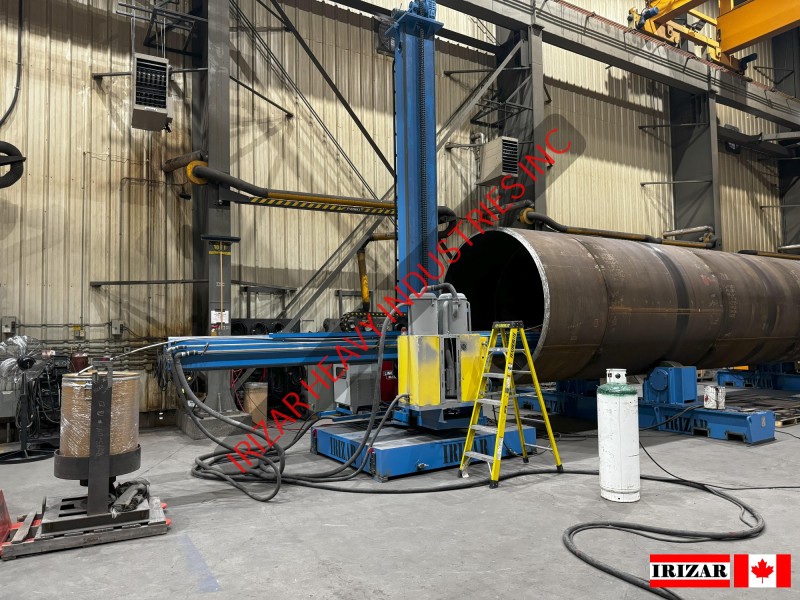

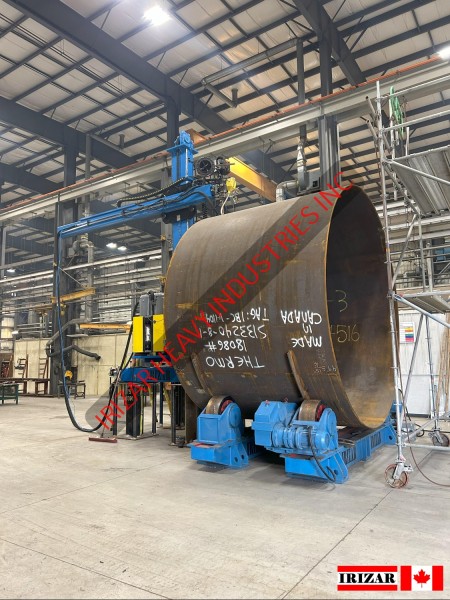

Welding Manipulator Model WM 4040 with Motorized Trolley

Specifications:

1. Effective expansion:
   Boom vertical effective expansion (up-down): 4.0 m
   Boom horizontal effective expansion (in-out): 4.0 m
2. Maximum load at boom extremity: 200 kilos @ 12” GC
3. Speed:
   Boom vertical speed: 1.0 m/minute
   Boom horizontal speed: From 0.12 to 1.2 m/minute
   Column rotation (± 180 ͦ ): Motorized
   Trolley speed: 1.50 m/minute
4. Boom height:
   Minimum: 0.75 m
   Maximum: 4.75 m
5. Column height: 6.50 m
6. Power: 2.75 kw
7. Weight: 4.0 MT
8. Warranty: One year
9. Operation Manual & Electric Diagram: Included
10. Video
11. 3D View

Options:

Motorized or Manual Cross Slide
Flux Recovery Model FRU-50

WM Longitudinal and Circumferential SAW

Notes:

1. The Welding Procedure Specifications (WPS) and the Procedure Qualifications Records (PQR) must be qualified by the user, considering the applicable Codes and Standards. It should be designed by a welding engineer who selects the essential welding parameters such as joint design, base material, wall thickness range, filler metal, position, pre-heating temp, flux, amperes, voltage, welding speed, etc. The user is responsible for certifying WPS & PQR before deploying the equipment at the job site.

2. The Welder Qualification Test (WQT) remains the user’s responsibility. It is not Irizar's scope to train submerged arc operators; the user shall have/hire an experienced welder’s operator(s) with an updated WQT ticket(s).

Delivery Time:

Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
