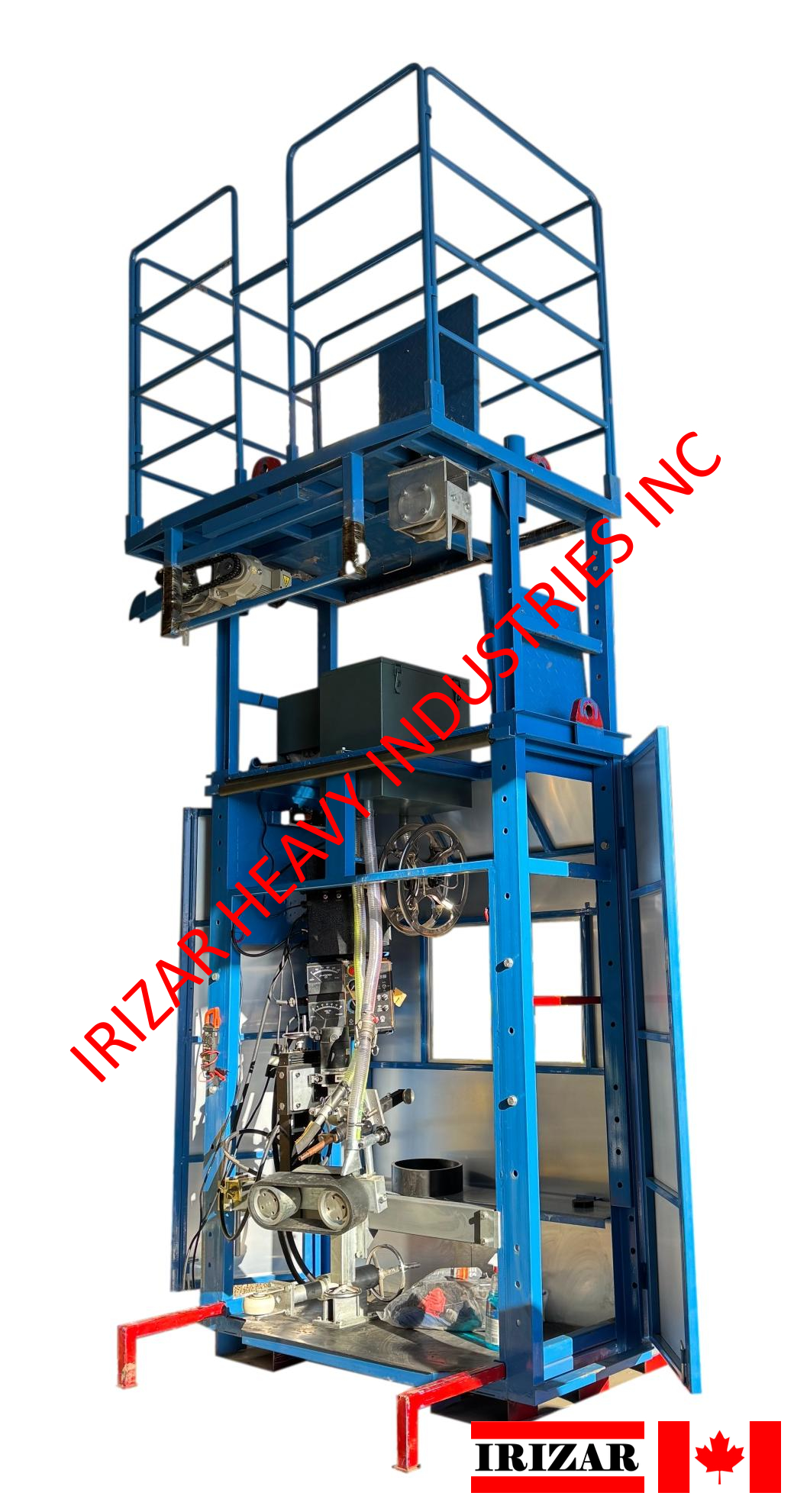

Compatible with Traditional Construction Method [Bottom to Top]. In this method, a single circumferential seam can be applied using Submerged Arc Welding (SAW) inside or outside the tank. The AGW-1 is suspended from the tank's upper edge. The AGW-1 is compatible with the Tank Jacking Construction Method [Top to Bottom]. In this case, the AGW-1 applies circumferential SAW seams exclusively from the outside of the tank, using a temporary rail support. Input power: 120/240/1P/50/60. If circumferential seams are required to be welded from the inside of the tank, use a Girth Welder Model AGW-1-C (Single Side-Compact). Included: One Lincoln PowerPlus 1000 HD (380/480/3/50/60), one Lincoln Welding Controller, one wire feeder, one wire reel, one flux recovery unit. Not included: welding cables. Required one cable of 120 mm² x 60 m for welding up to 600 amps, two cables for welding up to 800 amps, and three cables for welding up to 1000 amps.
Frequently Asked Questions (FAQ)
Knowledge Base (KB)
Application 3D Models: Traditional Method & Jacking Method
Specifications:
Trolley motorized speed: 200 up to 2,900 mm/minute.
Trolley manual: Quick move with clutch lever
Plate height: 1.5 to 3.0 m
Tank diameter: Minimum 5.0 m
Plate thickness: 8 to 50 mm
Weight (fixture itself): 680 kilos
Dimensions AGW-1: 1.55 m (L) x 1.20 m (W) x 2.65 m (H)
Dimensions power source storage box: 1.30 m (L) x 1.10 m (W) x 1.30 m (H)
Input Power: 120/240 V, 50/60 Hz, 1 P
Power: 0.19 kw
Warranty: One year
Included:
• Lincoln Power Source
• Welding head controller
• Wire feeder
• Heavy-duty motorized carriage
• Control Box: Forward/Stop/Reverse/Speed Adjustment with display in mm/min
• Frequency driver.
• Wire reel for 60 lbs coil.
• One contact nozzle assembly for 3/32” (2.4 mm)
• One contact nozzle assembly for 1/8” (3.2 mm)
• One contact nozzle assembly for 5/32” (4.0 mm)
• One contact tip 3/32” (2.4 mm).
• Flux recovery & delivery system.
• Flux belt 4” x 40”
• Flux assembly with 150 mm wheel diameter.
• Flux Hopper with 20 kilos capacity.
• Manual welding head (X-Y) cross slide with 6” stroke.
• Power cable 2.5 mm² *4 wires* 60 m.
• Control cable 1.5 mm² *10 wires* 60 m.
• Electric control panel
• Power source steel storage box
• Operation Manual & Electric Diagram
• One-year Warranty
Not included:
• Welding cable 120 mm² x 60 m.
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
Notes:
Our company recommends consulting a Certified Welding Engineer (CWEng) to design the welding procedure in accordance with the relevant national and provincial codes and standards. In Canada, CWEngs are certified by the Canadian Welding Bureau (CWB). In contrast, in the USA, they are accredited by the American Society of Mechanical Engineers (ASME), the American Welding Society (AWS), and the American Petroleum Institute (API), among other prestigious organizations worldwide. A CWEng is responsible for designing and selecting the appropriate welding parameters, which include plate beveling, wire and flux specifications, amperage, voltage, and welding speed, among other factors.
Irizar does not offer training, as the machine is straightforward to operate. However, it must be operated by an experienced Submerged Arc Welding (SAW) Operator. Certification is required for this trade, meaning the operator holds a certification as a journeyperson. Irizar rental facility is available in Wetaskiwin, AB, Canada, where customer welder operators can familiarize themselves with the equipment and obtain coupons for qualifying Welding Procedure Specifications (WPS), Procedure Qualification Records (PQR), and Welder Qualification Tests (WQT). Otherwise, we recommend purchasing the machine in advance and making it work in your shop before setting it up on the jobsite
Irizar Jobsite Requirements:
• The user should provide a steel base plate with beveling, wire and flux.
• Minimum rental of five business days in an eight-hour shift. Includes: Two AGW-1-C and one SAW Welding Tractor.
• Maximum two operators at a time and one supervisor.
• Booking: Two to four weeks in advance.
• The user is required to provide a certificate of liability insurance.
