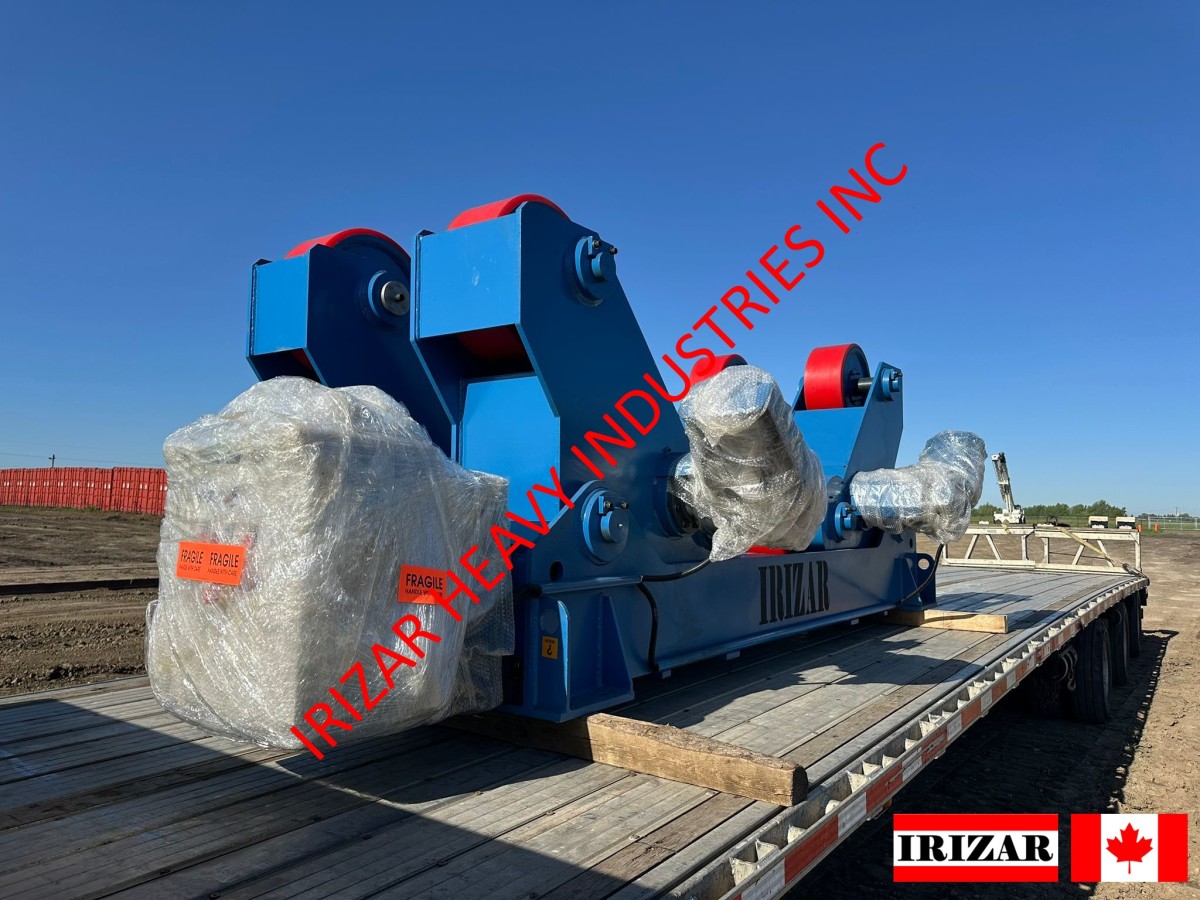

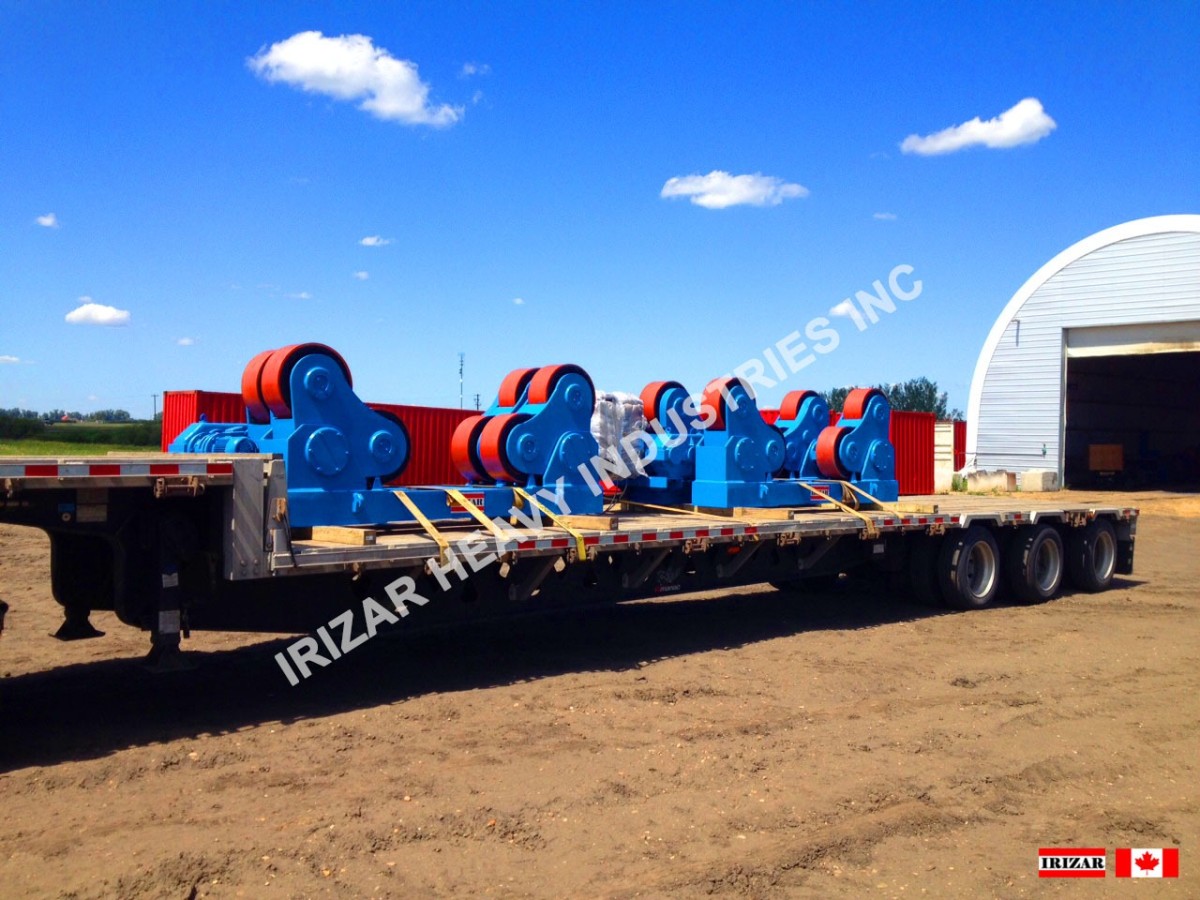

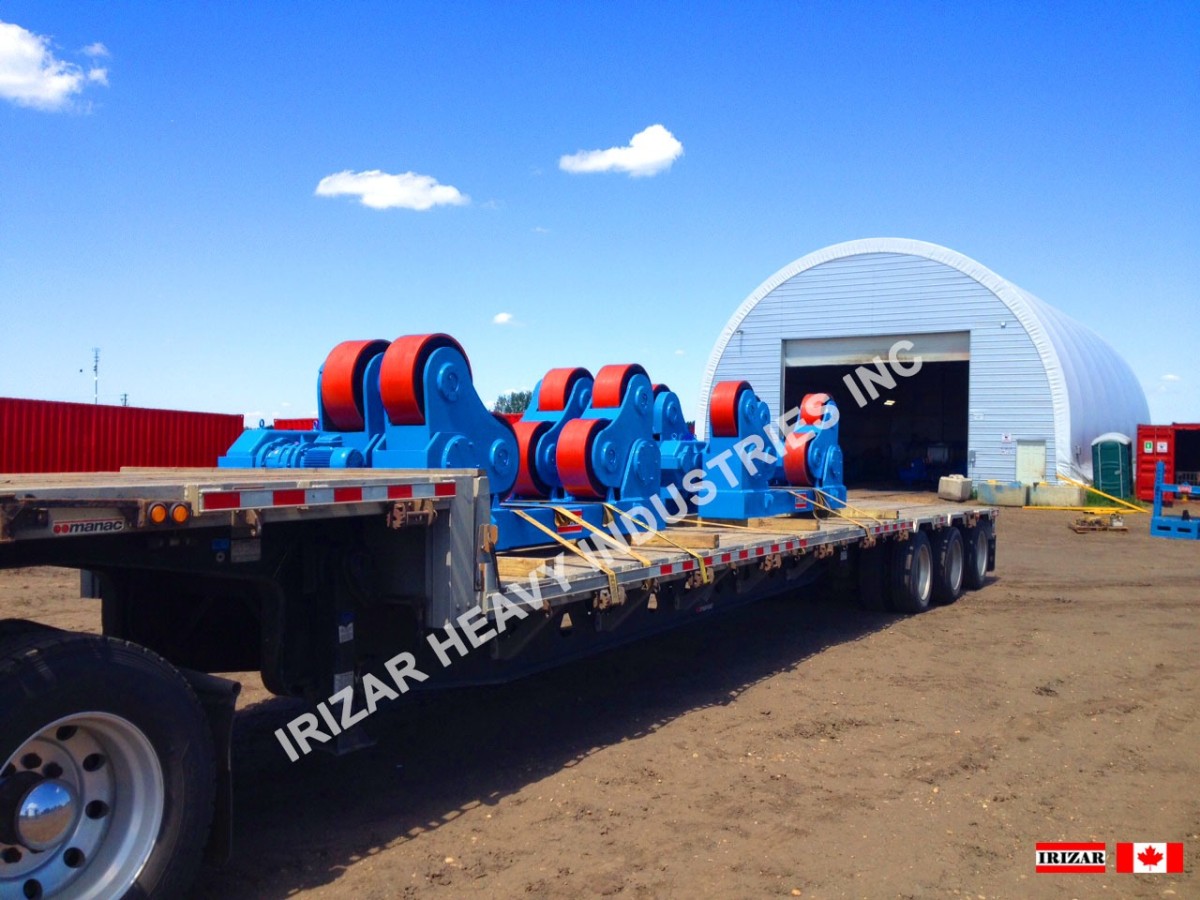

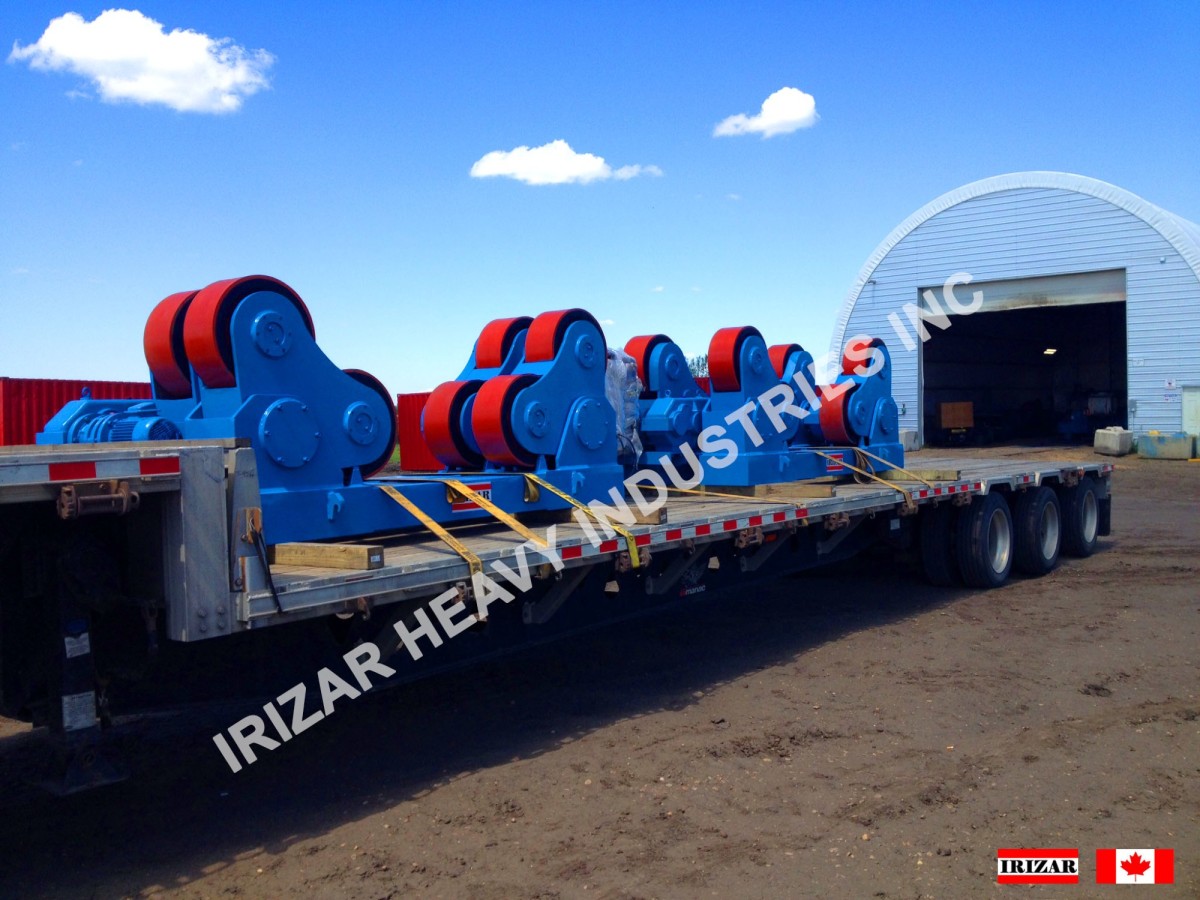

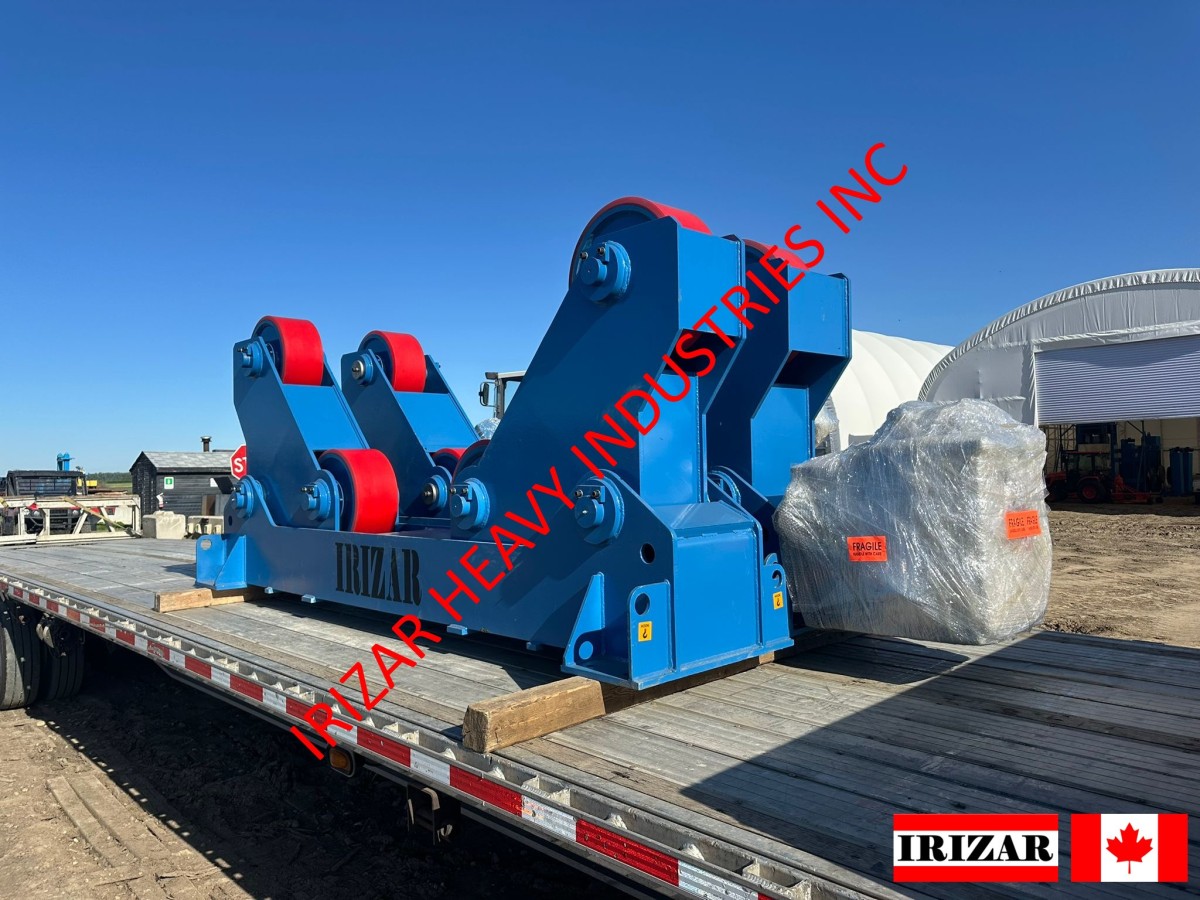

Irizar SAR 150 Self-Aligning Welding Rotators are 150 MT capacity self-aligning tank turning rolls designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The SAR 150 includes one power rotator and one idler rotator, providing a combined maximum loading and rotation capacity of 150 MT. Its self-aligning wheel design automatically adjusts to accommodate different workpiece diameters, reducing setup time and improving workpiece support during rotation.
Our self-align turning rolls are available from stock in capacities ranging from 5 MT to 500 MT.
Including: 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 500 MT
Available in Stock: The world's largest selection of self-aligned tank turning rolls.
Gallery
Capacity
The Vessel sits on four wheels
Full Load Capacity
Vessel Diameter Range: From 2,810 to 6,000 mm
Power Rotator Max Rotation Capacity: 150 MT
Power Rotator Max Load Capacity: 75 MT
Idler Rotator Max Load Capacity: 75 MT
The Vessel sits on only two bottom wheels
Half Load Capacity
Vessel Diameter Range: From 1,100 to 2,800 mm
Power Rotator Max Rotation Capacity: 75.00 MT
Power Rotator Max Load Capacity: 37.50 MT
Idler Rotator Max Load Capacity: 37.50 MT
Specifications
Variable Speed: From 100 up to 1,000 mm/minute
Remote Control Box with 6 m cable:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 3.00 kW @ 2
Wheel Diameter: 500 mm
Wheel Width: 220 mm
Estimated Weight: 6.00 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
