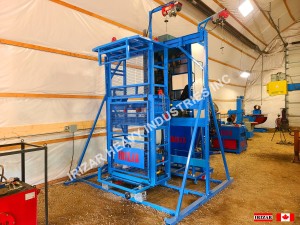

The Motorized Shell Buggy or Boggie provides quick access to vertical and horizontal welding seams on API field-erected tanks, eliminating the need for scaffolding. It facilitates welding inspections, repairs, and removal of tank fitting tools. It also allows the installation of FCAW welding oscillators for vertical welds. The Shell Buggy is compatible with the Traditional Construction Method (Down to Top) and the Tank Jacking Construction Method (Top to Down)—brochure page 19. The Shell Buggy is also known as a Self-Propelled Basket,Platform Shell Buggy,Shell Work Platform Buggy or Shell Boggie.
Application 3D Models: Traditional Method & Jacking Method
Specifications:
Trolley motorized speed: 200 up to 2,900 mm/minute.
Trolley manual: Quick move with clutch lever
Plate height: 1.5 to 3.0 m
Tank diameter: Minimum 5.0 m
Plate thickness: 8 to 50 mm
Weight (fixture itself): 380 kilos
Dimensions: 1.55 m (L) x 1.20 m (W) x 2.65 m (H)
Input Power: 120/240 V, 50/60 Hz, 1 P
Power: 0.19 kW
Warranty: One year
Operation Manual and Electric Diagram: Included
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
