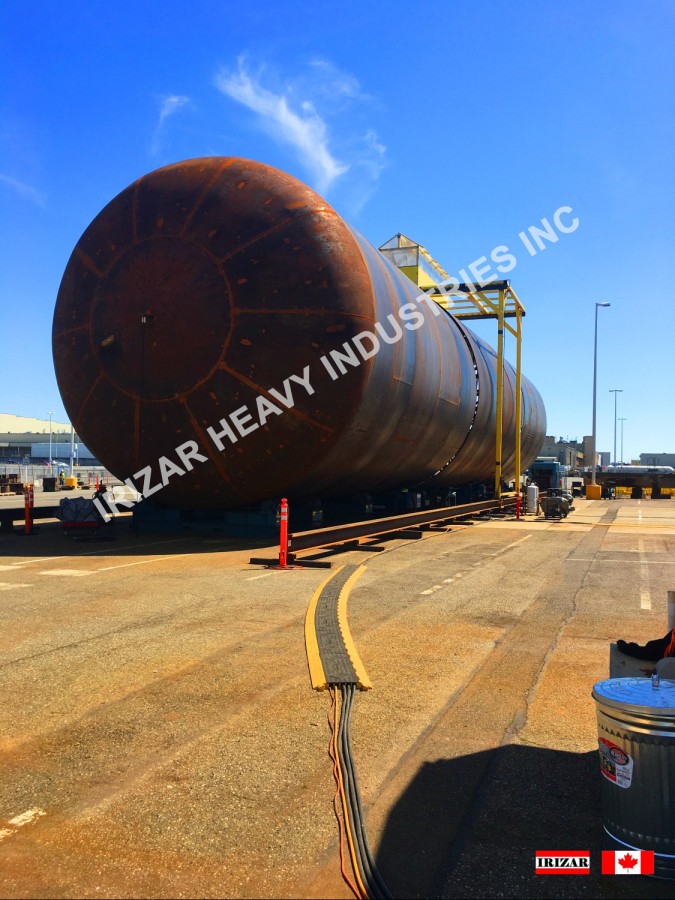

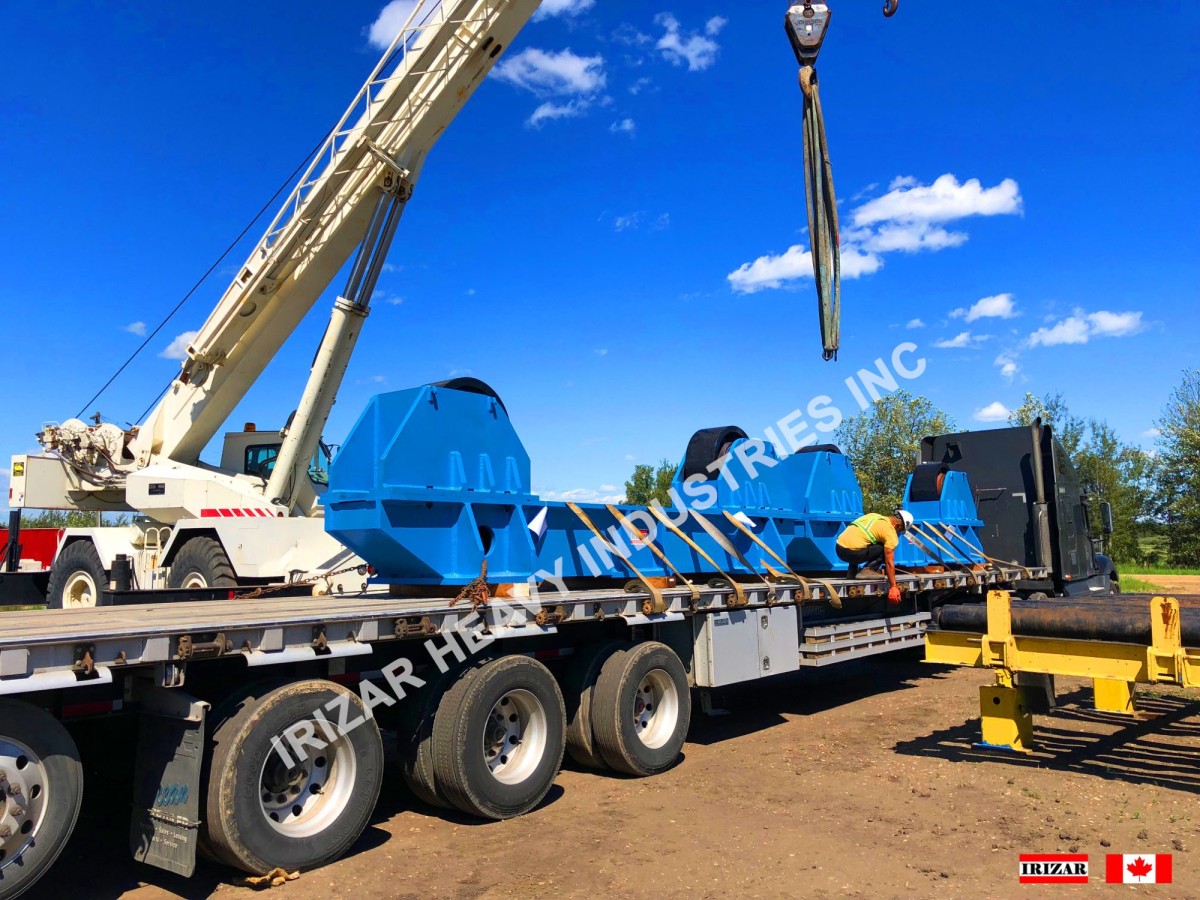

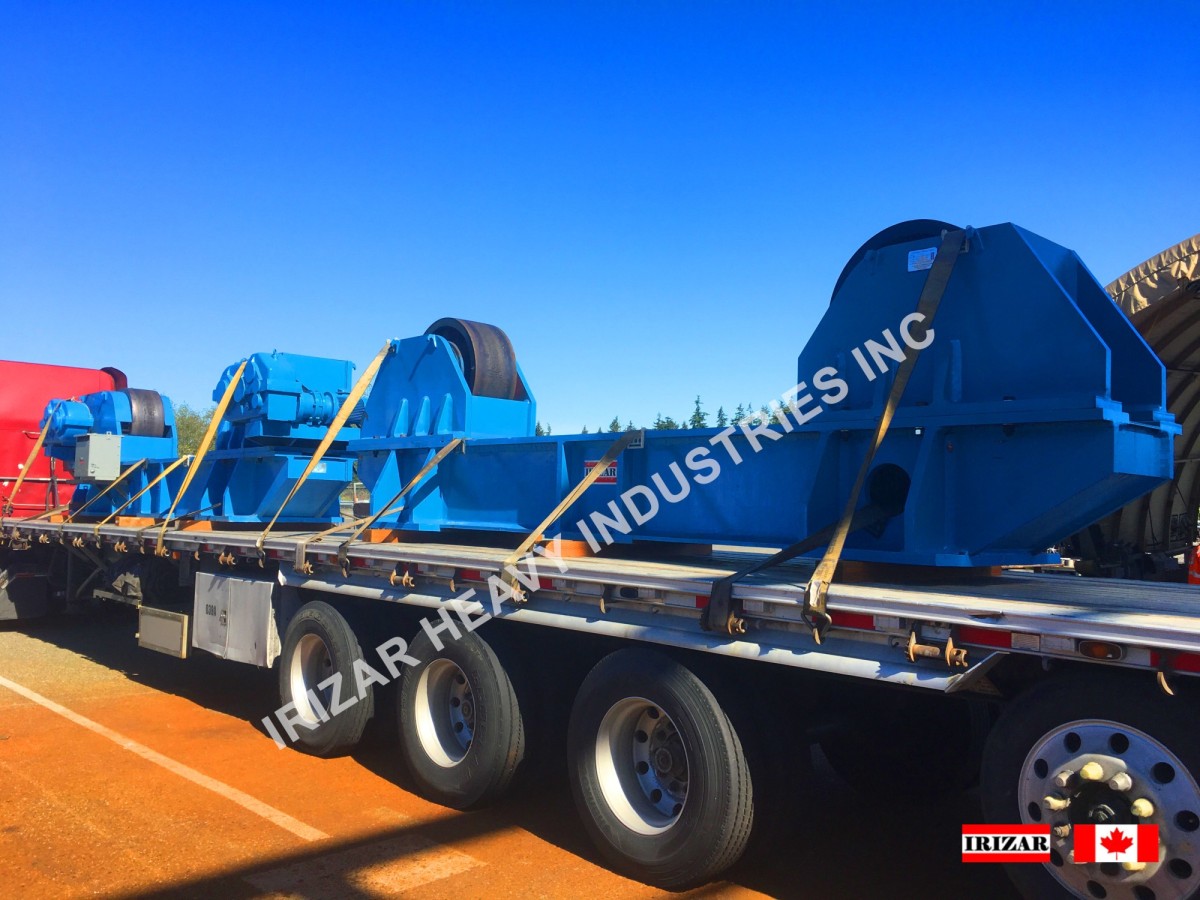

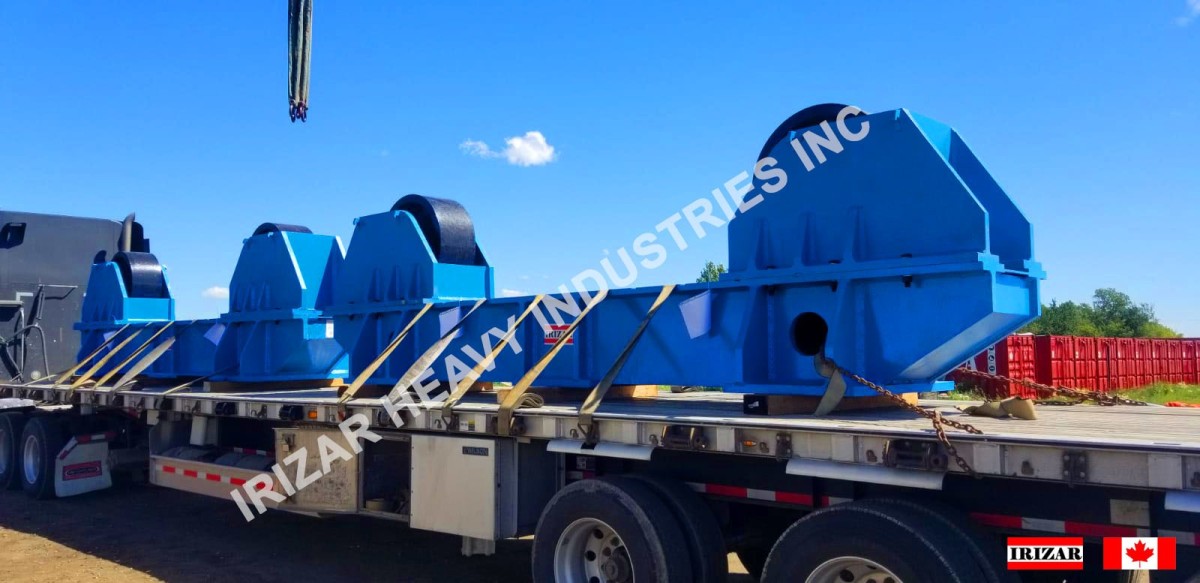

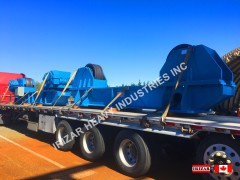

Irizar WR 600 Tank Turning Rolls are 600 MT capacity conventional welding rotators designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The WR 600 includes one power rotator and one idler rotator, providing a combined loading/maximum rotation capacity of 600 MT.
Our tank turning rolls are available from stock in capacities ranging from 3 MT to 2,500 MT.
Including: 3 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 400 | 600 | 800 | 1,200 | 2,500 MT
Additional capacities available upon request: 1,000 | 1,600 | 2,000 MT
Available in Stock:
The world's largest selection of tank turning rolls.
The world's largest 2,500 MT capacity welding rotator.

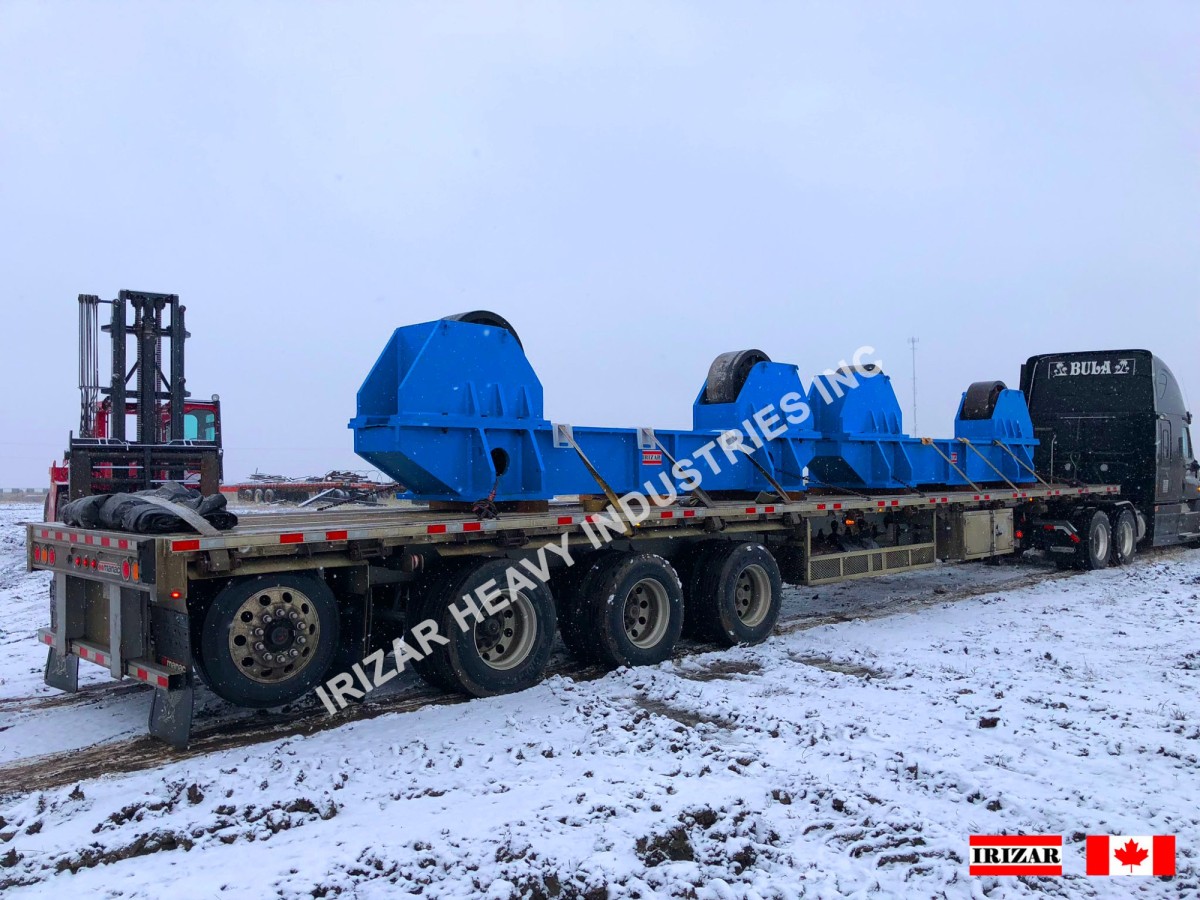

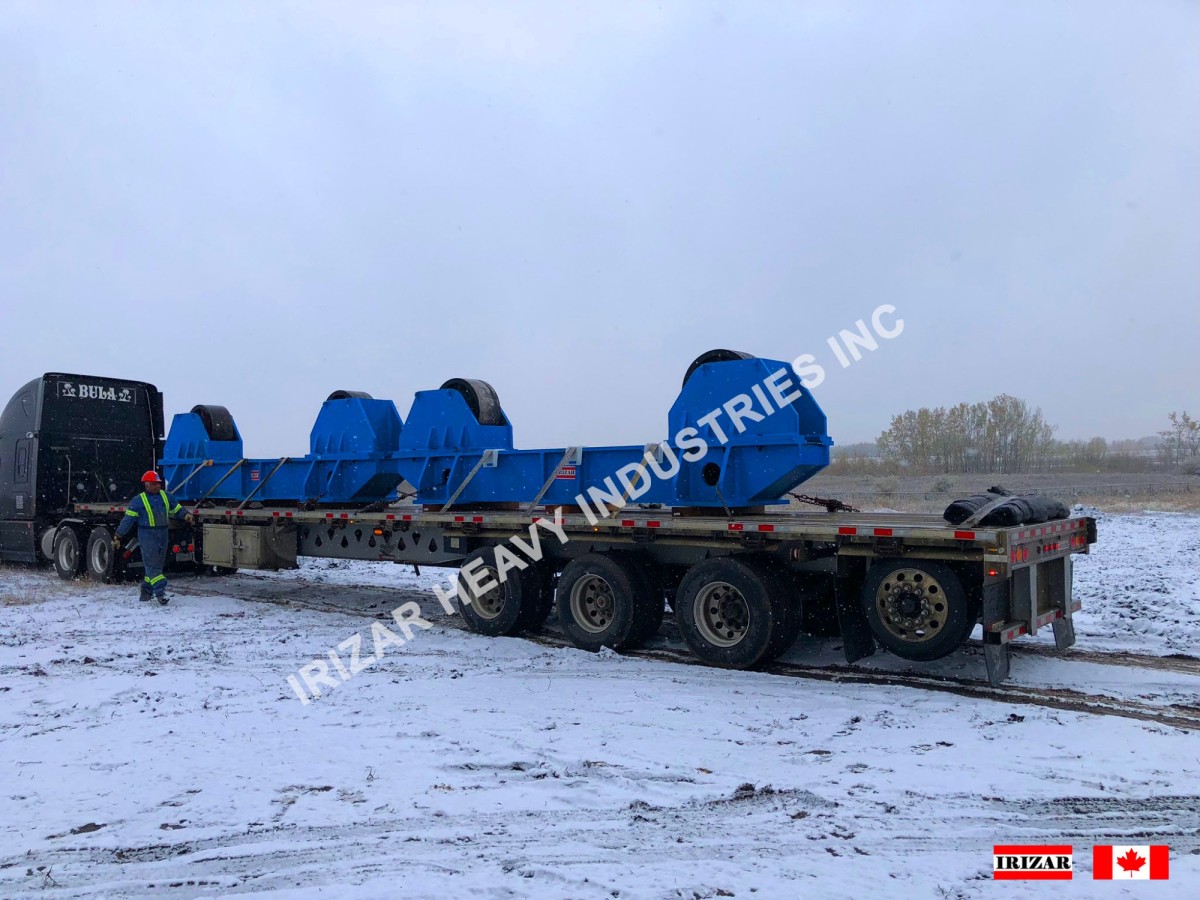

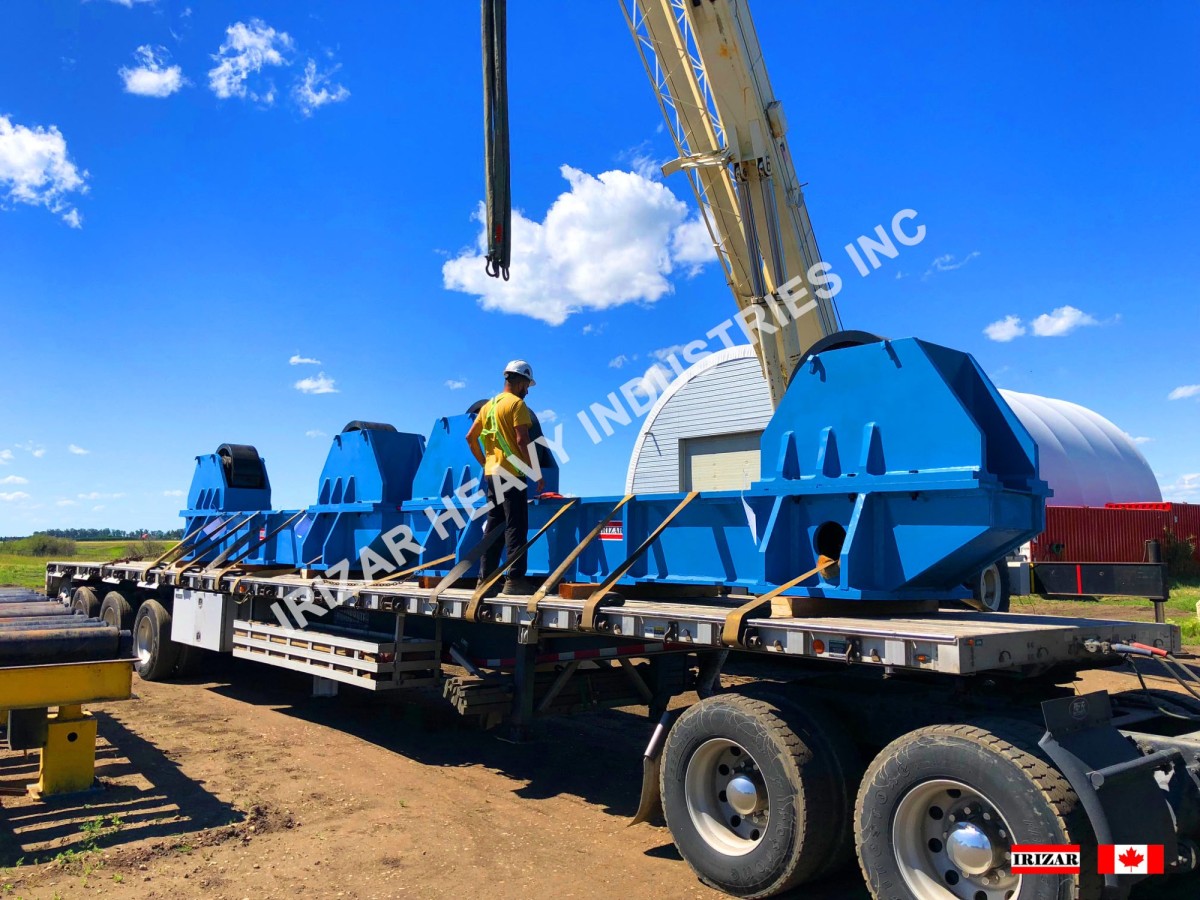

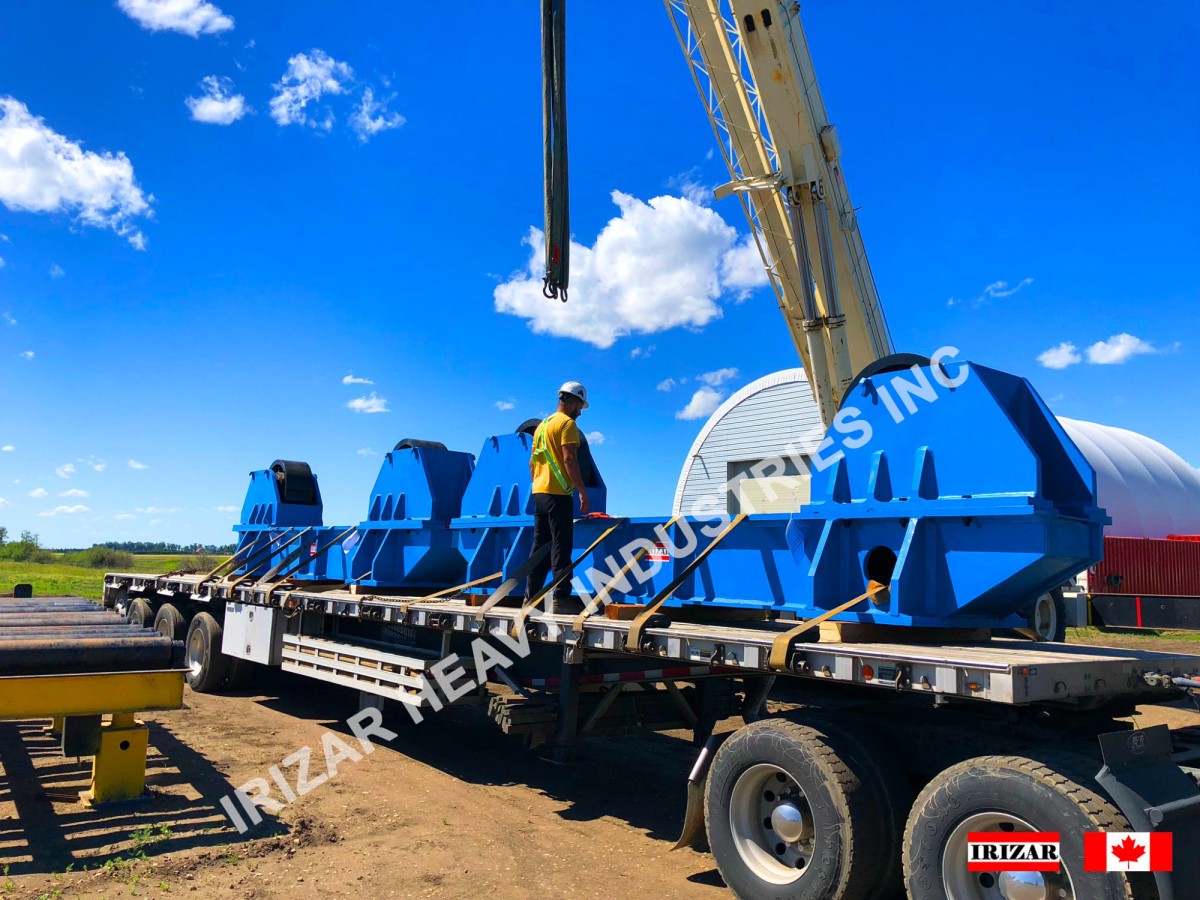

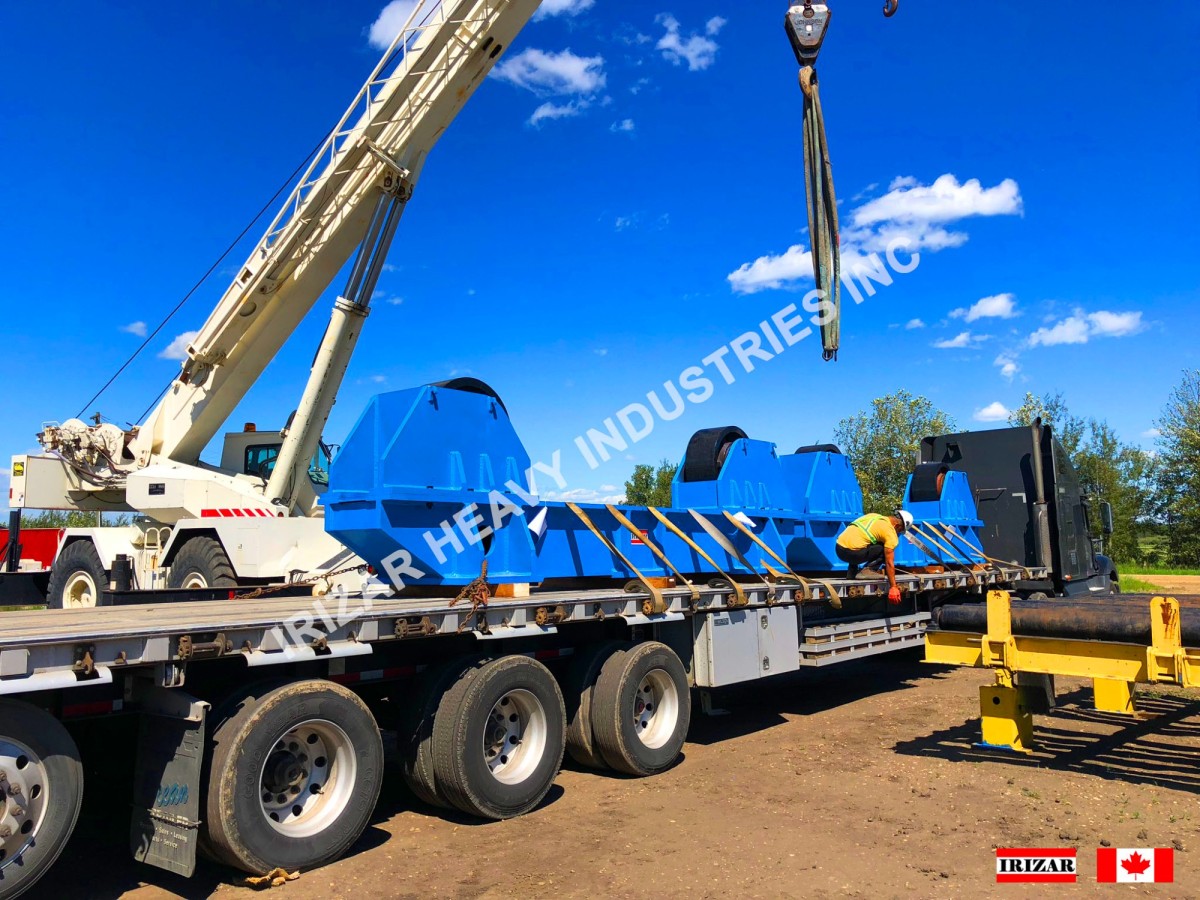

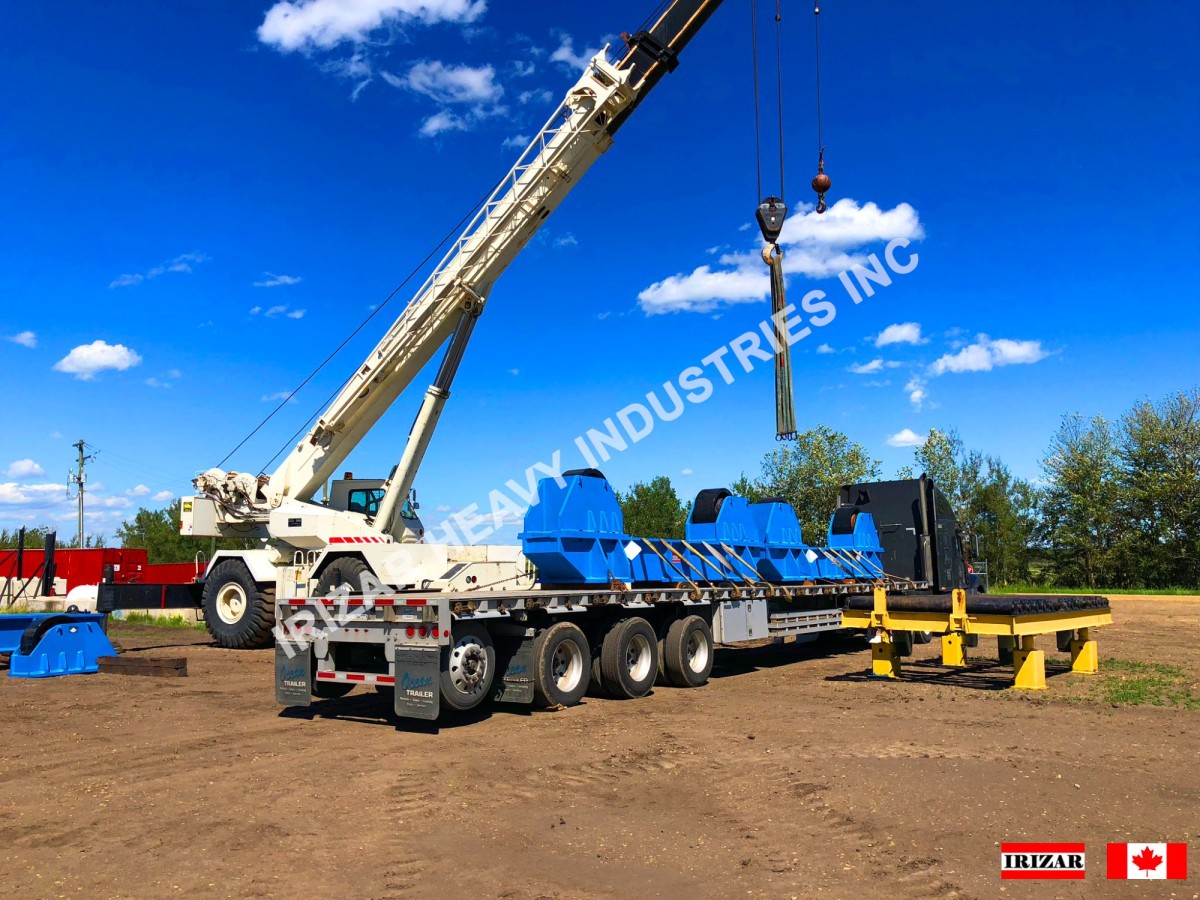

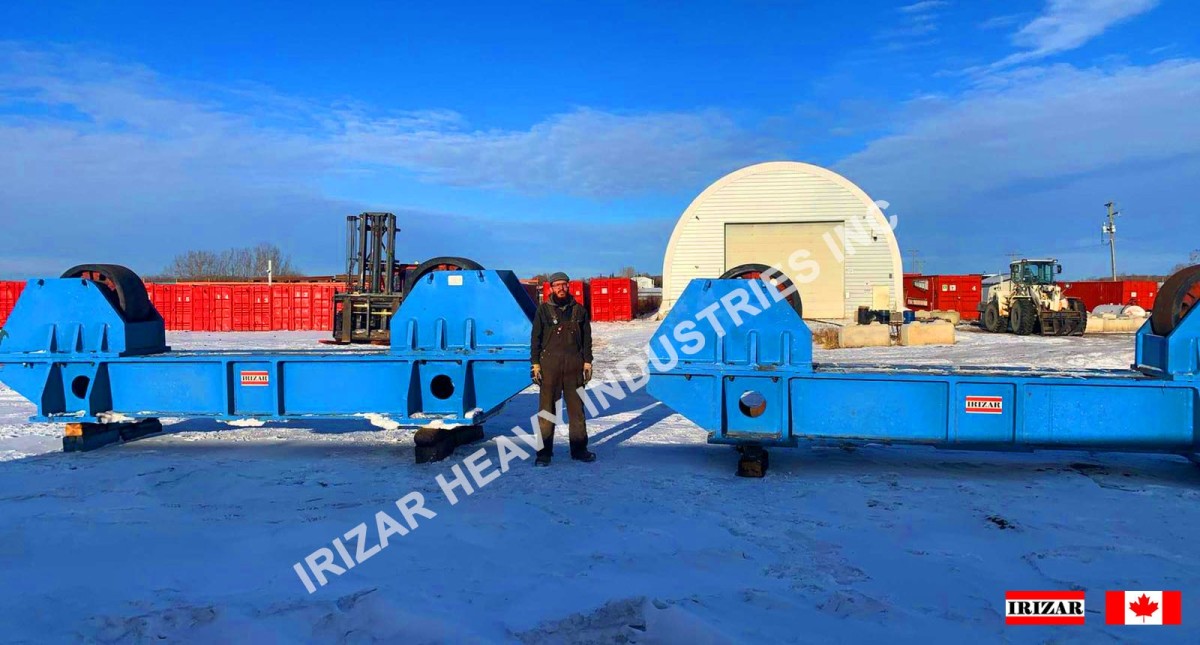

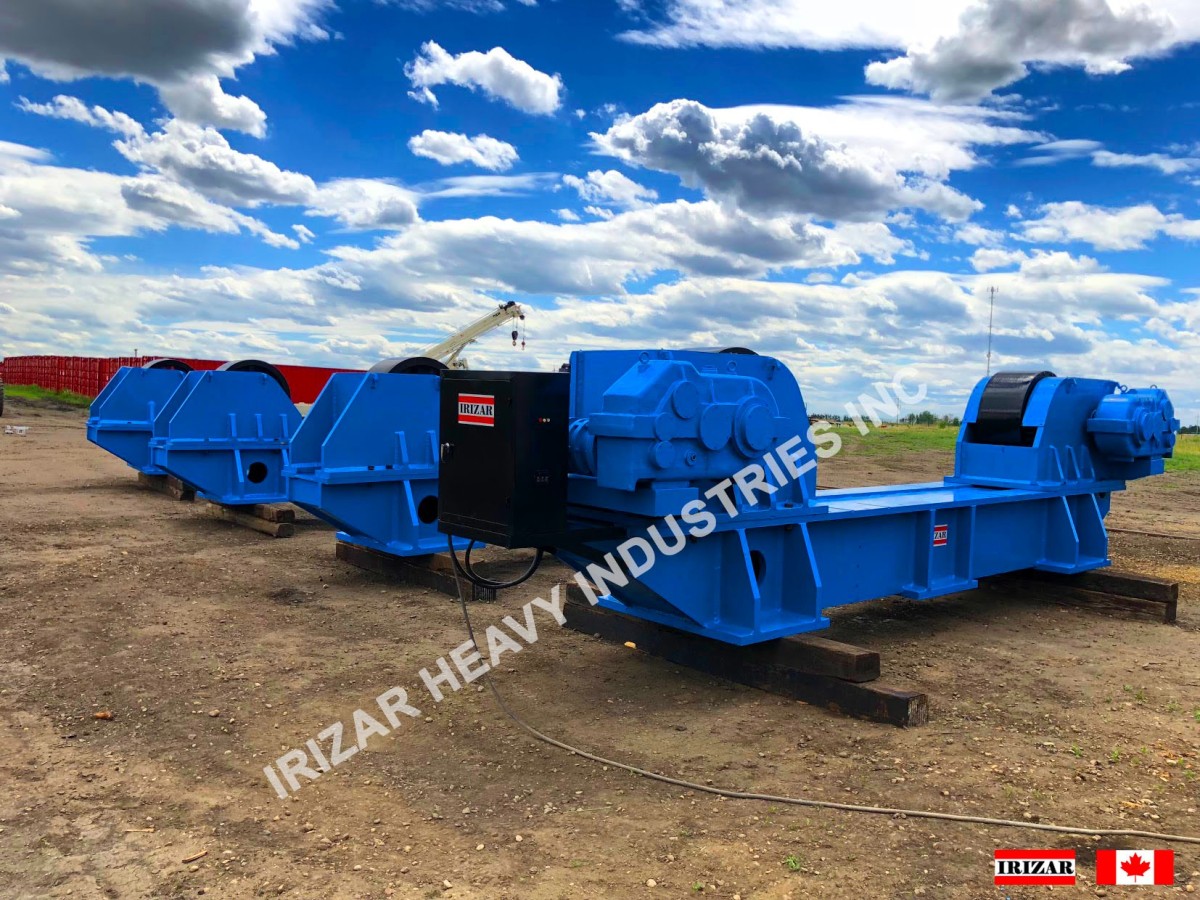

Gallery
Specifications
Power Rotator Max Rotation Capacity: 600 MT
Power Rotator Max Load Capacity: 300 MT
Idler Rotator Max Load Capacity: 300 MT
Vessel Diameter Range: From 1,200 mm up to 9,000 mm
Variable Speed: From 100 up to 1,000 mm/minute
Wireless control box with 60 m reach:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 7.50 kW @ 2
Wheel Diameter: 900 mm
Wheel Width: 360 mm
Estimated Weight: 27.50 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
