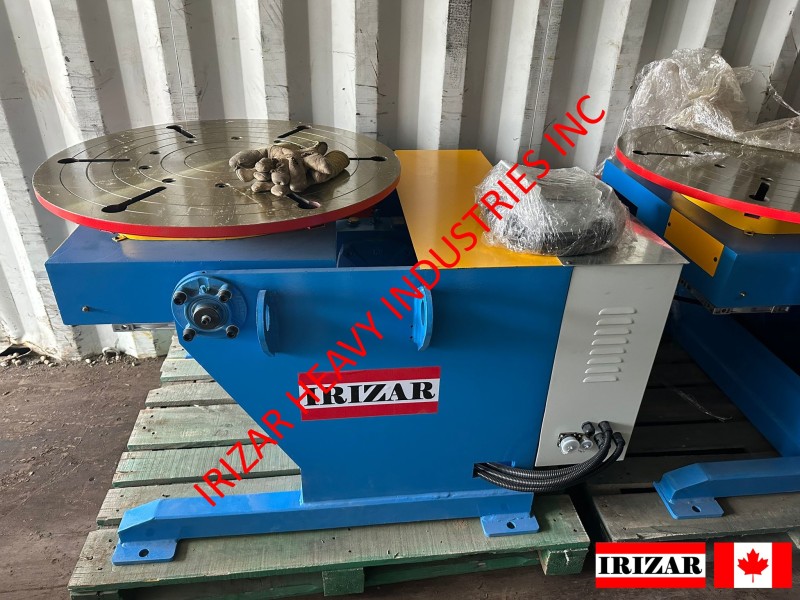

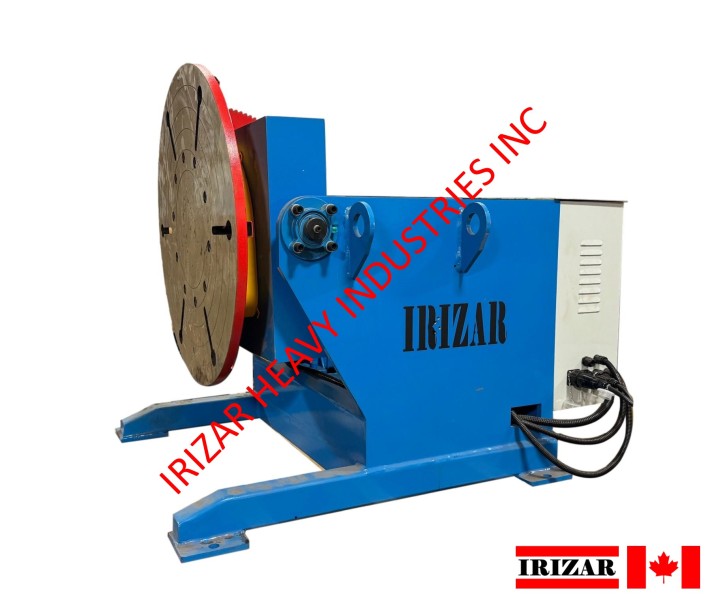

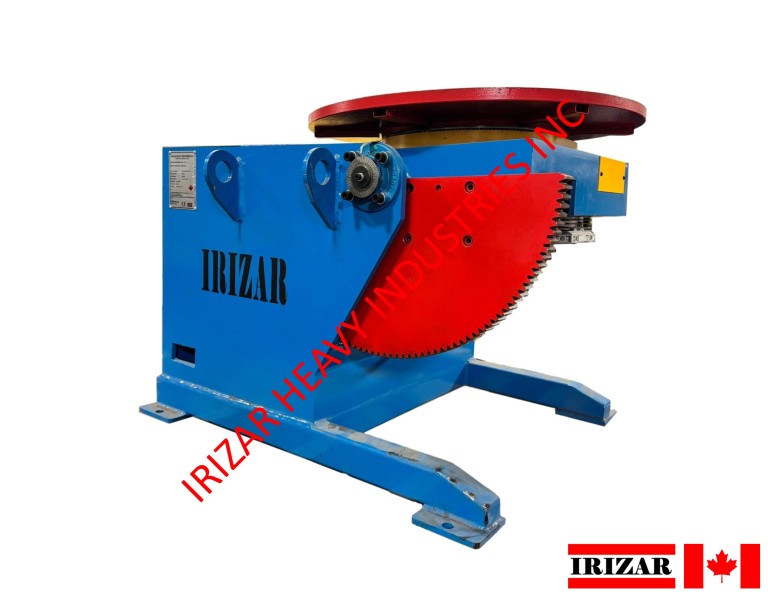

Irizar WP 0.6 Welding Positioner is a 0.6 MT capacity welding positioner designed to support, position, rotate, and tilt workpieces during welding, fabrication, assembly, and inspection. The WP 0.6 provides powered 360° variable-speed table rotation and powered table tilt from 0° horizontal to 120°, allowing the workpiece to be positioned at the optimum angle for welding and fabrication.
Available in Stock:
Large selection of Welding Positioners.
Models WP (MT): 0.6 | 1 | 3 | 5 | 10 | 20 | 40 MT
Custom-built:
Models WP (MT): 30 | 50
Gallery
Load Capacity
600 Kilos @ 200 mm GC
400 Kilos @ 300 mm GC
300 Kilos @ 400 mm GC
240 Kilos @ 500 mm GC
200 Kilos @ 600 mm GC
Specifications
Eccentricity: 150 mm
Rotation speed: From 0.10 to 1.0 RPM
Tilt speed: From 1.09 RPM
Table diameter: 1,000 mm
Table with “T” shaped channels @ 45 degrees
Remote Control Box
Control Box: Forward/Stop/Reverse/Speed Adjustment with digital display
Foot control: Included
Max workpiece diameter @ 90 degrees tilt: 1,500 mm
Tilt Angle: 0 to 90 degrees
Power Rotation: 0.75 kW
Power Tilt: 0.75 kW
Estimated Weight: 0.70 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Accessories
Three-Jaw Self-Centering Welding Gripper Chucks
Model 3J-615-1T: 85 to 615 mm Ø
Model 3J-1080-1T: 85 to 1,080 mm Ø
Model 3J-1250-2T: 200 to 1,250 mm Ø
Model 3J-1500-3T: 200 to 1,500 mm Ø
Irizar Chucks are designed for low-speed welding, not for high-speed lathe work.
Idler Pipe Stands
Model IPS-2 MT: 50-1500 mm Ø, 780-1390 mm height
Model IPS-4 MT: 50-1500 mm Ø, 900-1570 mm height
Model IPS-8 MT: 50-1500 mm Ø, 1000-1600 mm height
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
