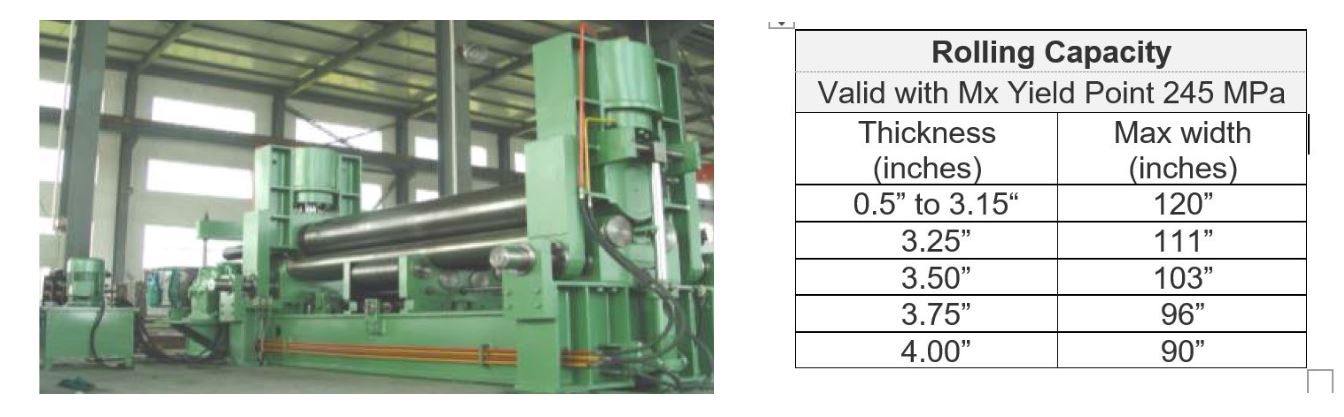

HYDRAULIC THREE-ROLLS DOUBLE PINCH PLATE BENDING MACHINE
MODEL 3R-80X3000
Span: 3,000 mm
Rolling Capacity: 80 mm (3.15”)
Pre-bending Capacity: 64.00 mm (2.5”) on steel with 245 MPa yield point
Status: Good working conditions, close to New
Price: $ 240,000 CAD (Canadian Dollars)
SPECIFICATIONS
• Span: 3,000 mm
• Rolling capacity: 80 mm (3.15”)
• Pre-bending capacity
With steel with max 245 MPa yield point (245 N/mm²): 64.00 mm (2.5”)
With steel with max 345 MPa yield point (345 N/mm²): 52.00 mm (2.0”)
• Flat end 2 to 2.5 times plate thickness
• Min Inside Diameter at full load: 1,520 mm
• Top roller diameter: 760 mm
• Lower roller diameter: 460 mm
• Top roller pressure: 1,050 MT
• Power Lower roll: 90 kW
• Power Hydraulic: 37 kW
• Power Shifting: 18.5 Kw
• Approx. rolling speed: 3.60 m/minute
• Cone Bending Facility: Included
• Estimated weight: 115 MT
• Input Power: 480 V, 60 HZ, 3P
FEATURES:
• Top Roller is hydraulic and all directionally adjusted.
• Lower rollers are driven mechanically through the gearbox.
• Top Roller, 42CrMo. Machined before quenching/tempering at HB 260 ~ 300
• Lower Rollers, 42CrMo. Machined before quenching/tempering at HB 260 ~ 280
• Support Roller device, medium carbon steel, quenching/tempering at HB 190 ~ 220
• Side Frame and chassis are made of Q235 steel
• Control System components:
PLC Control by Omron, Japan
Low-voltage apparatus by Siemens, Germany
Control Panel touch screen by Weintek Labs Inc, Taiwan
• Estimated weight: 115 MT
• Required for transportation: 40' OT + 40' DC + 20' DC + 2 @ 40' FR
Location: Wetaskiwin, AB, Canada
