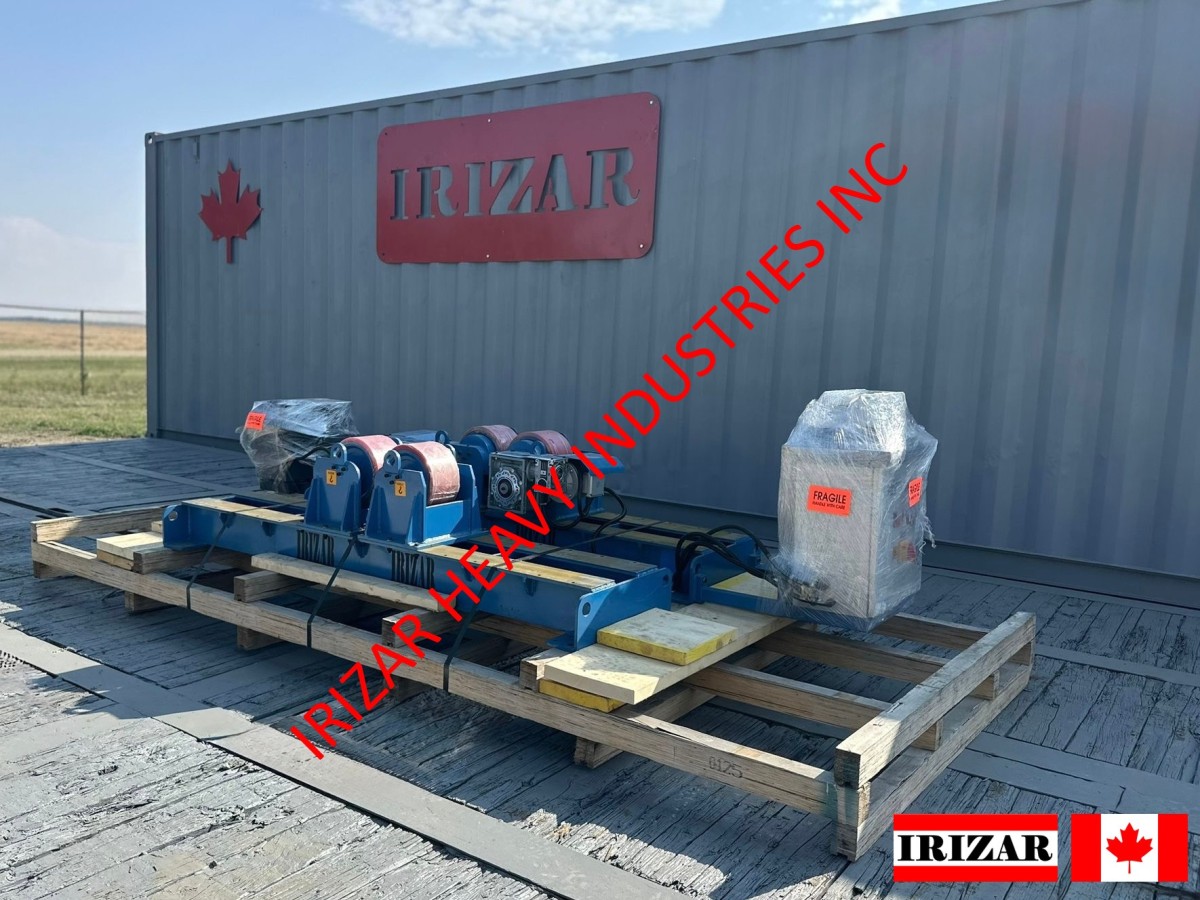

Irizar WR 5 Tank Turning Rolls are 5 MT capacity conventional welding rotators designed to support, position, and rotate tanks, pressure vessels, pipes, and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The WR 5 includes one power rotator and one idler rotator, providing a combined loading/maximum rotation capacity of 5 MT.
Our tank turning rolls are available from stock in capacities ranging from 3 MT to 2,500 MT.
Including: 3 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 250 | 400 | 600 | 800 | 1,200 | 2,500 MT
Additional capacities available upon request: 1,000 | 1,600 | 2,000 MT
Available in Stock:
The world's largest selection of tank turning rolls.
The world's largest 2,500 MT capacity welding rotator.

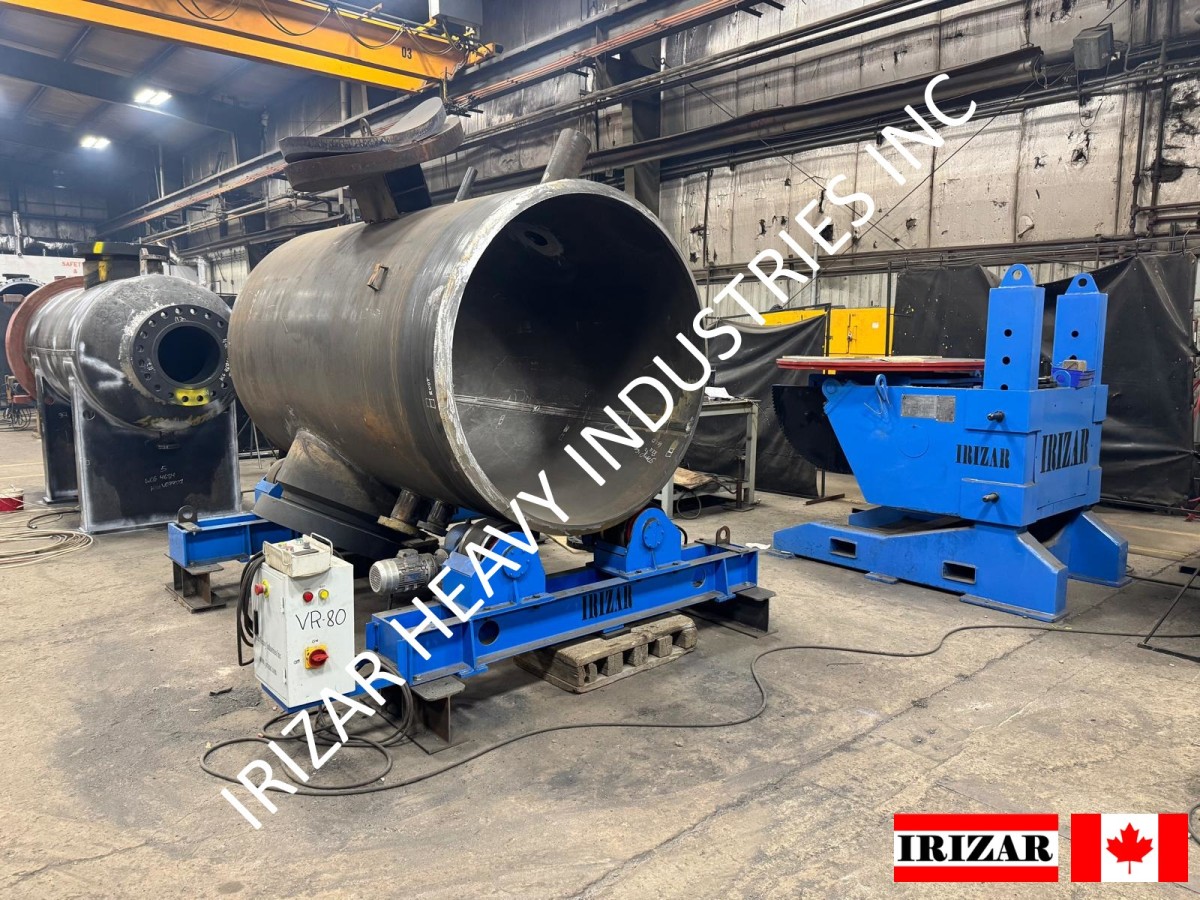

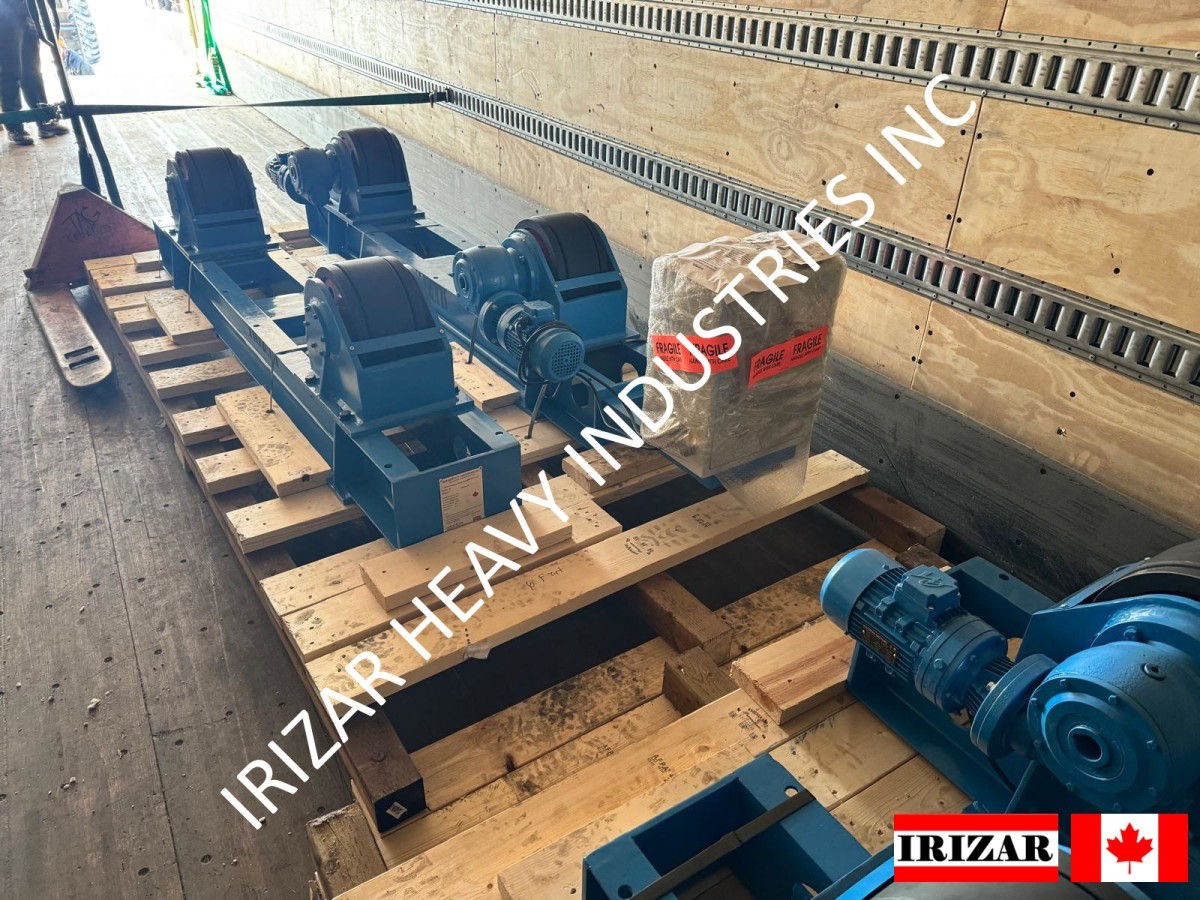

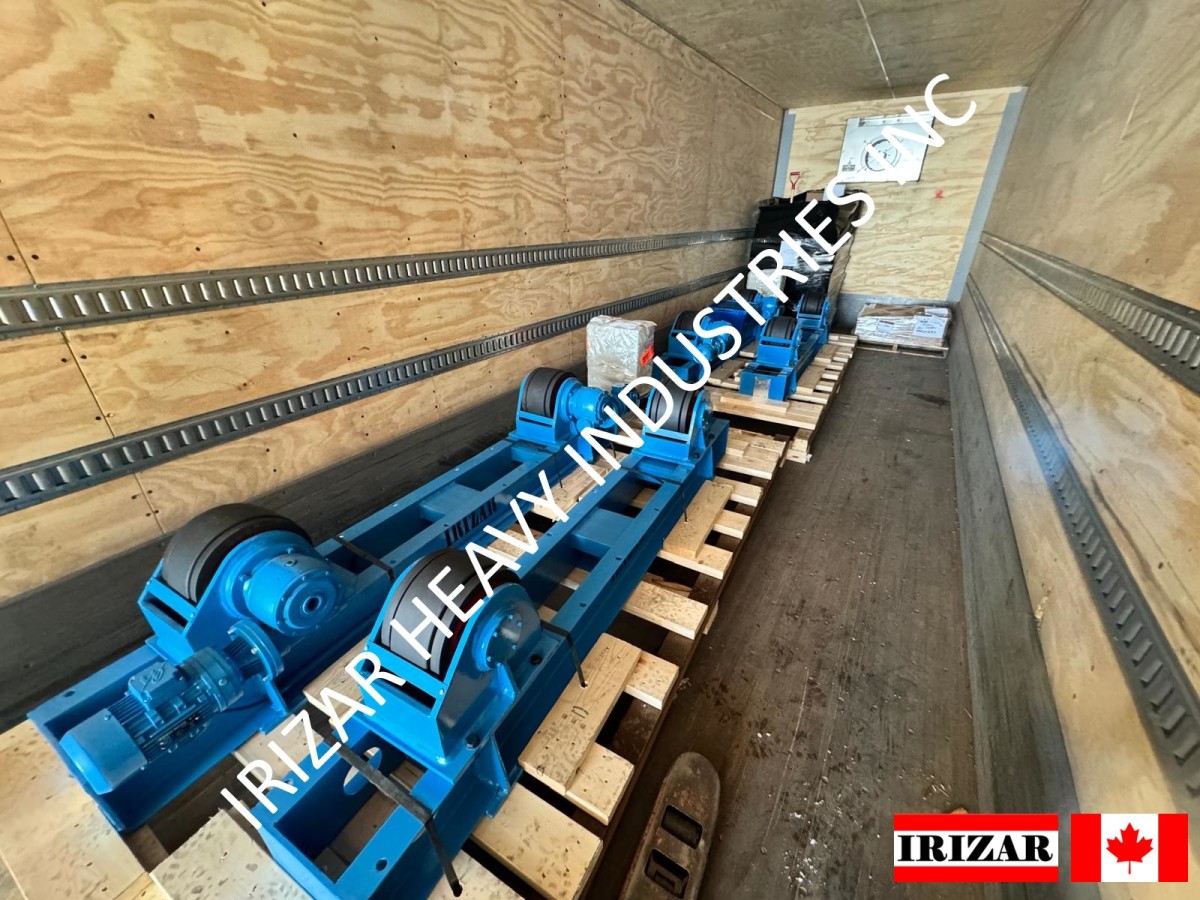

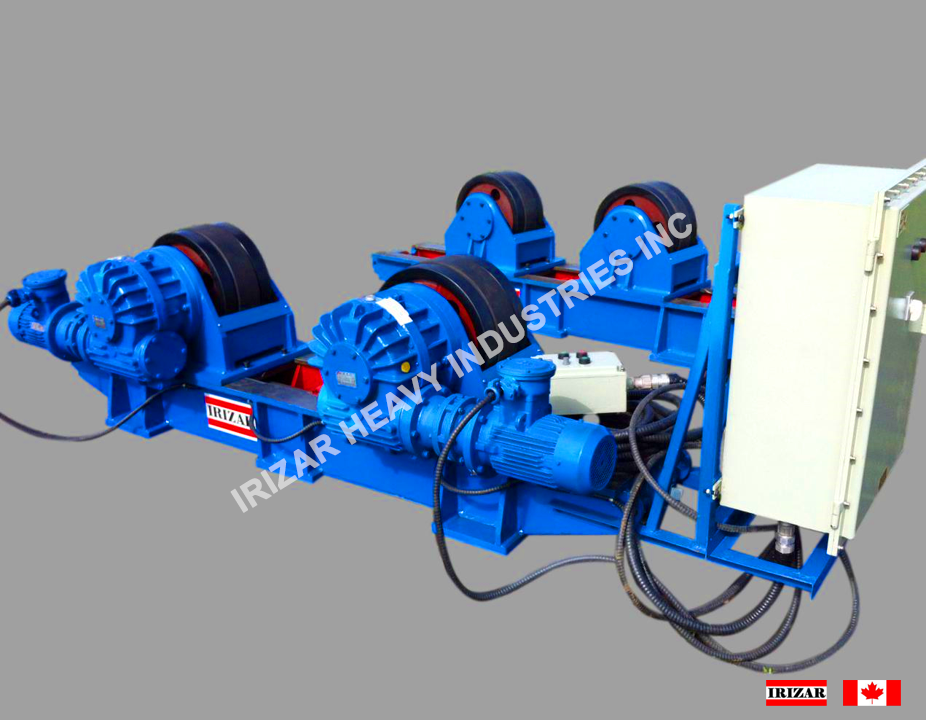

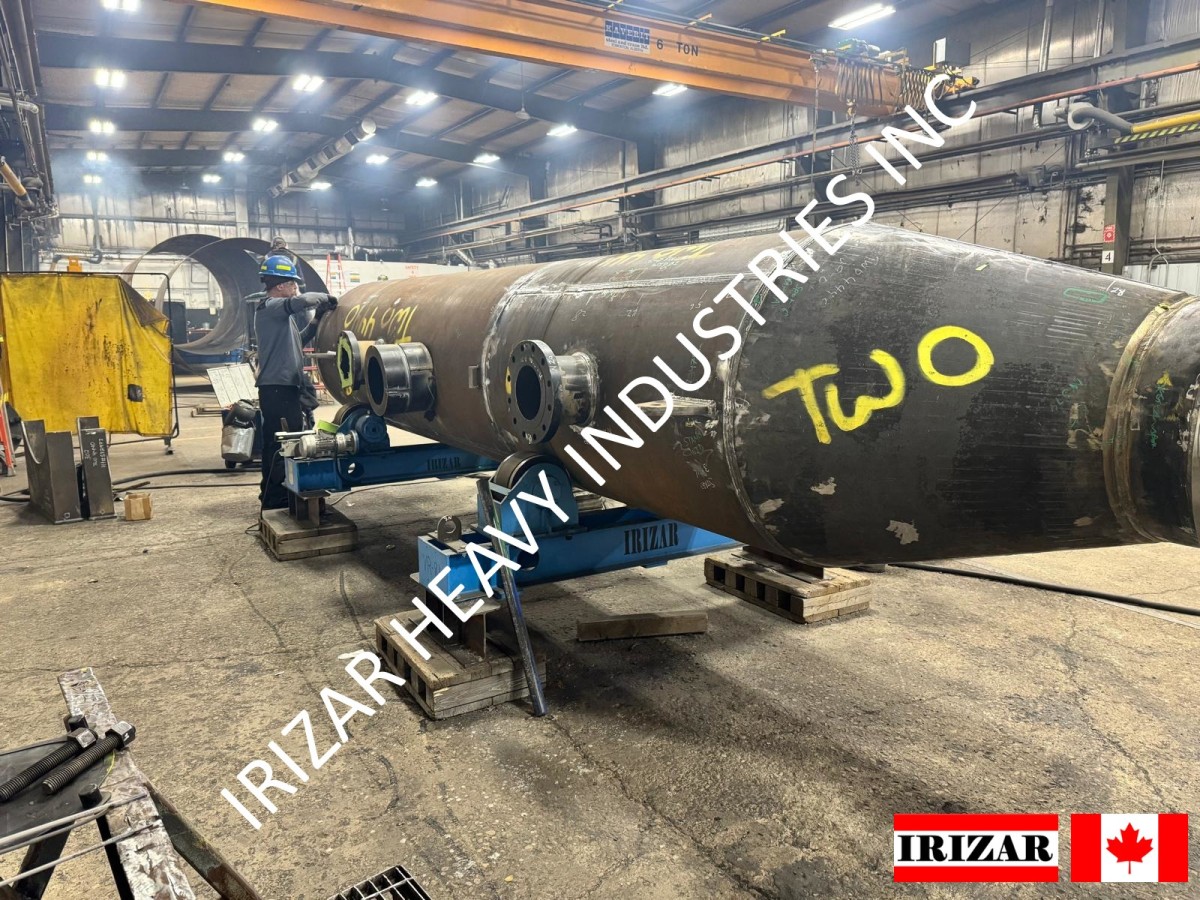

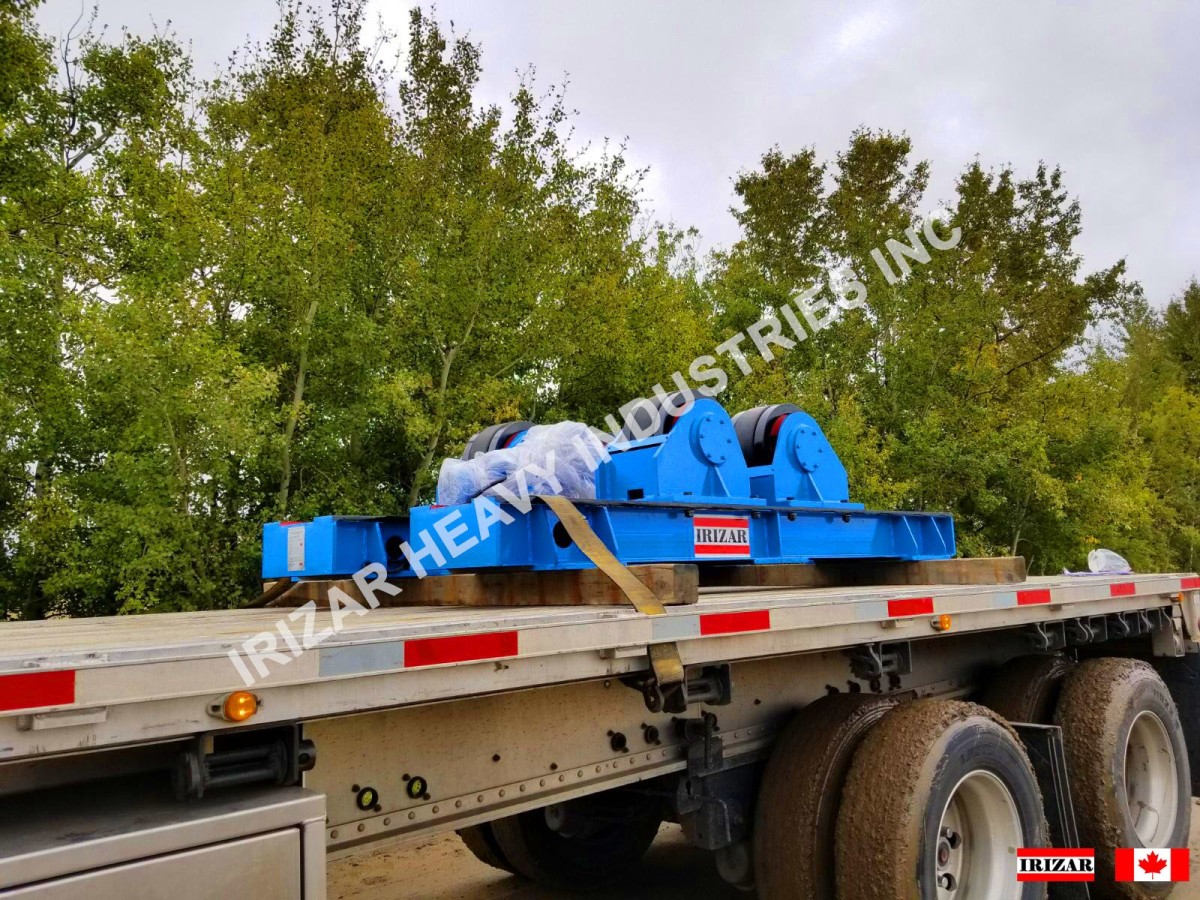

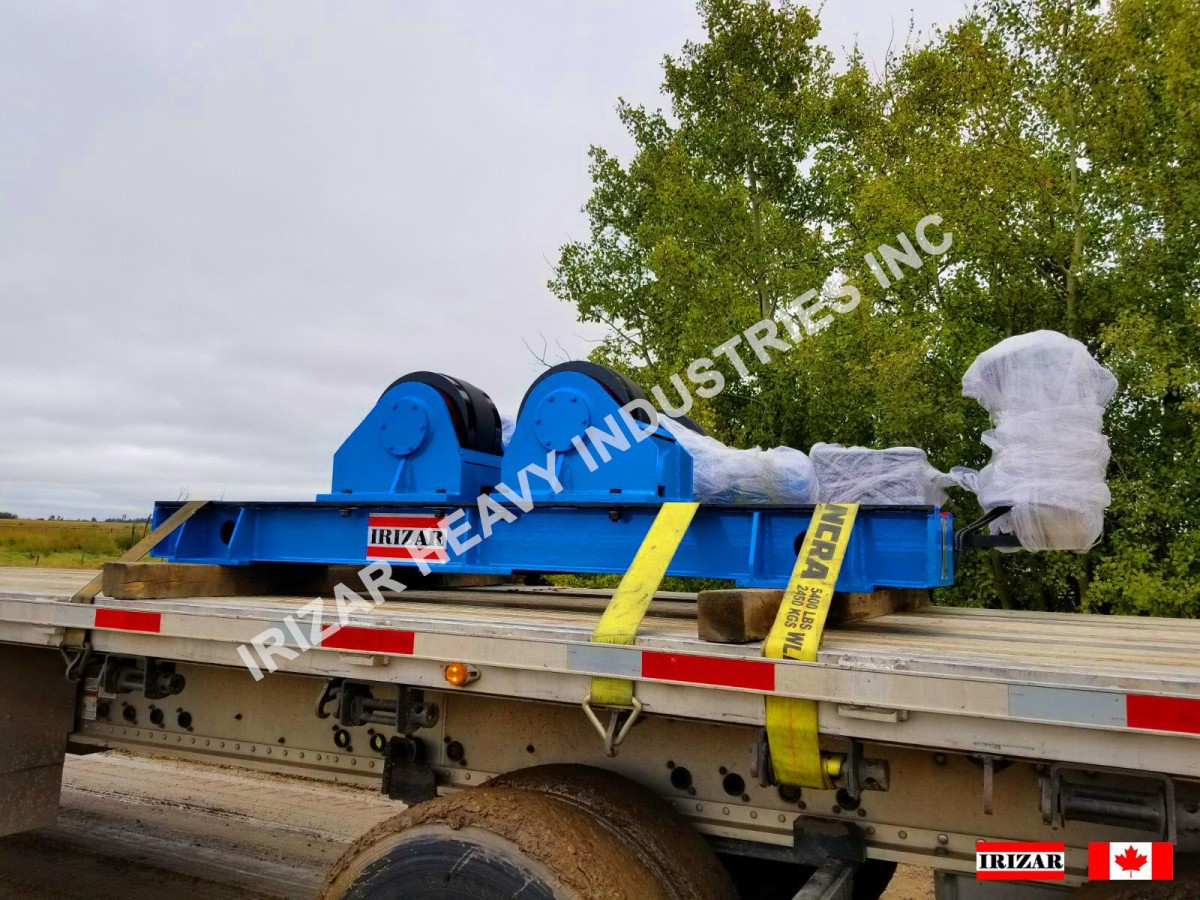

Gallery
Specifications
Power Rotator Max Rotation Capacity: 5 MT
Power Rotator Max Load Capacity: 2.50 MT
Idler Rotator Max Load Capacity: 2.50 MT
Vessel Diameter Range: From 150 mm up to 3,200 mm
Variable Speed: From 100 up to 1,000 mm/minute
Remote Control Box with 12 m cable:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Power: 0.37 kW @ 2
Wheel Diameter: 250 mm
Wheel Width: 140 mm
Estimated Weight: 0.80 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
