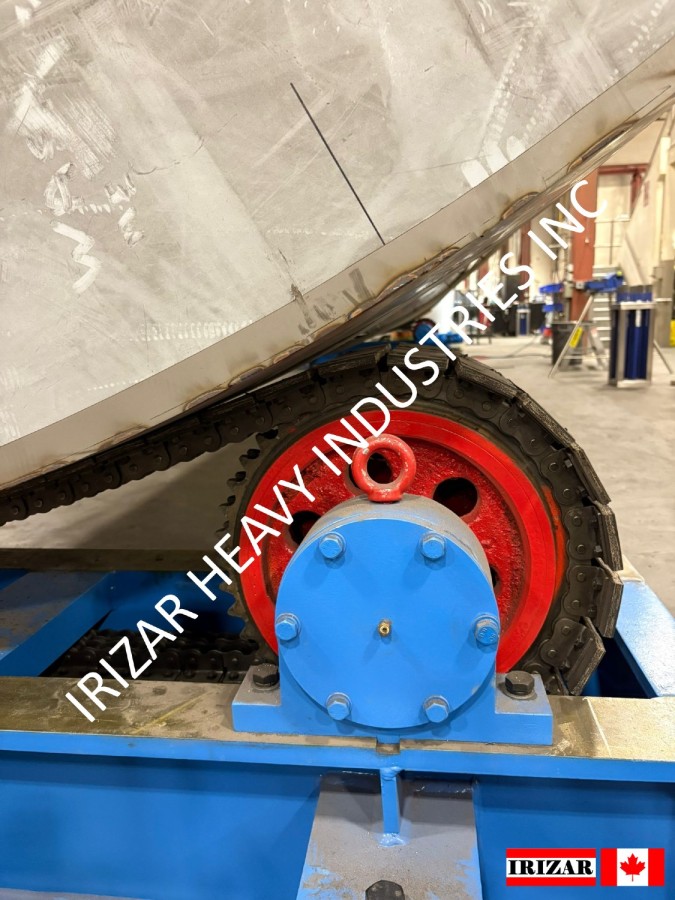

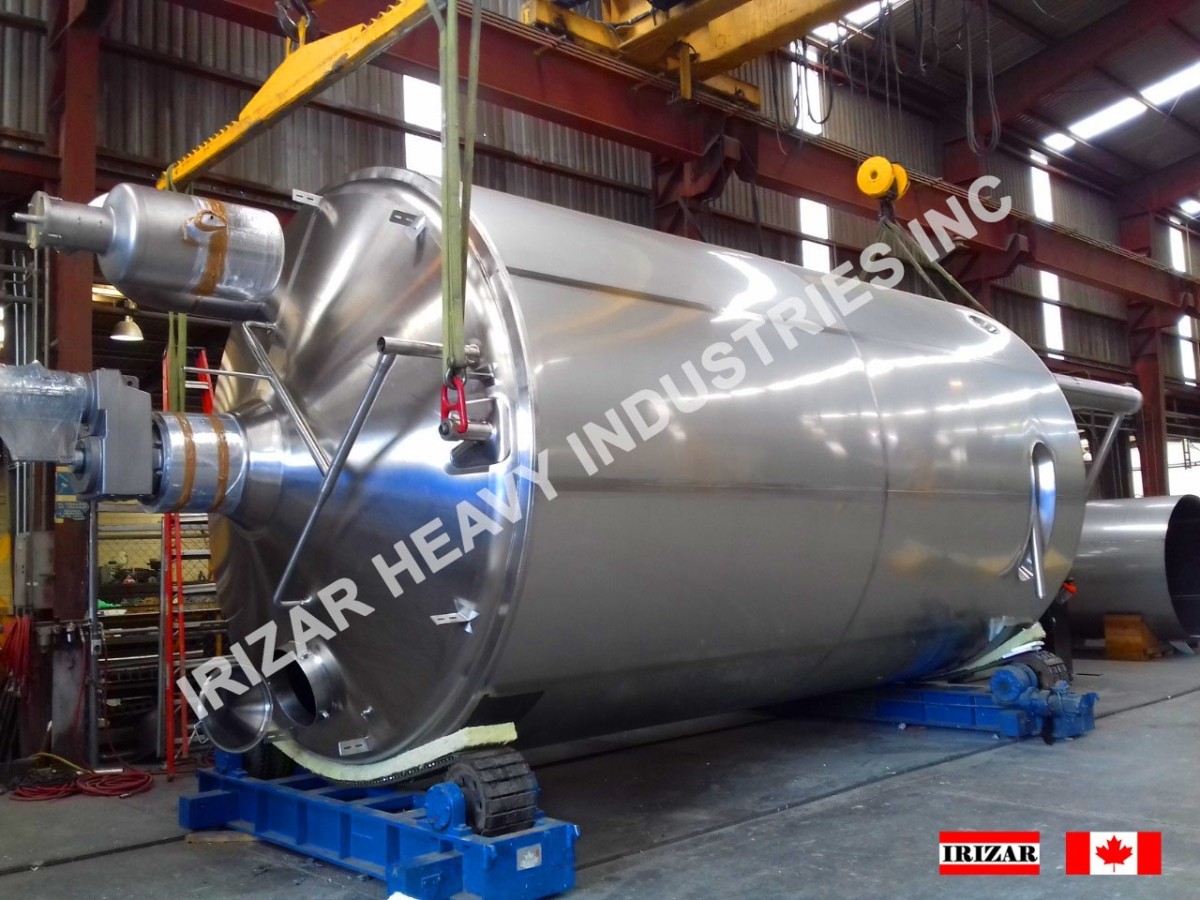

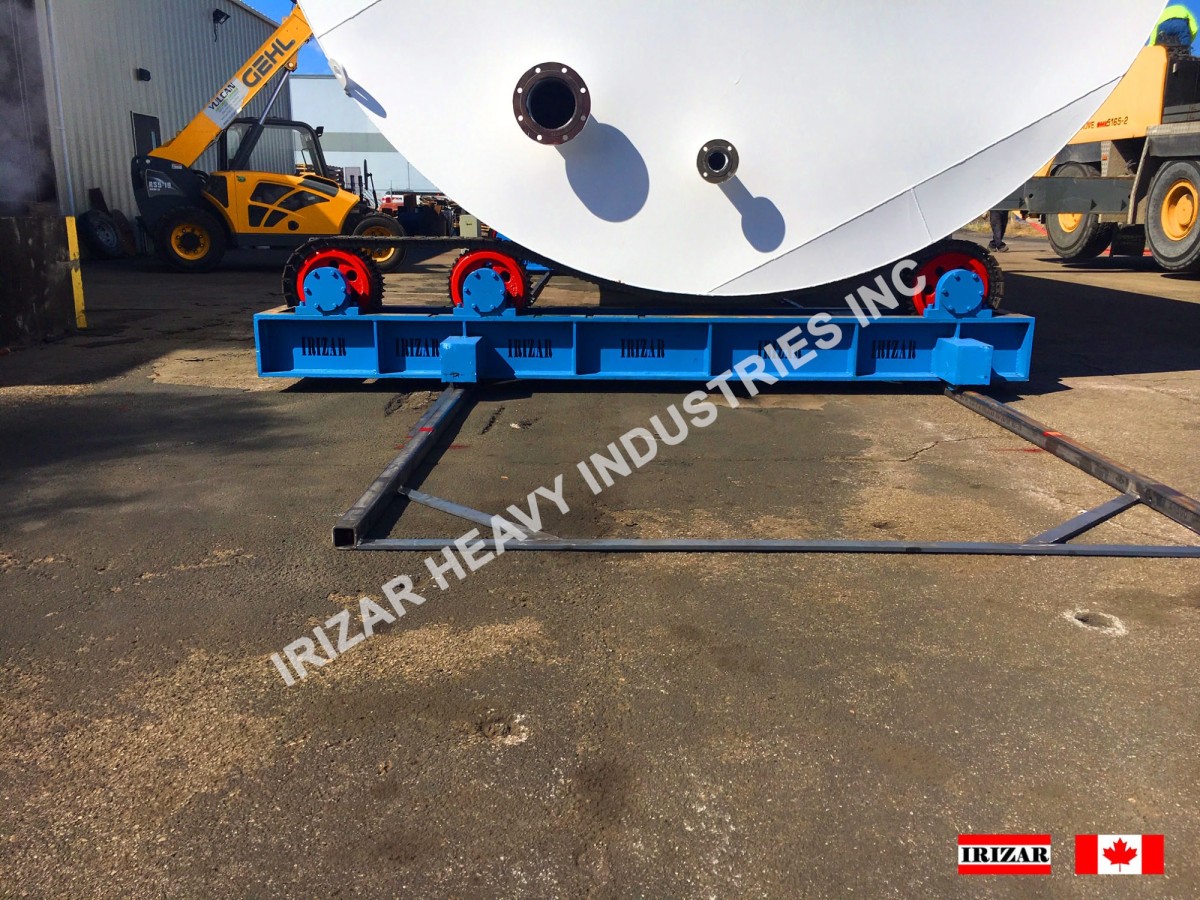

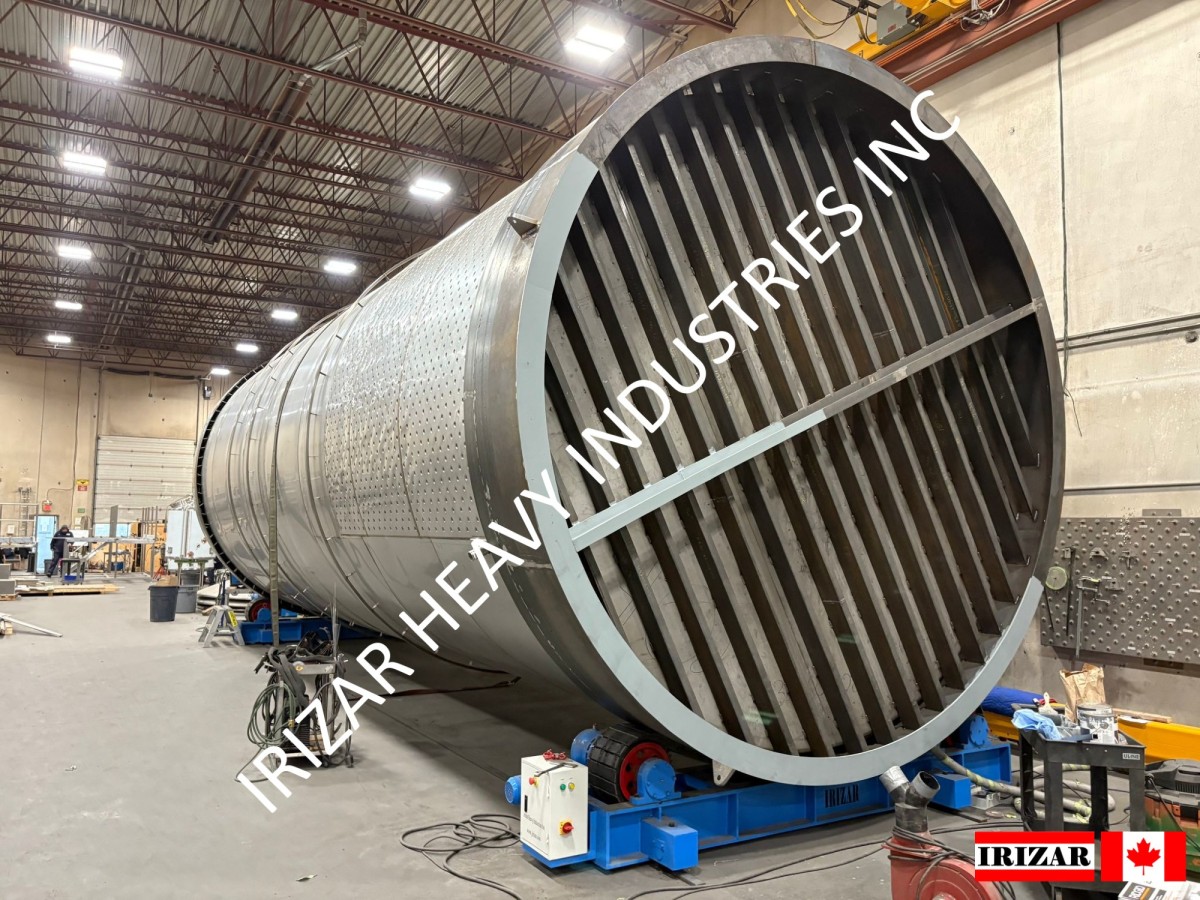

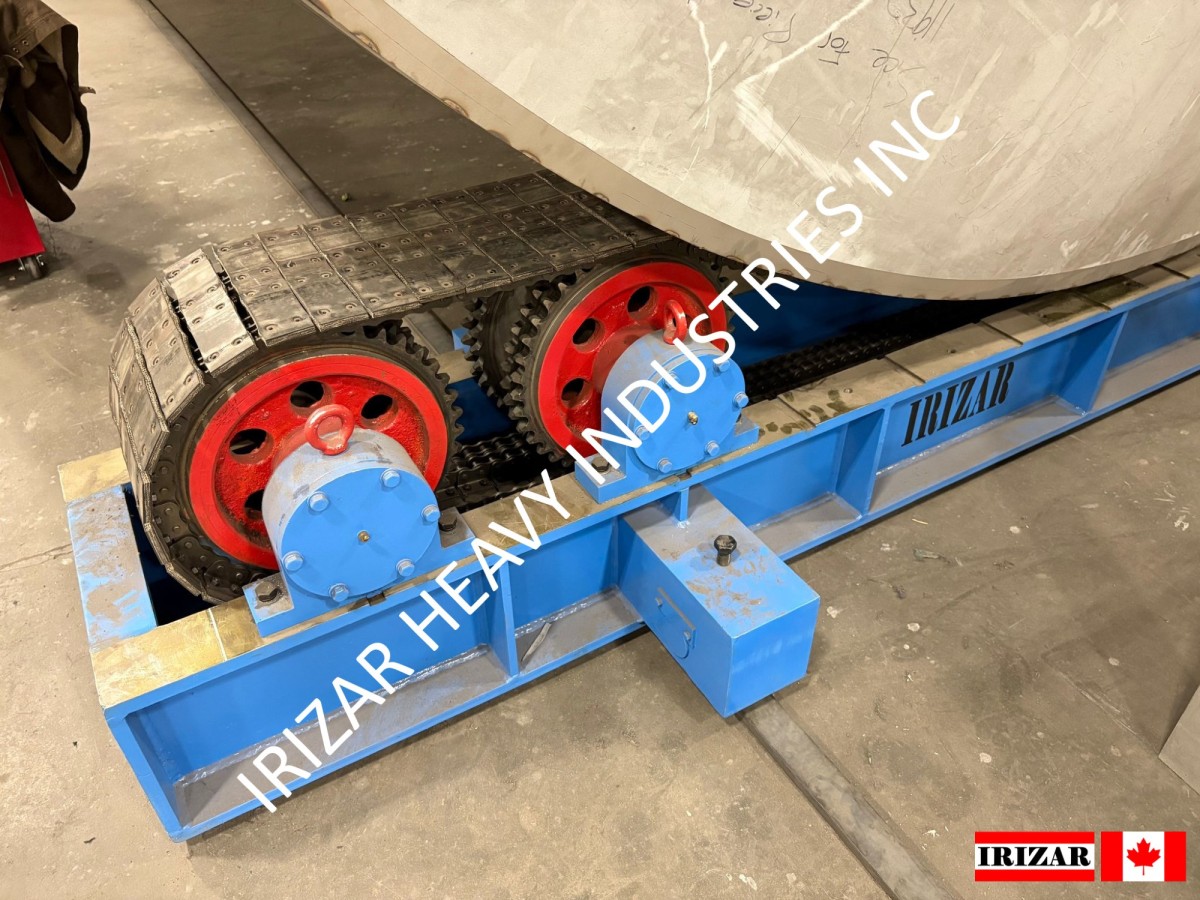

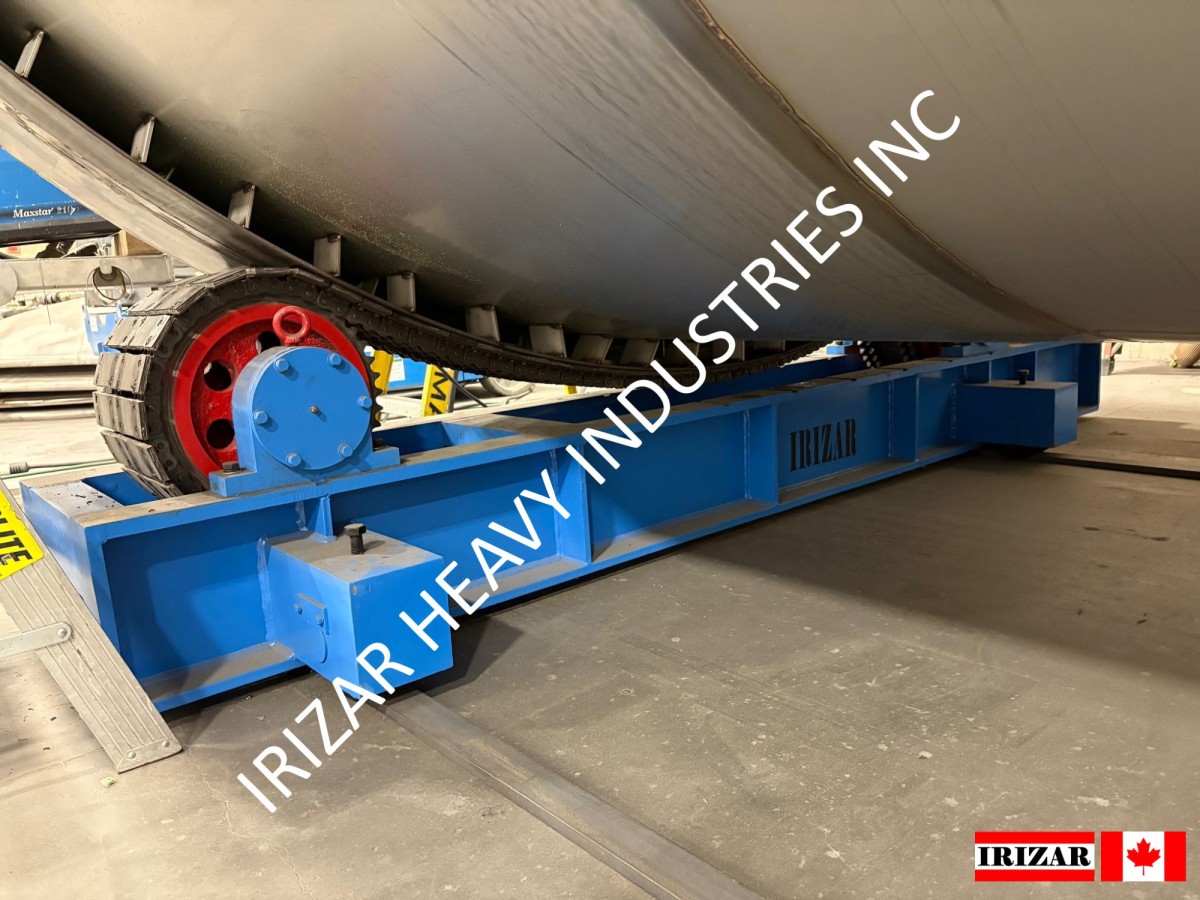

Track Welding Rotators are essential for constructing vessels with thin-walled stainless steel or aluminum. They are commonly found in brewing, dairy, cosmetics, and pharmaceutical industries. The vessels are placed on a track covered with heavy-duty rubber, which prevents surface indentations from the roller’s wheels. Some customers have reported successfully using our rollers to weld vessels with a 5.0 m diameter and a 2.5 mm wall thickness.
Available in Stock: TWR 5 and TWR 20
Gallery
Specifications
Power Rotator Max Load Capacity: 10.0 MT
Idler Rotator Max Load Capacity: 10.0 MT
Vessel Diameter Range: From 1,000 mm up to 5,000 mm
Variable Speed: From 100 up to 1,000 mm/minute
Remote Control Box: Forward/Stop/Reverse/Variable
speed with digital display in mm/min
Bogies on frame: Idlers
Power: 1.50 kW @ 2
Wheel Diameter: 420 mm
Wheel Width: 240 mm
Idler Bogies on rollers: Included
Track covered with heavy-duty rubber: Included
Center to center between bogie wheels: 2,350 mm
Rail: Not included
Estimated Weight: 3.50 MT
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
