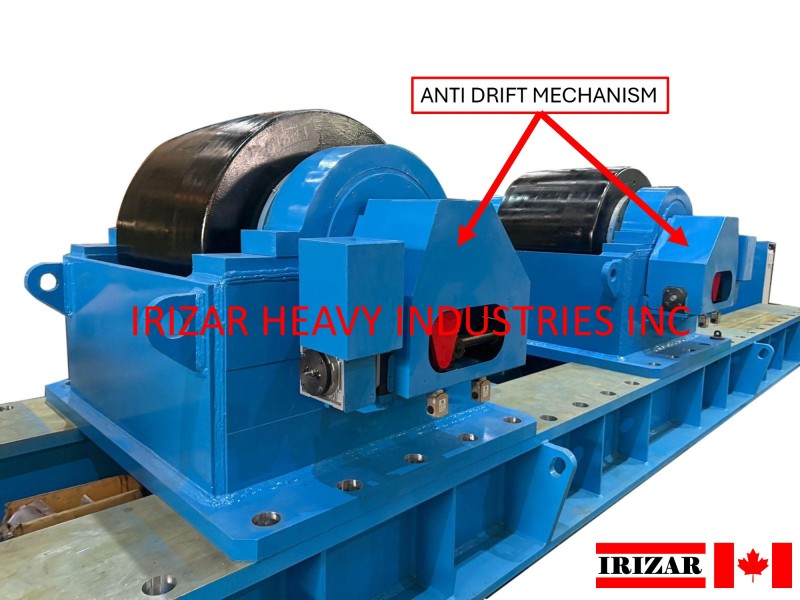

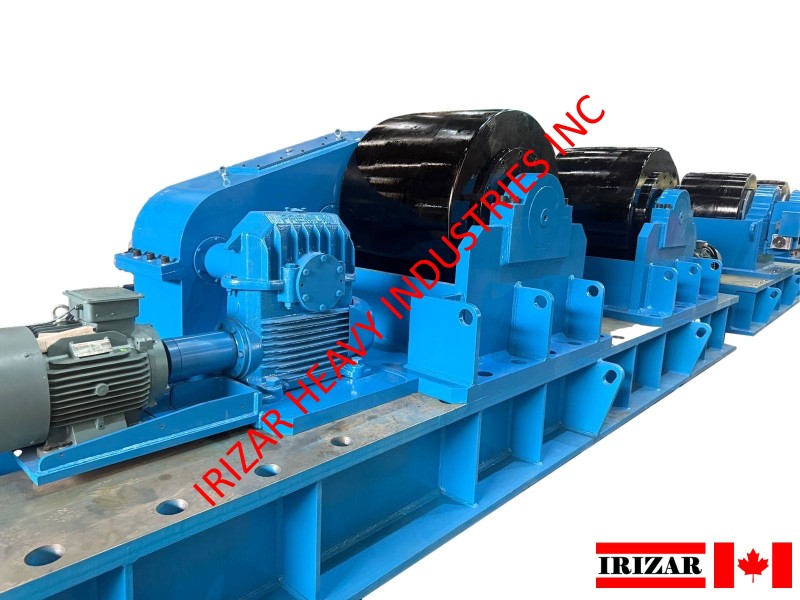

Irizar AD-WR 2500 Anti-Drift Turning Rolls are 2500 MT capacity welding rotators designed to support, position, and rotate tanks, pressure vessels, and other cylindrical workpieces while minimizing longitudinal movement during rotation. This movement, commonly known as the screw effect or vessel drift, can occur during welding and fabrication operations. The automatic anti-drift system uses a PLC and sensor-controlled system to continuously correct the position of the workpiece and maintain longitudinal drift within ±3.0 mm.

Our Anti-Drift Turning Rolls available in stock:  100 | 800 | 1200 | 2500 MT.
Available upon request: 150 | 250 | 400 | 600 | 1000 | 1600 | 2,000 MT.

Available in Stock: The world's largest 2,500 MT capacity anti-drift welding rotator.



Gallery

Video



Specifications

Power Rotator Max Rotation Capacity: 2,500 MT
Power Rotator Max Load Capacity: 1,250 MT
Idler Rotator Max Load Capacity: 1,250 MT
Vessel Diameter Range: From 2,000 up to 12,000 mm
Rotation Variable Speed: From 125 up to 1,250 mm/minute
Anti-Drift Precision: ± 3.0 mm
Power: 24.0 kW @ 2 + 30 kw
Wheel Diameter: 1100 mm
Wheel Width: 800 mm
Estimated Weight: 90.0 MT
Warranty: One year
Operation Manual & Electric Diagram: Included



Delivery Time

Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
