Irizar PR 1 Pipe Rotators are 1 MT capacity pipe welding rotators designed to support, position, and rotate pipes and other cylindrical workpieces during welding, fabrication, assembly, and inspection. The PR 1 includes one power rotator and one idler rotator, providing a combined maximum loading and rotation capacity of 1 MT (2,200 lbs).
Irizar Pipe Rotators provide variable-speed rotation and are supplied as a complete set consisting of one power rotator and one idler rotator. Their compact and heavy-duty design makes them well suited for pipe fabrication shops, production lines, and automated or manual welding applications.

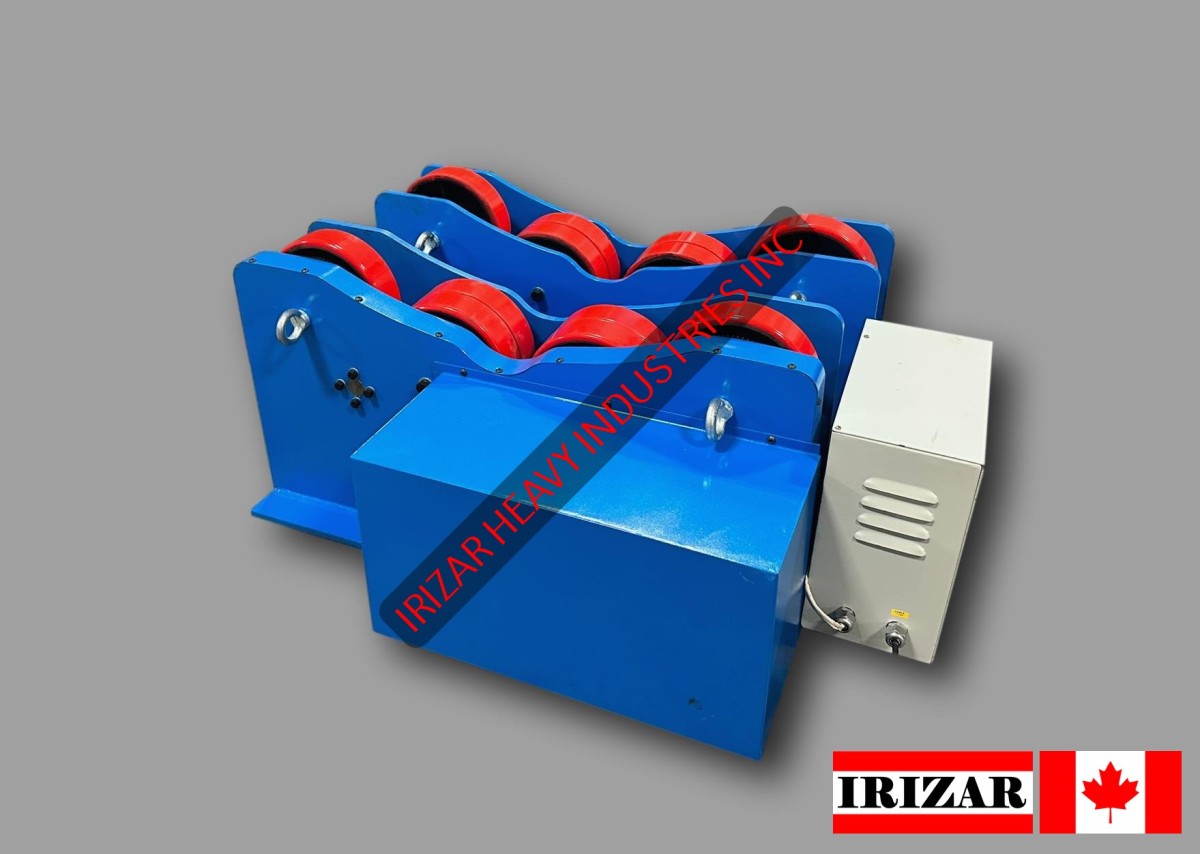

Our Pipe Rotators are available in capacities of 1 MT, 3 MT, and 5 MT
Including: PR 1 | PR 3 | PR 5
Specifications
- Load and rotation capacity: 1 MT
- Pipe Diameter Range: From 20 up to 1,000 mm
- Variable Speed: From 80 up to 2,400 mm/minute
- Control Box: Forward/Stop/Reverse/Speed Adjustment
- Foot Control Pedal
- Electric Input Power: 110 V, 50/60 Hz, 1P
- Power: 0.18 kw
- Roller Wheels: PU cover
- Wheel Diameter: 200 mm
- Wheel Width: 50 mm
- Estimated Weight: 65 Kilos
- Warranty: One year
- Operation Manual: Included
- Electric Diagram: Included
Gallery
Delivery Time
Canada: 3–5 business days
USA & U.S.–Mexico Border: Approximately 1 week
Latin America: Approximately 4 weeks
Worldwide: Approximately 5–6 weeks
