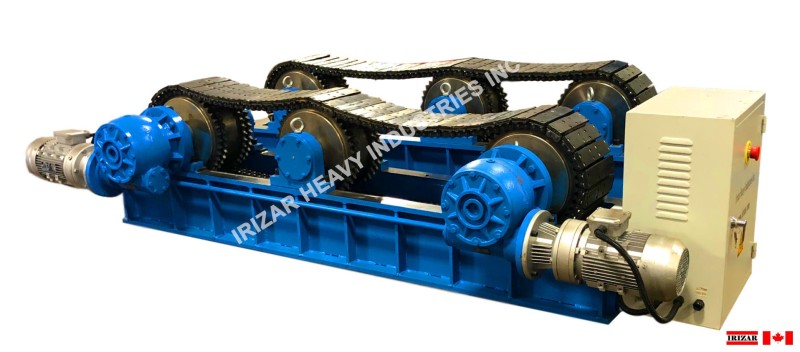

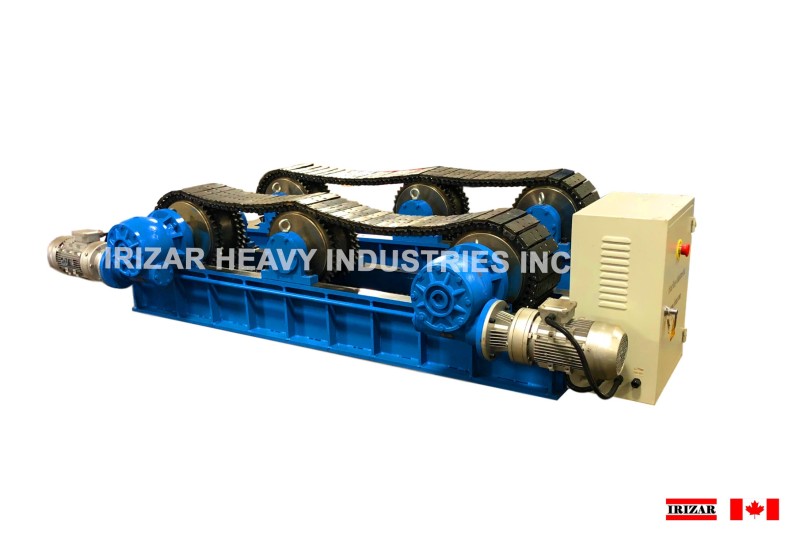

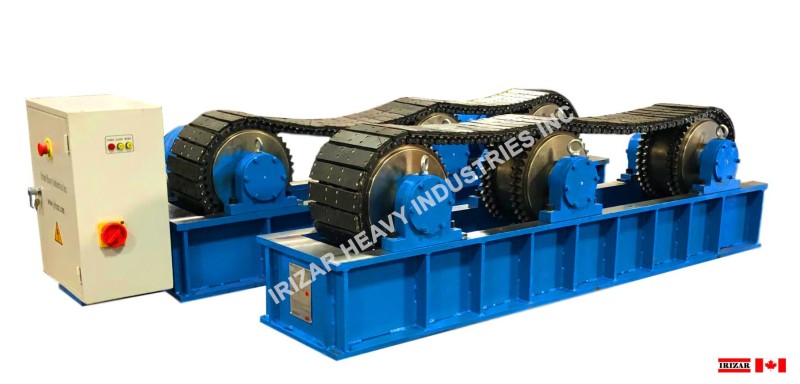

Track Welding Rotators are used to construct light gauge vessels made of stainless steel or aluminum, which are common in the brewing, dairy, cosmetic, and pharmaceutic industries. Track Rollers sit the cylindrical workpiece on a long bed covered with heavy-duty rubber. This prevents the vessel from surface indentations produced by the contact between a light gauge vessel and the conventional rollers' wheels.



Specifications:

Power Rotator Max Rotation Capacity: 5 MT
Power Rotator Max Load Capacity: 2.50 MT
Idler Rotator Max Load Capacity: 2.50 MT
Vessel Diameter Range: From 500 mm up to 2,500 mm
Variable Speed: From 150 up to 1,500 mm/minute
Remote Control Box:
Forward/Stop/Reverse/Variable speed adjustment with digital display in mm/min
Fixed base: No bogies
Track covered with heavy-duty rubber: Included
Power: 0.37 kw @ 2
Wheel Diameter: 320 mm
Wheel Width: 150 mm
Estimated Weight: 1.50 MT
Warranty: One year
Operation Manual & Electric Diagram: Included





 Delivery Time:


Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
