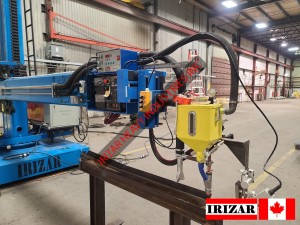

The Seam Tracker is used for automatic positioning (moving) the welding head up/down and left /right on a welding manipulator. It has a 100 kilos load capacity @ 12” G.C. with a stroke of X & Y axis of 200 mm each and accuracy of ±0.25 mm. Used on applications for Submerged Arc Welding (SAW) & Flux Cored Arc Welding (FCAW), improving quality and consistency while reducing operational costs. Welding Seam Tracker, also known as Welding Seam Tracking and Weld Tracking.


 Description  Seam Tracker Model 100
 Max Loaded Capacity  100 kg @ 12” G.C.
 Weight  70 kg
 Slide Stroke  X & Y axis. 200 mm each
Slide Speed 170 mm/min
Accuracy ±0.25 mm
Welding Method Submerge Tandem
Motors Style DC Precision Motors
Electrical Power AC220V, 1P, 50/60hz, 2A


The following items are included: Left/Right Cross Slide, Up/Down Cross Slide, Main Controller, Probe Bracket, Probe and Welding Shield. Note: Brackets for mounting the Irizar Seam Tracker Model 100 are not included.

Video: Seam Tracker



Delivery Time:


Within Canada: Three to five business days
World-Wide: One to two weeks
